Quadro-Secura® Nova 2
- Multi-section house entry Sealing on both sides
- Use in on-site casing pipe or WU concrete core drilling (white tank)
- for the gas, water, electricity and telecommunications trades
Quadro-Secura® Nova 2
added to
.
Quadro-Secura® Nova 2
removed from
.
Technical details
- DVGW and SVGW approved
- Gas and pressurized water-tight
- Radon-tight - in accordance with FHRK leaflet MB 101, meets the requirements for radon precautionary areas
- Methane gas resistant
- Dry installation
- Optional installation according to DIN18533 possible
- 100% separation of trades, each section is sealed separately
- Variable arrangement of the individual sections possible
- The entire component can be freely rotated according to the connection requirements
- Relining possible when connecting casing pipes
- Connection option for rigid or flexible DN 75 casing pipes, larger or smaller diameters possible via extension sleeves or reducers
- All trades are pre-assembled with gas and pressurized water-tight blanking plugs
Areas of use
- Multi-section house entry Sealing on both sides
- Use in on-site casing pipe or WU concrete core drilling (white tank)
- for the gas, water, electricity and telecommunications trades
Product benefits
- Corrosion-free and electrically non-conductive
- Installation without torque wrench
- stepless module seals for water and energy
- Simple assignment of the trade seal thanks to symbol marking
Media
skip
-

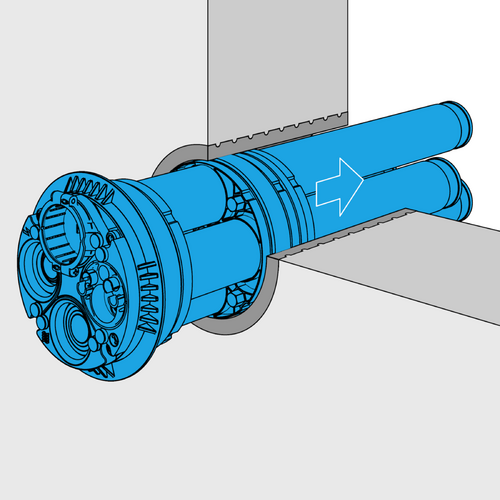

Installation situation
Example Installation of Quadro-Secura® Nova 2
