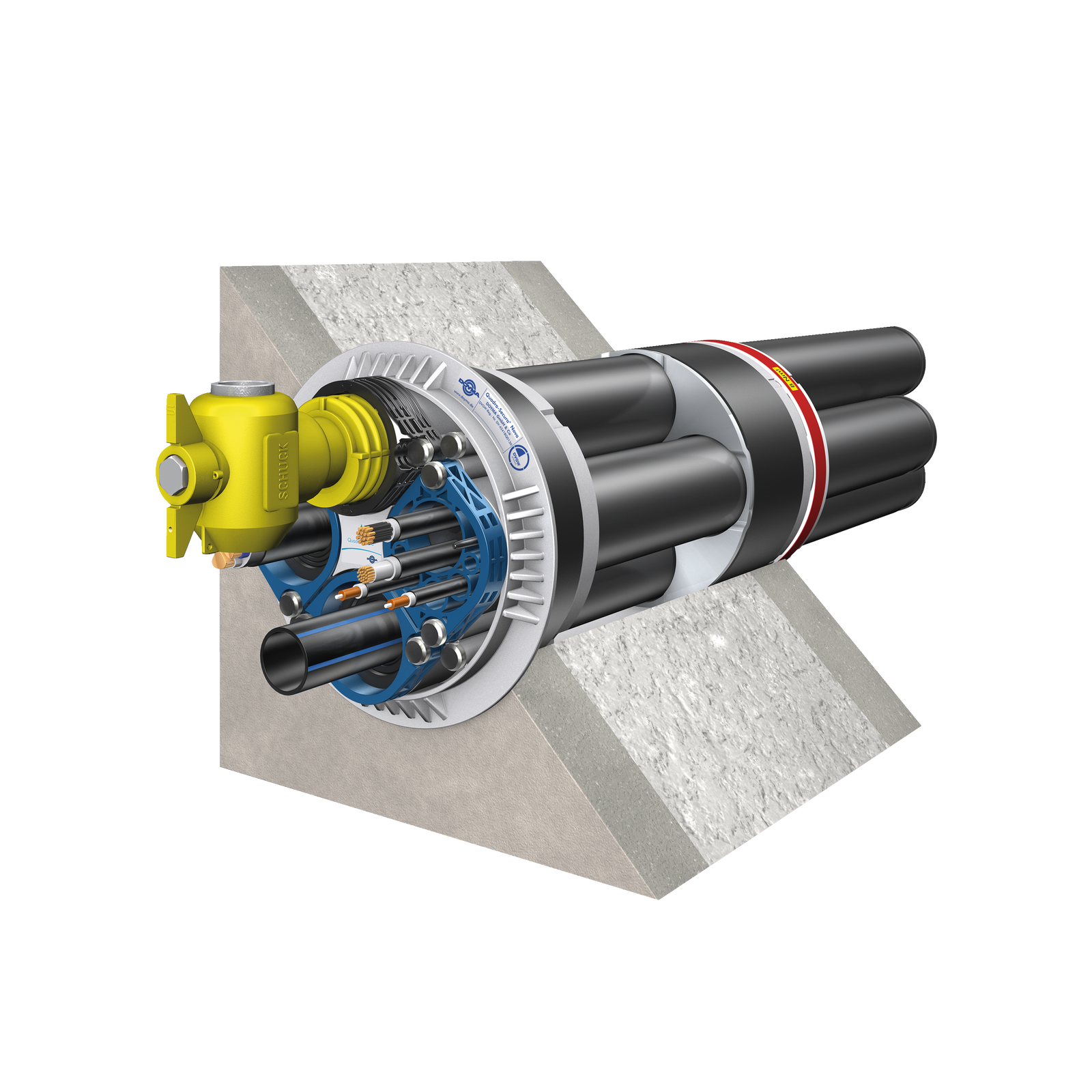

Quadro-Secura® Nova 2/breit
- Multi-section house entry Sealing on both sides
- Use in on-site casing pipe or WU concrete core drilling (white tank)
- Trades: gas, water, electricity and telecommunications
- Ideal for Double/element walls
Quadro-Secura® Nova 2/breit
added to
.
Quadro-Secura® Nova 2/breit
removed from
.
Technical details
- DVGW approved
- Gas and pressurized water-tight
- Radon-tight - in accordance with FHRK leaflet MB 101, meets the requirements for radon precautionary areas
- Dry installation
- 100% separation of trades, each section is sealed separately
- Variable arrangement of the individual sections possible
- The entire component can be freely rotated according to the connection requirements
- Relining possible when connecting casing pipes
- Rigid or flexible DN 75 casing pipes can be connected; larger or smaller diameters possible via extension sleeves or reducers
- All trades are pre-assembled with gas and pressurized water-tight blanking plugs
- Suitable for double/element walls
Areas of use
- Multi-section house entry Sealing on both sides
- Use in on-site casing pipe or WU concrete core drilling (white tank)
- Trades: gas, water, electricity and telecommunications
- Ideal for Double/element walls
Product benefits
- Corrosion-free and electrically non-conductive
- Installation without torque wrench
- stepless module seals for water and energy
- Simple assignment of the trade seal thanks to symbol marking
- Wide outer seal covers the prefabricated concrete shell and core concrete
Media
skip
-

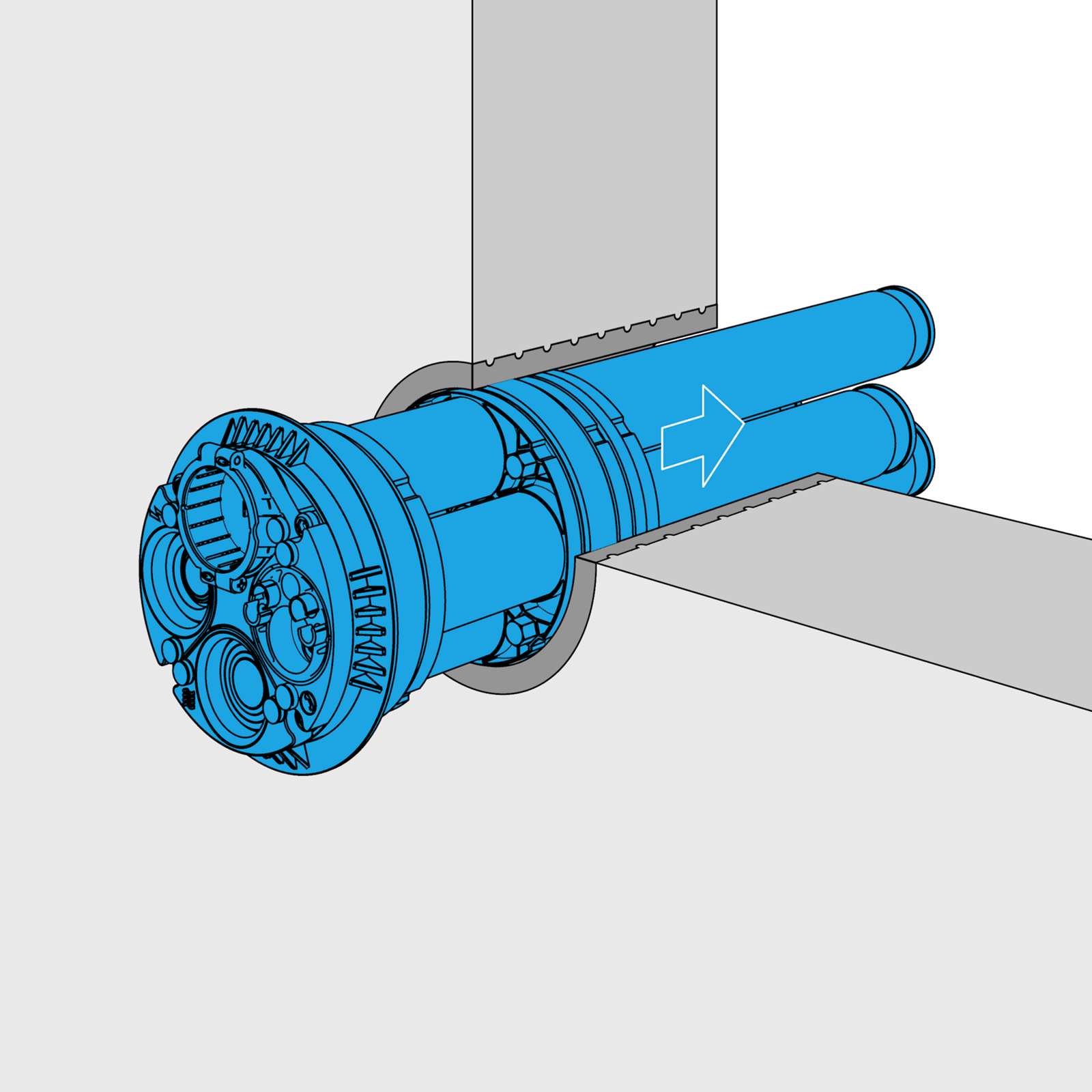

Installation situation
Example Installation of Quadro-Secura® Nova 2/breit
