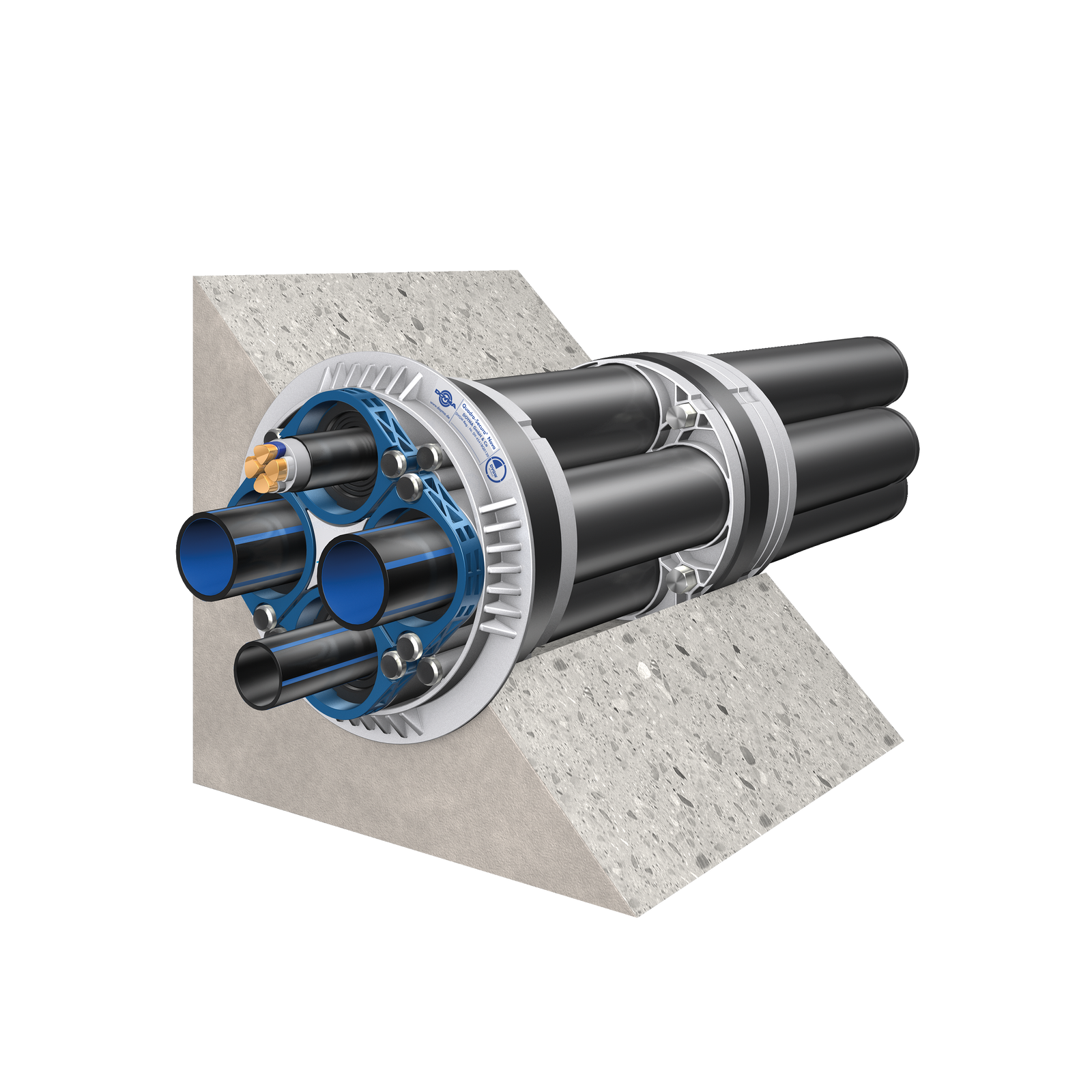

Quadro-Secura® Nova 2-M
- Multi-section house entry Sealing on both sides
- Use in on-site casing pipe or WU concrete core drilling (white tank)
- for multiple occupancy different trades
Quadro-Secura® Nova 2-M
added to
.
Quadro-Secura® Nova 2-M
removed from
.
Technical details
- DVGW approved
- Gas and pressurized water-tight
- Radon-tight - in accordance with FHRK leaflet MB 101, meets the requirements for radon precautionary areas
- Optional methane gas-resistant version available
- Dry installation
- 100% separation of trades, each section is sealed separately
- Variable arrangement of the individual sections possible
- The entire component can be freely rotated according to the connection requirements
- Relining possible when connecting casing pipes
- Rigid or flexible DN 75 casing pipes can be connected; larger or smaller diameters possible via extension sleeves or reducers
- All trades are pre-assembled with gas and pressurized water-tight blanking plugs
Areas of use
- Multi-section house entry Sealing on both sides
- Use in on-site casing pipe or WU concrete core drilling (white tank)
- for multiple occupancy different trades
Product benefits
- for multiple occupancy of individual different trades (without gas)
- Corrosion-free and electrically non-conductive
- Installation without torque wrench
- stepless module seals for water and energy
Media
skip
-
Installation situation

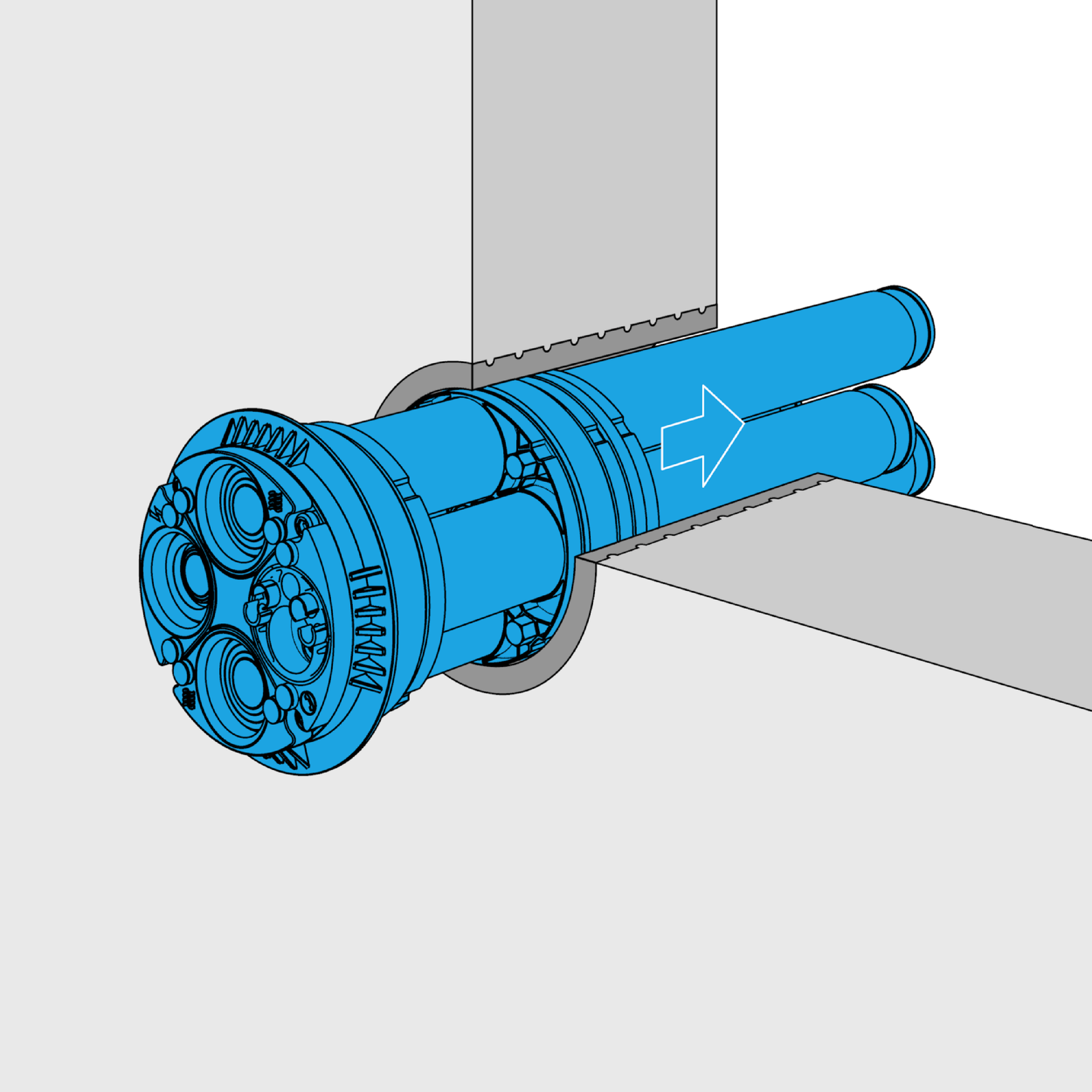

Example Installation of Quadro-Secura® Nova 2-M
