DOYMA: DOYMAfix® HP/O - above-ground heat pump inlet

With the new DOYMAfix^® HP/O, DOYMA GmbH & Co presents the first professional above-ground lead-through for air-to-water heat pumps. The DOYMAfix^® HP/O is characterized by an innovative design and guarantees the simple, fast and safe installation of connection lines for heat pumps. DOYMAfix^® HP/O can be installed in a short time and the cross-trade installation (shell construction, HVAC and electrical) creates the greatest possible flexibility in the construction process. With this unique system, DOYMA enables GEG-compliant thermal insulation to be ensured - regardless of the wall structure and thickness. DOYMAfix^® HP/O is available as a DOYMAfix^® Connect HP/O variant.

Table of contents

Product advantages

Can be used for both new and existing buildings
Secured thermal insulation - fulfillment of the GEG requirement
Aesthetic wall transition with surface finish
Universally applicable in all common wall structures

Airtight according to DIN EN 13829
Tightness against splash water, IP44 according to DIN EN 60529
Sound insulation in accordance with DIN 4109-2

To the DOYMAfix® HP/O

Cross-section of a Doymafix HP/O sealing system with multiple channels, sealing plugs, expanding foam, and modular components for sealing and separating power cables and pipes.

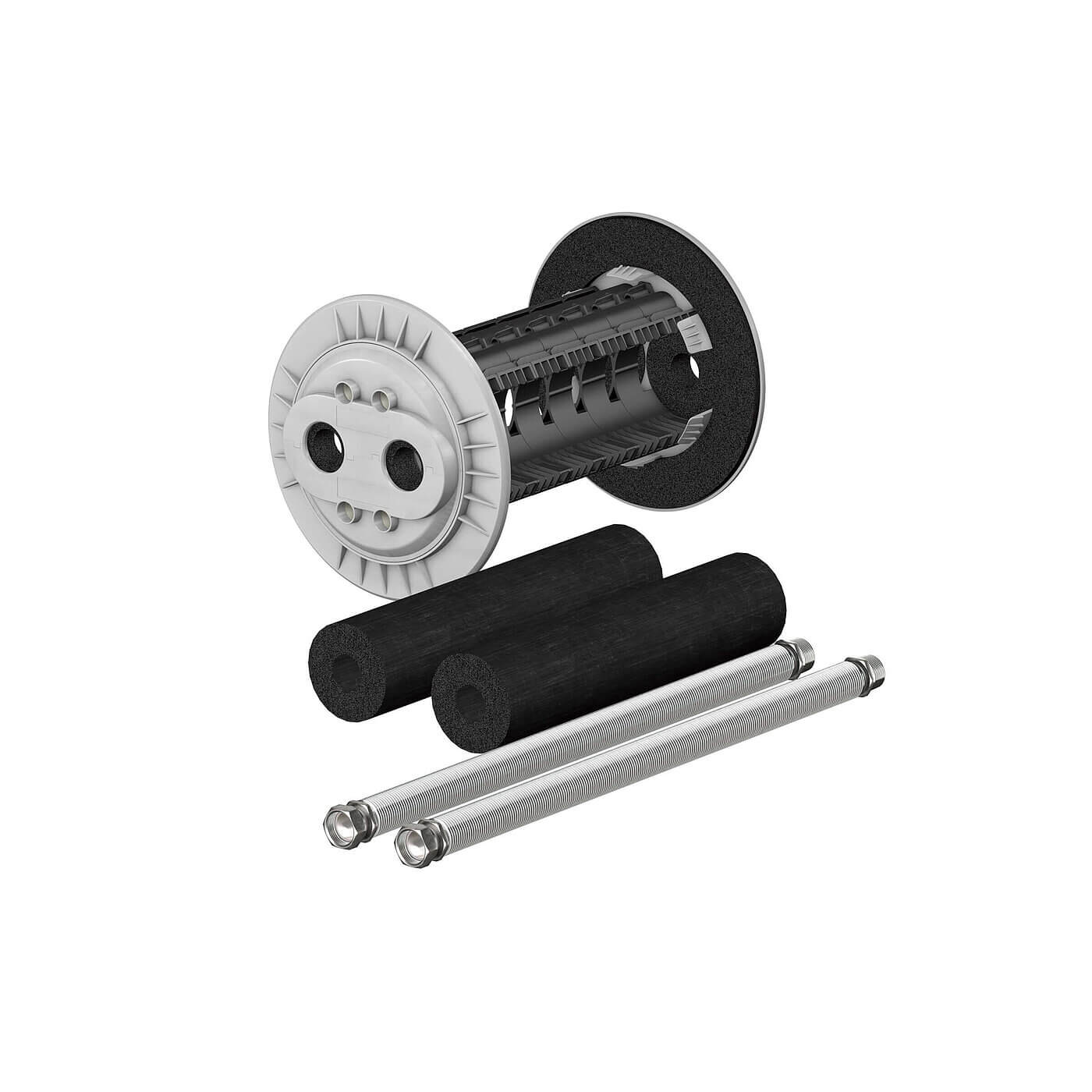

Doymafix HP/O: Plastic cylinder with white disc, two black foam sleeves, and two flexible metal tubes with screw connections.

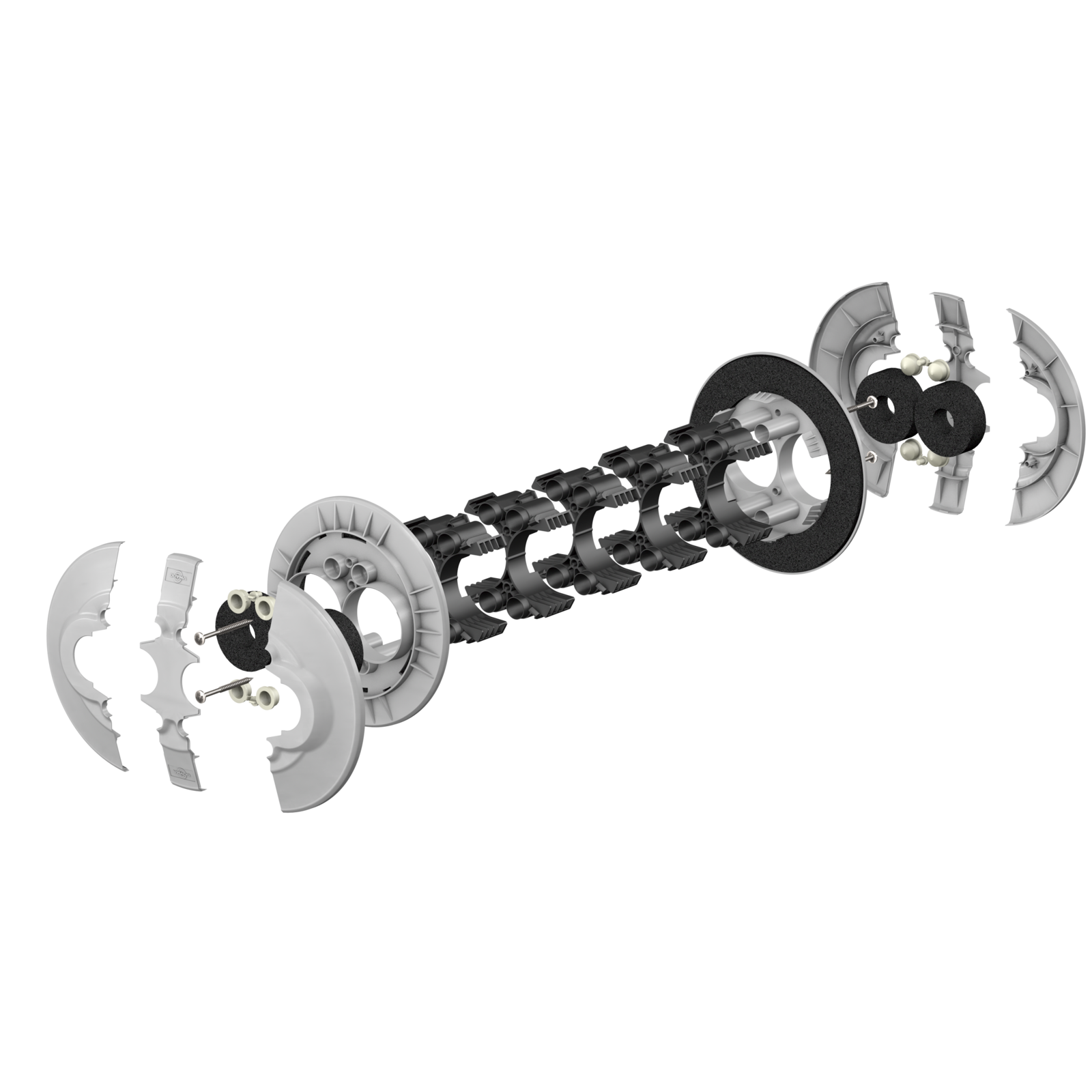

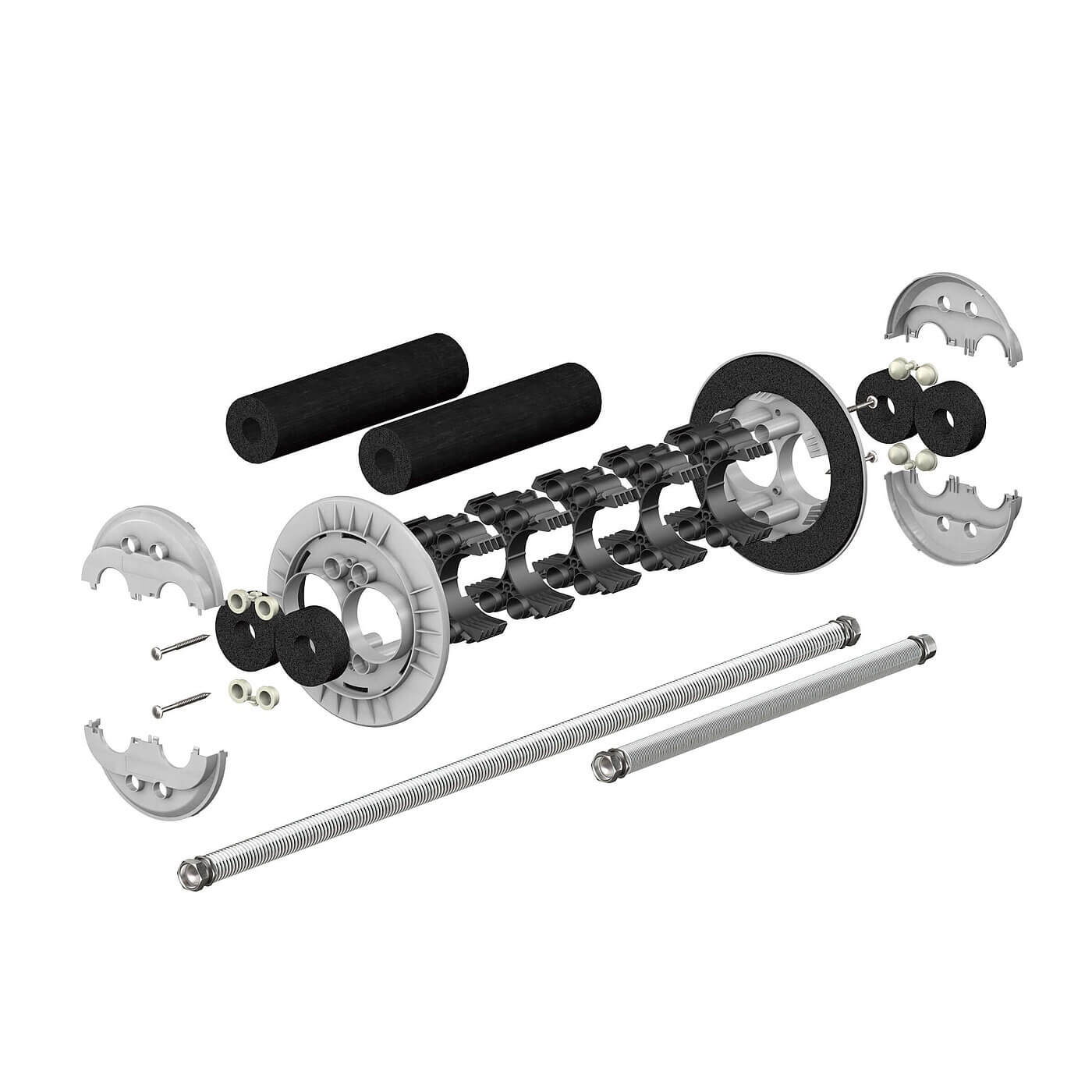

Exploded view of the Doymafix HP/O product with cylindrical black foam parts, round gray plastic discs, screws, nuts, and two long metal rods.

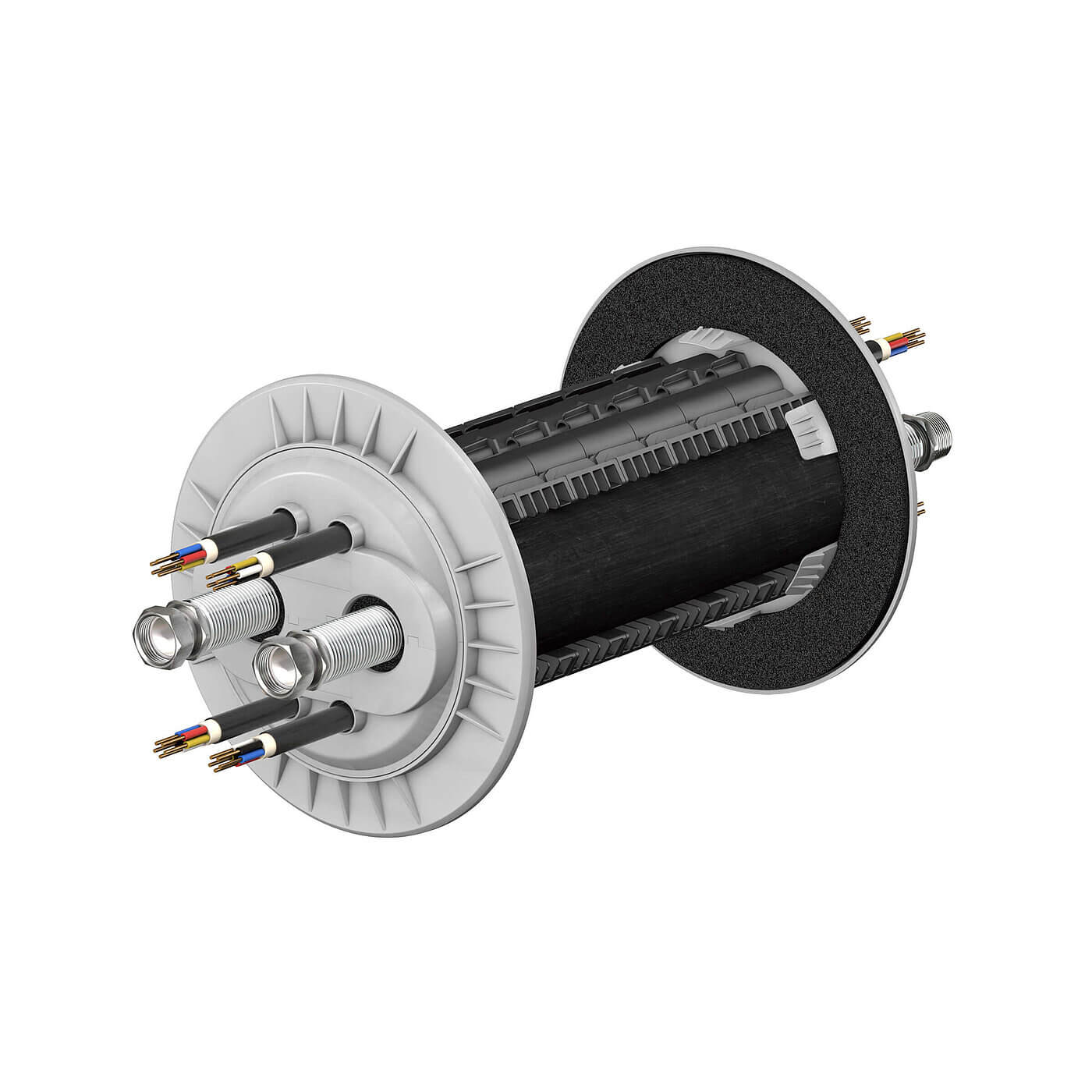

Doymafix HP/O feed-through module with multiple cables and pipes, cylindrical, with gray and black plastic parts.

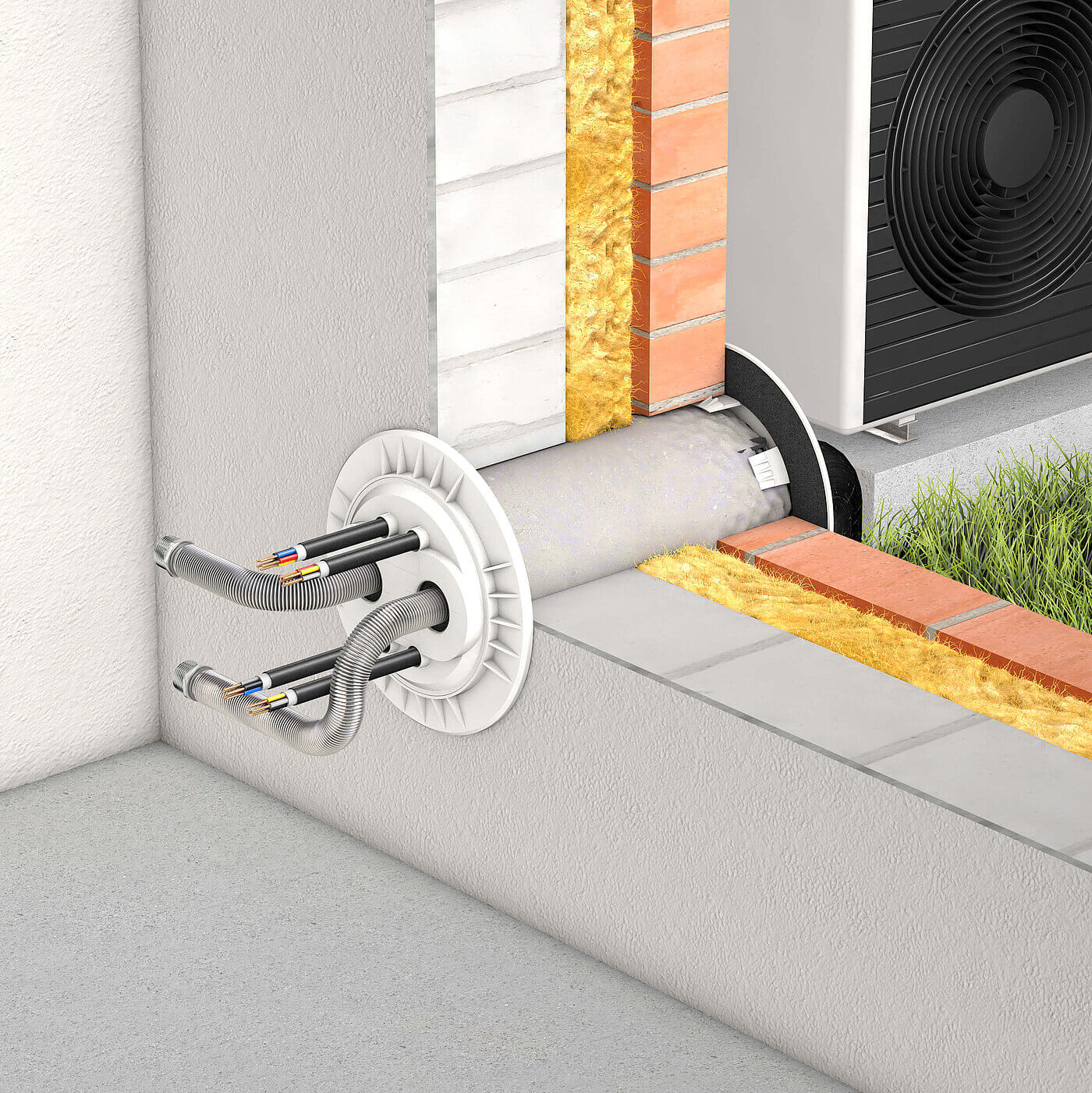

DOYMAfix Connect HP/O heat pump entry in the installation situation.

Product highlights

Quick and easy one-person installation
Installation can be carried out directly after wall completion
Separate routing of pipes and cables
Separate routing of power and control cables
Thermal separation avoids thermal bridges
Contact surface for flat connection of the 200% external insulation
Bird-proof construction
Low weight facilitates installation

We can keep up with any thickness

Also ideal for large wall thicknesses.

As supplied, the DOYMAfix^® HP/O is suitable for installation in walls with a maximum thickness of 500 mm. Thanks to the innovative intermediate segments, which are available as a set of four accessories, the product can be individually adapted to wall thicknesses of over 500 mm.

Download flyer

Doymafix HP/O pipe penetration with black plastic body, installed in two different wall cross-sections.

Circle divided into four segments with surface patterns: gray gravel, light-colored natural stone wall, smooth wooden surface, red brick wall.

For all common wall types

The installation of the above-ground introduction for heat pump systems can be carried out in all standard wall structures. This means that building owners and installers do not have to worry about the condition of their wall. What's more, the DOYMAfix^® HP/O can be installed quickly by just one person without the need for additional installation aids. It is not necessary to use a sleeve. The DOYMAfix^® HP/O can be installed directly in a core drill hole or a chiseled opening.

More information in the flyer

Accessories for the specialists

In addition to a set of four intermediate segments for individual adaptation to the given wall thickness, the DOYMAfix^® HP/O accessory range also includes a compression tape for sealing on uneven wall surfaces and a sealing set for refrigerant pipes (split). The latter replaces the existing sealing sets for water-bearing pipes (monoblock).

To the DOYMAfix^® range

Doymafix HP/O mounting kit with black plastic clamps, black sealing tape, and round black foam element in front of a green circle.

Want to stay flexible?

Also available with flexible cables:

DOYMAfix^® Connect HP/O

The new above-ground entry for heat pump systems is also available in a version with ready-to-connect, flexible corrugated stainless steel hoses and integrated thermal insulation. The DOYMAfix^® Connect HP/O is available with corrugated stainless steel hoses in DN 25 and DN 32. Both versions are equipped with a union nut and external thread on one side.

To the DOYMAfix® Connect HP/O
