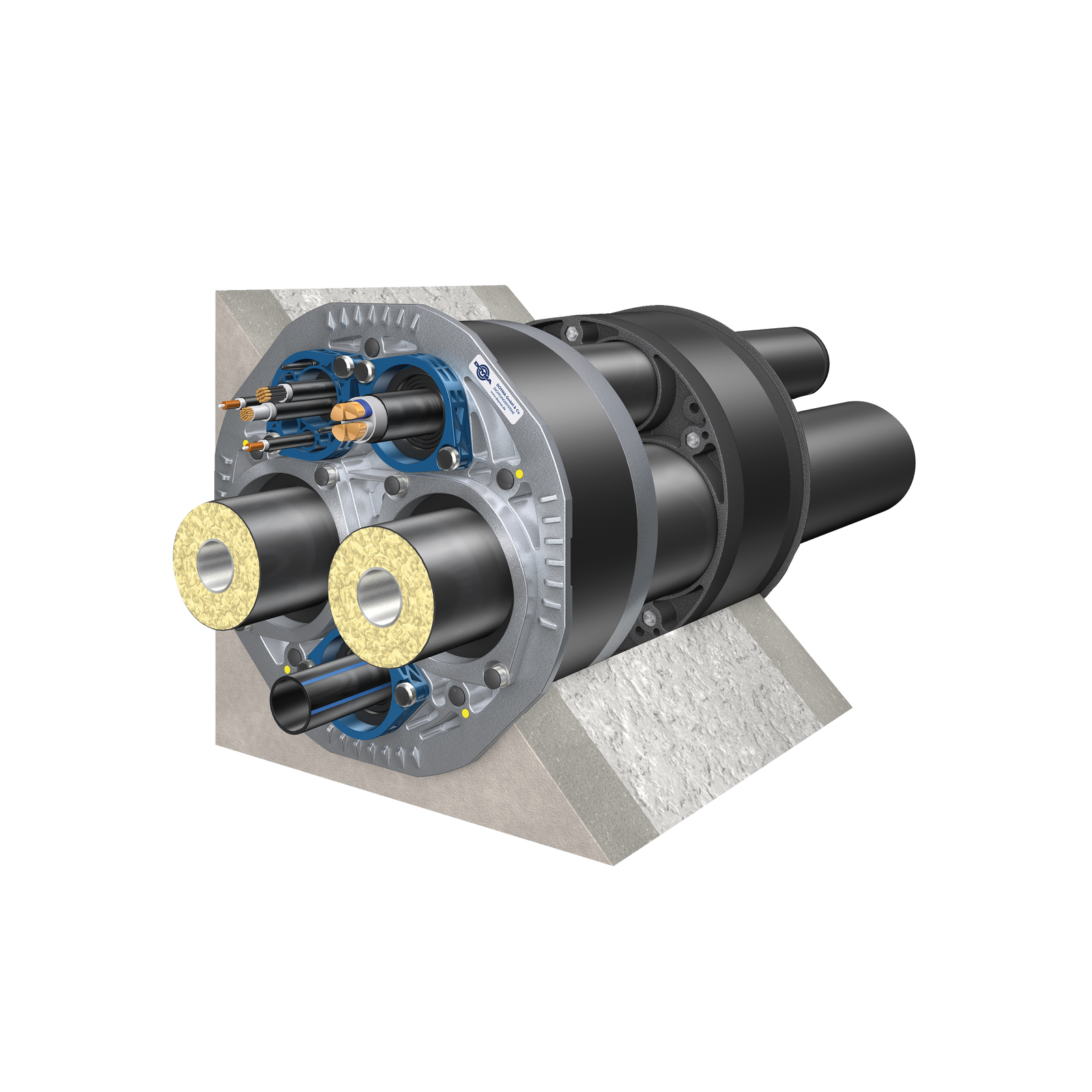

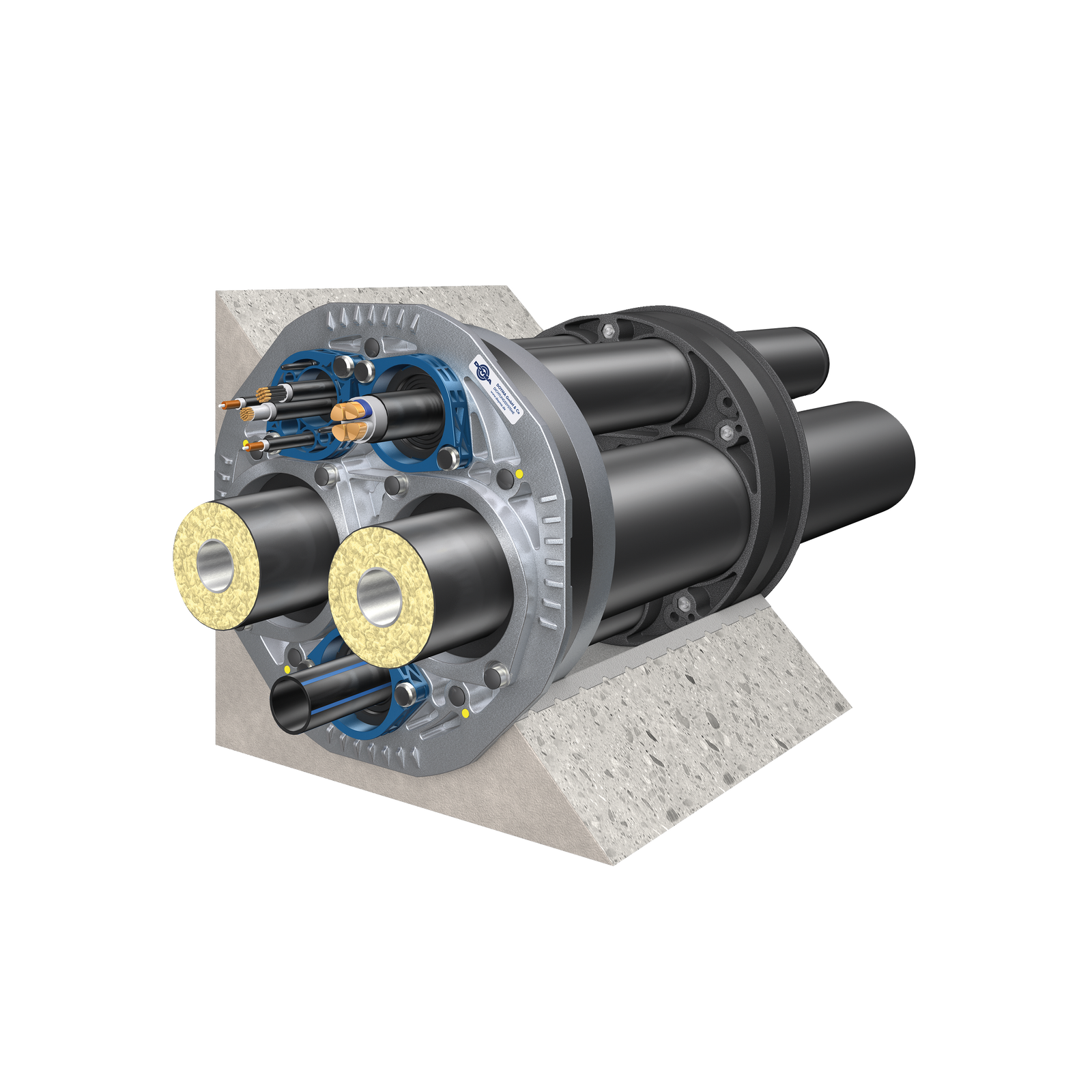

Quadro-Secura® Nova 2-FW
- Multi-section house entry Sealing on both sides
- Use in on-site casing pipe or WU concrete core drilling (white tank)
- for district/ground heating, water, electricity and telecommunications
Quadro-Secura® Nova 2-FW
added to
.
Quadro-Secura® Nova 2-FW
removed from
.
Technical details
- Dry installation
- Gas and pressurized water-tight
- Radon-safe - in accordance with FHRK leaflet MB 101
- Separate sealing of the respective sections
- Variable arrangement of the individual sections possible
- No additional external sealing required
- Connection option for rigid or flexible DN 75 and DN 125 casing pipes, larger or smaller dimensions possible via extension sleeves or reducers
- Visual control of the tightening torque via control pins
Areas of use
- Multi-section house entry Sealing on both sides
- Use in on-site casing pipe or WU concrete core drilling (white tank)
- for district/ground heating, water, electricity and telecommunications
Product benefits
- stepless module seals for water and energy
- Space-saving building entry of the supply lines
- Simple assignment of the trade seal thanks to symbol marking
- Installation possible without a torque wrench
Downloads
Media
skip
-
Installation situation

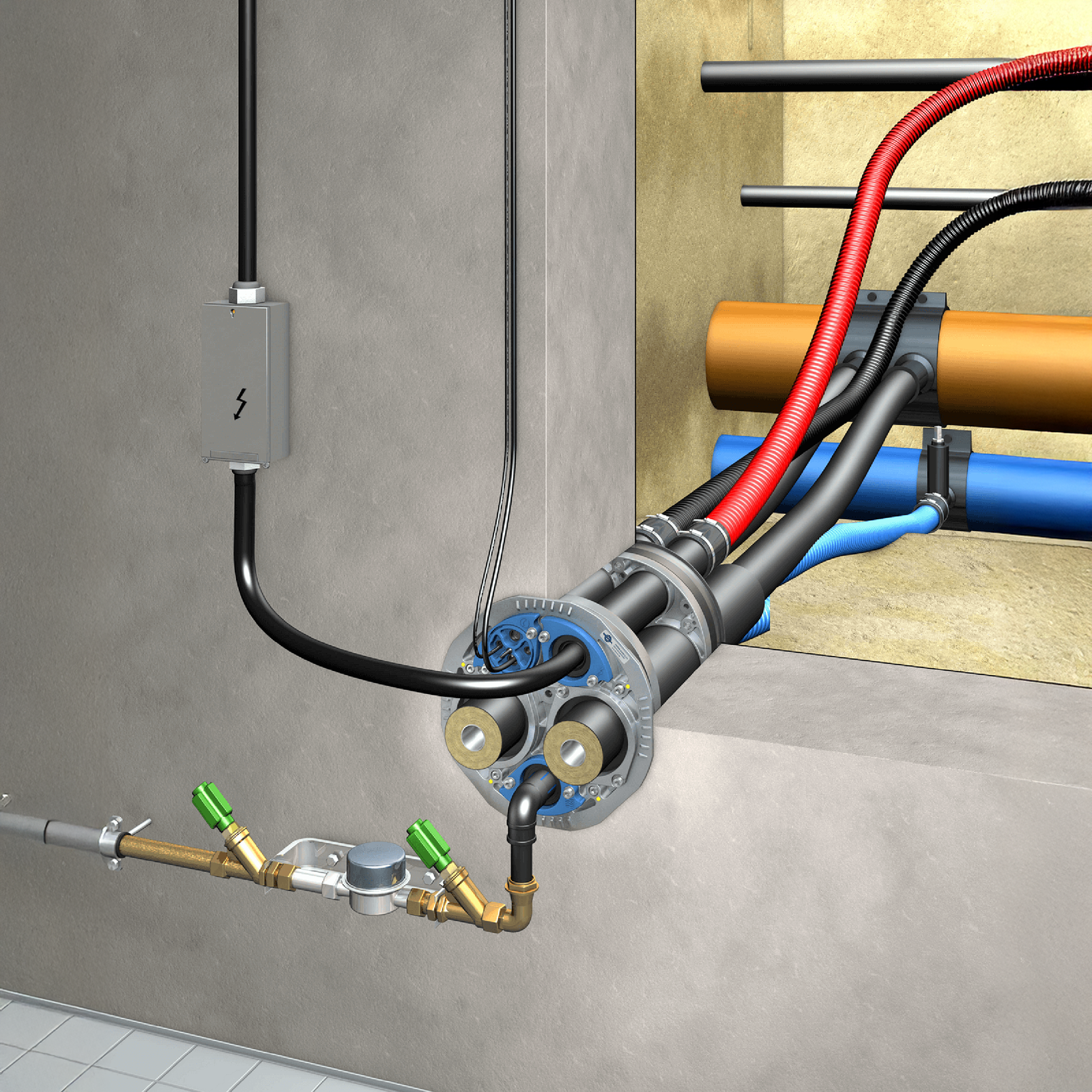

Example Installation of Quadro-Secura® Nova 2/FW
