Single-family house - Introduction for heat pumps

Germany-wide | Europe-wide

Today, single-family homes are increasingly being supplied with renewable energy. With the new DOYMAfix^® HP/O, DOYMA GmbH & Co presents the first professional above-ground feed-through for air-to-water heat pumps. The system impresses with its innovative design and enables simple, quick and safe installation of connection pipes. This reference shows the installation of our prototype.

The DOYMAfix^® HP/O can be installed in a short time; the cross-trade installation (shell construction, HVAC and electrical) offers the greatest possible flexibility in the construction process. The system also guarantees GModG-compliant thermal insulation, regardless of the wall structure and thickness. This means it guarantees the seamless restoration of thermal insulation in the wall penetration to comply with legal requirements.

Can be used for all common wall types

The new above-ground entry for heat pump systems can be installed in all standard wall constructions. This means that building owners and installers do not have to worry about the quality of the wall. The DOYMAfix^® HP/O can be installed quickly by just one person and without additional installation aids. The use of a sleeve pipe is not necessary.

The penetration can be installed directly into a core hole or a chiseled opening and enables a secure connection for air-to-water heat pumps.

The structural challenge lay in the proper sealing and installation of a heat pump entry in a new building. For the respective DOYMAfix® products, documentation is available confirming compliance with the applicable thermal insulation requirements of the GModG. Aesthetic wall transition with surface finish. Can be used universally in all common wall constructions. Airtight according to DIN EN 13829, splash-proof, IP44 according to DIN EN 60529, sound insulation according to DIN 4109-2. For this purpose, DOYMA supplied the DOYMAfix^® HP/O wall duct, which was installed by the contractor Heiter Haustechnik from Wilstedt.

DOYMAfix HP/O plastic heat pump house entry with ventilation slots.

Linking to the video streaming service is disabled to protect your privacy. Click here to activate it. By loading the video, you accept the privacy policy of the video streaming service. Further information about the privacy policy can be found here: Google - Privacy & Terms

Show external content

Two copper pipes protruding from a round, grey wall penetration in a red brick wall.

Visually, the product creates an aesthetic wall transition with a surface finish.

Black plug-in system in the form of a plastic tube with a round, white cover and several round openings, standing on the ground in a construction site environment, with a cable reel and shoes in the background.

The segments allow DOYMAfix® HP/O to be individually adapted to the respective wall thickness.

Hand holding a round, white plastic part with several round recesses and small cylinders on it.

The cover caps are two-piece, so they can be fitted even after the pipes have been installed.

Hands with tattoos assemble grey plastic parts with pipes on wooden boards at a construction site.

A compression tape is available as an accessory for sealing uneven wall surfaces.

Craftsman in brown T-shirt and black dungarees holding a copper pipe with grey insulation

The pipe insulation provided by the customer must be shortened to the wall thickness before installation.

Hand holding black pipe insulation hose with copper pipe opening, next to it grey pipe insulation hose on the floor with additional copper pipes.

The cellular rubber seals can be adjusted to the diameter of the copper pipes.

Person wearing glasses reaches for two copper-coloured pipes in a white wall opening.

Cell rubber seals are mounted flush in the anchor plate.

Close-up of a gloved hand holding a white nozzle on a round device with black and copper-coloured parts.

Shown here: Inserting expansion foam to fill cavities.

Round white wall bracket with two protruding copper pipes and four smaller openings.

This creates a surface area for the flat connection of the 200% external insulation.

Hand with screwdriver mounted round white wall bracket on brick wall.

The outer anchor plate is secured using two screws.

Two copper-coloured pipes protruding from a round white wall bracket in a brick wall.

The pipes have been installed. The cables can be installed separately, which allows for flexibility in the construction process.

Round white wall duct with slats mounted on a red brick wall.

The anchor plate of the DOYMAfix® HP/O on the outside of the building. Now the pipes are installed.

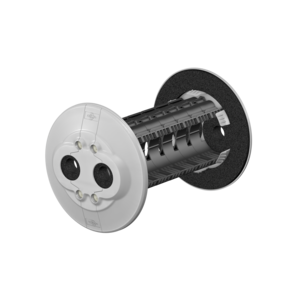

DOYMAfix^® HP/O
