Curaflex® C/M/T
- Sealing of penetrations
- Use in lining pipe provided by the customer or WU concrete core drilling (white tank)
- for several pipes
- divided, for already laid pipes
Curaflex® C/M/T
added to
.
Curaflex® C/M/T
removed from
.
Technical details
- Tested in accordance with FHRK test basis GE 101 (No. G 30 322-2-2) - FHRK 57 LD10
- Gas and water-tight
- Radon-tight - in accordance with FHRK data sheet MB 101, meets the requirements for radon precaution areas
- Angles of the service pipes up to 8º possible
- Absorption of axial movements
- Double-sealing
- Split
Areas of use
- Sealing of penetrations
- Use in lining pipe provided by the customer or WU concrete core drilling (white tank)
- for several pipes
- divided, for already laid pipes
Product benefits
- Permanently tight without retensioning (maintenance-free)
- Higher sealing performance of the sealing insert thanks to DOYMA-Grip
- Watertight welded bolts
- Can be retrofitted around the existing pipes
- www.doyma.de
- #Frame rings: Steel rings, ggv corrosion protection coating; optionally made of stainless steel 1.4301 (V2A) or 1.4571/1.4404 (V4A)
- #Rubber seal: Elastomer, 2 x 27 mm thick EPDM seals (DOYMA-Grip), optionally EPDM-TW, NBR (fuel/oil resistant) or silicone (high temperature resistant) or FPM (chemical resistant)
- Orange center ring (up to KB/DN 350)
Media
skip
-
Installation situation

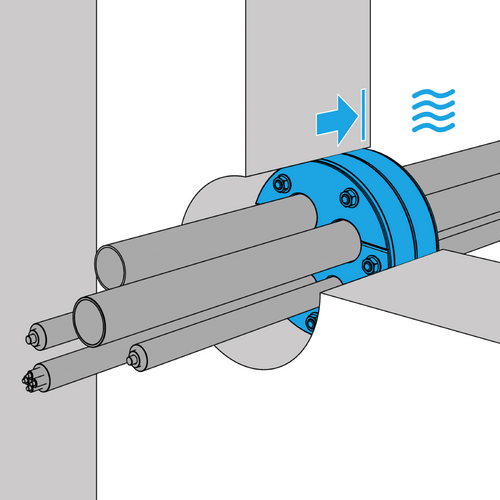

Example Installation of Curaflex® C/M/T
