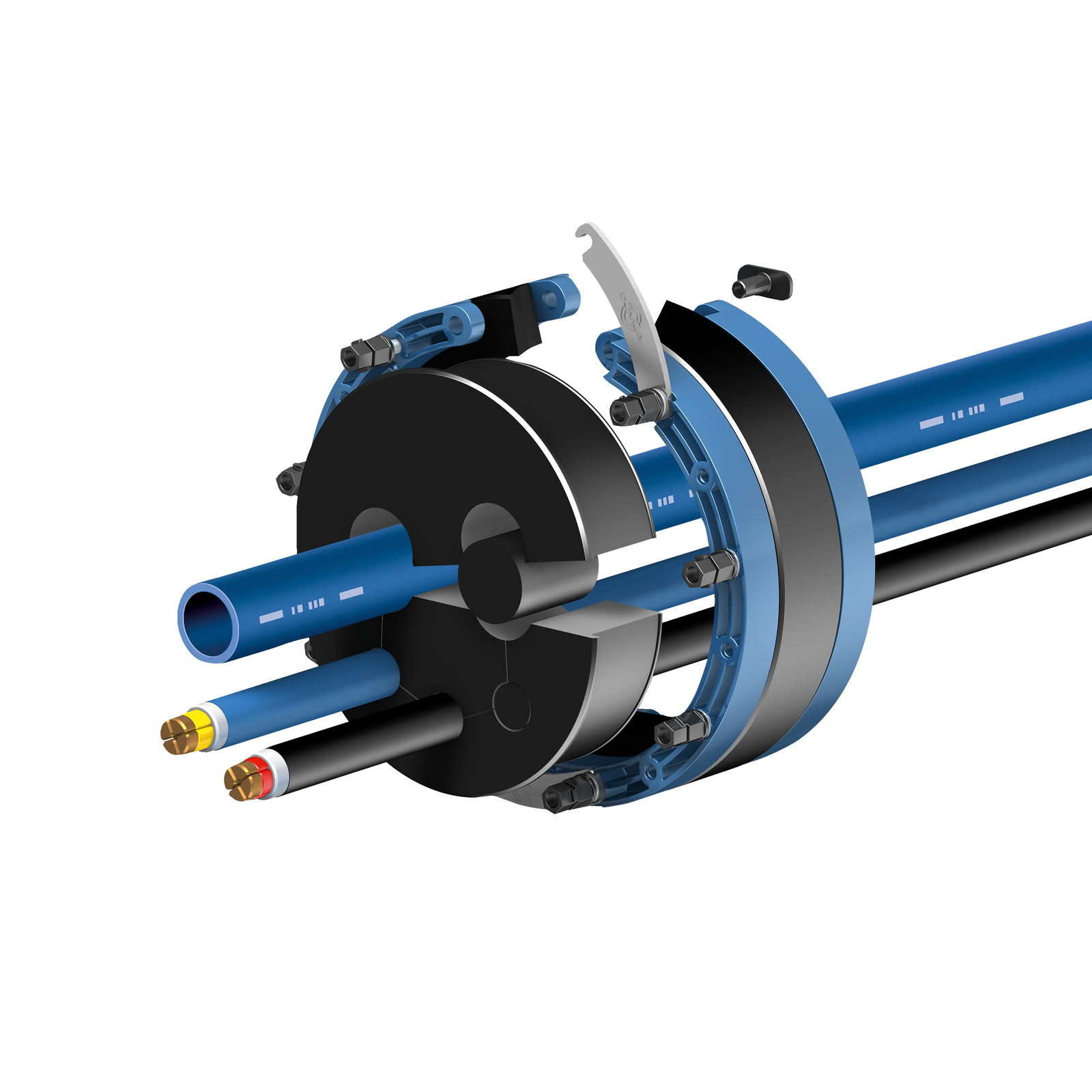

Curaflex Nova® Uno/M/T
- Sealing of penetrations
- Use in lining pipe provided by the customer or WU concrete core drilling(white tank)
- hinged, for already laid pipes
- with with replaceable insert
Curaflex Nova® Uno/M/T
added to
.
Curaflex Nova® Uno/M/T
removed from
.
Technical details
- Tested according to FHRK test basis GE 101 without radial load according to 4.3.2 (No. G 30 322-2-4) - FHRK 40 D10
- Gas and watertight
- Radon-proof - in accordance with FHRK data sheet MB 101
- Absorption of axial movements
- 40 mm sealing width
- hinged
Areas of use
- Sealing of penetrations
- Use in lining pipe provided by the customer or WU concrete core drilling(white tank)
- hinged, for already laid pipes
- with with replaceable insert
Product benefits
- with ITL system for optimum contact pressure - can also be fitted with a cordless screwdriver
- Permanently tight without retensioning (maintenance-free)
- Higher sealing performance of the sealing insert thanks to DOYMA-Grip
- Can be retrofitted around the existing pipes
- with quick-release fastener for secure and immovable closure
- the internal, split replacement insert can be replaced with a new one at any time
- Split blue frame rings made of high-performance plastic
- split elastomer sealing ring, 40 mm wide, made of EPDM (DOYMA-Grip)
- Quick-release fastener made of V4A stainless steel
- ITL nuts
- A4 stainless steel screws
- Replacement insert made of EPDM with stop for axial fixation
Media
skip
-

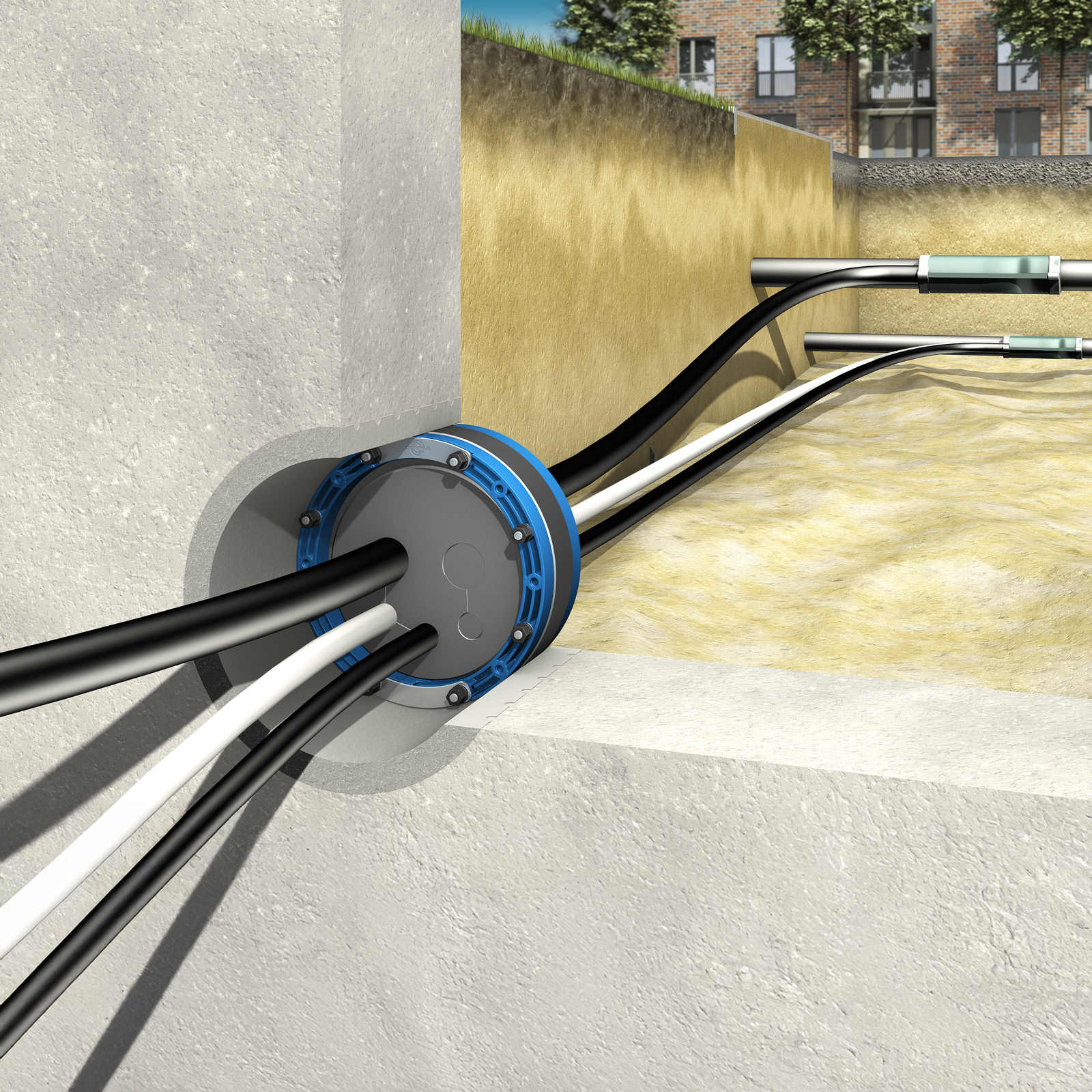

Installation situation
