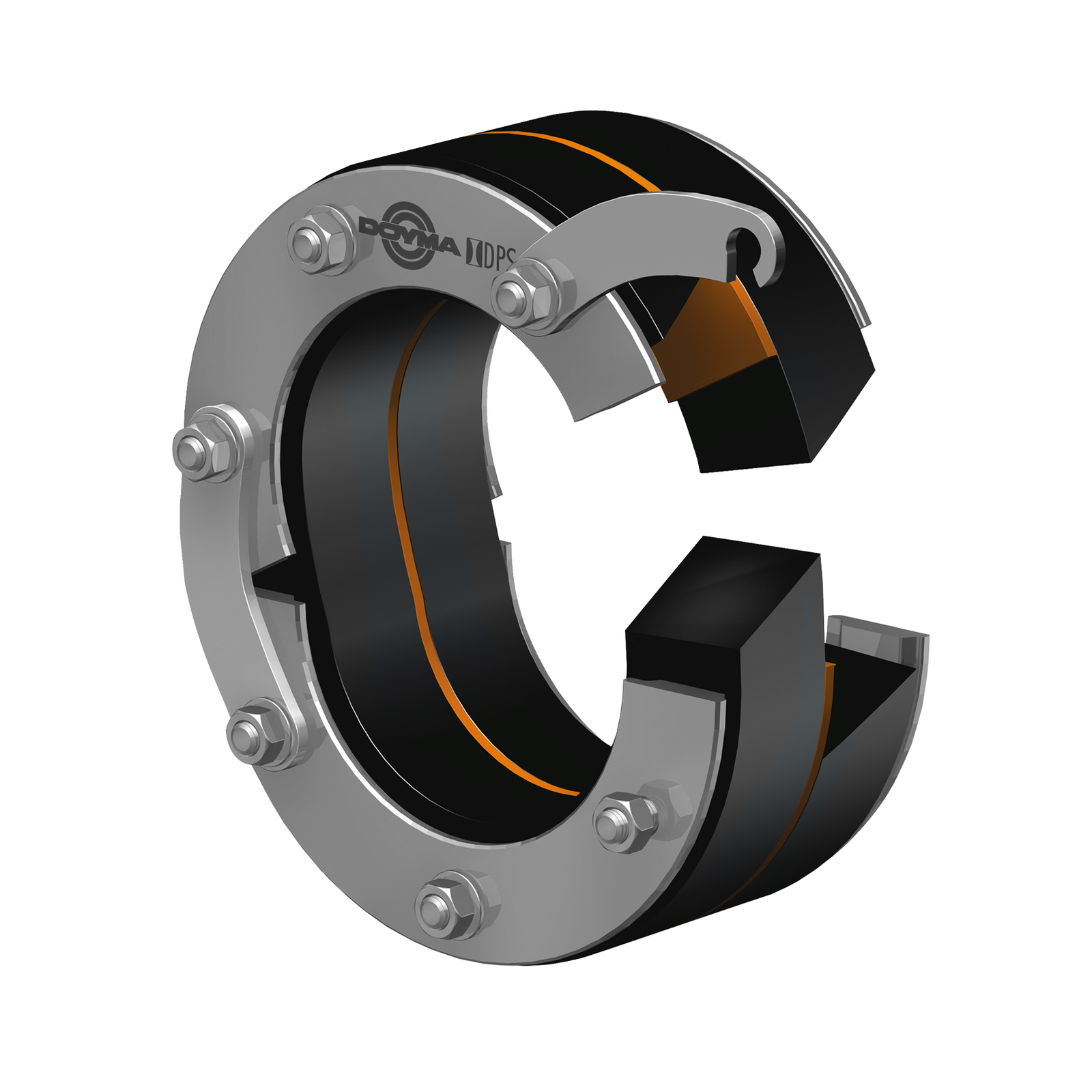

Curaflex® Quick In C

  • Sealing of penetrations
  • Use in lining pipe provided by the customer or WU concrete core drilling (white tank)
  • Hinged, for already laid pipes
Dealer search
Pressing water

Technical details

  • Tested in accordance with FHRK test basis GE 101 (No. G 30 322-2-2) - FHRK 57 LD10
  • Gas and water-tight
  • Radon-tight - in accordance with FHRK data sheet MB 101, meets the requirements for radon precaution areas
  • Angles of the service pipes up to 8º possible
  • Absorption of axial movements
  • Double-sealing

Areas of use

  • Sealing of penetrations
  • Use in lining pipe provided by the customer or WU concrete core drilling (white tank)
  • Hinged, for already laid pipes

Product benefits

  • Large sealing areas
  • Permanently tight without retensioning (maintenance-free)
  • higher sealing performance of the gasket insert thanks to DPS and DOYMA-Grip
  • Watertight welded bolts
  • with quick-release fastener (up to DN 500), for secure and immovable closure
  • Can be retrofitted around the existing pipe
  • Can be used for double/element walls
  • www.doyma.de

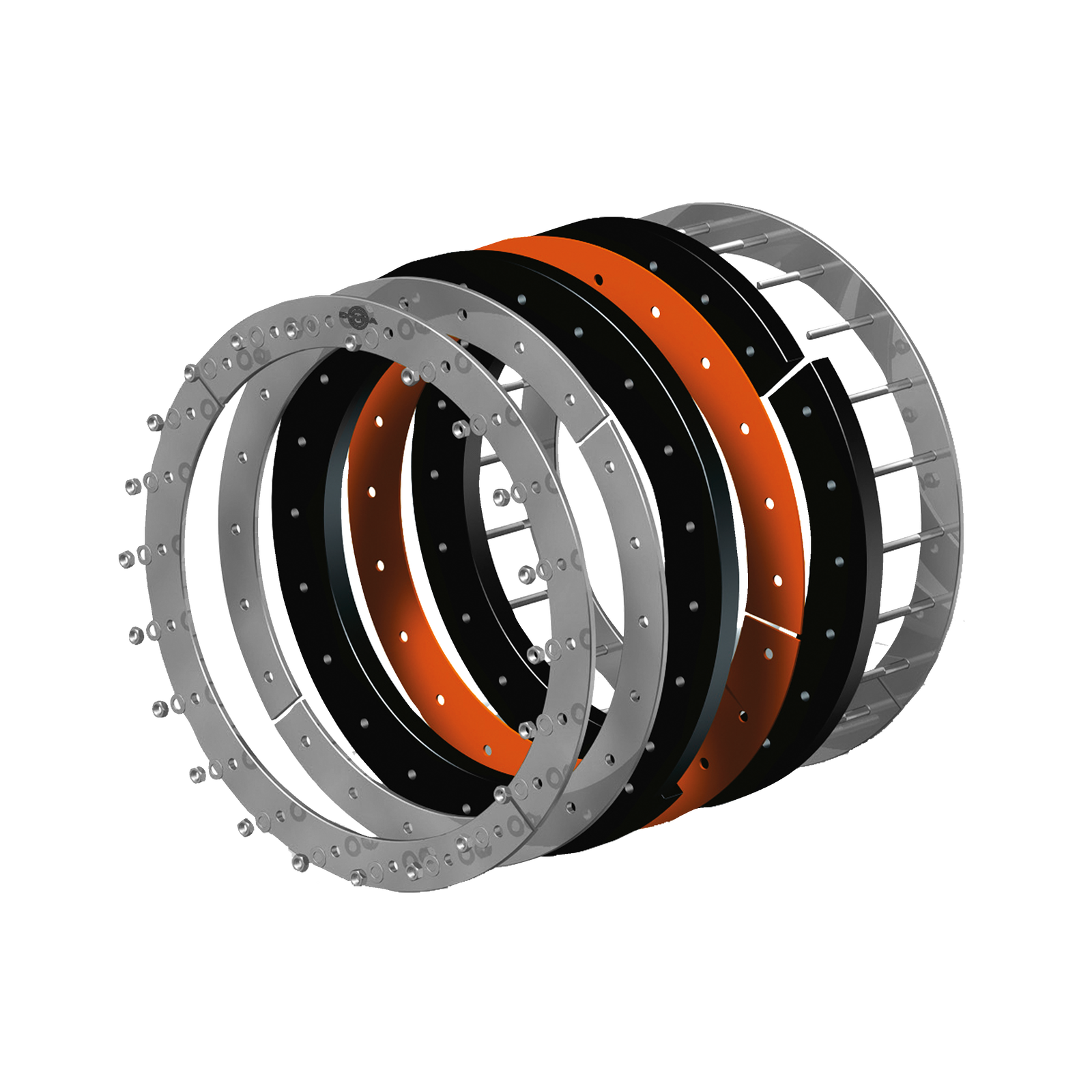

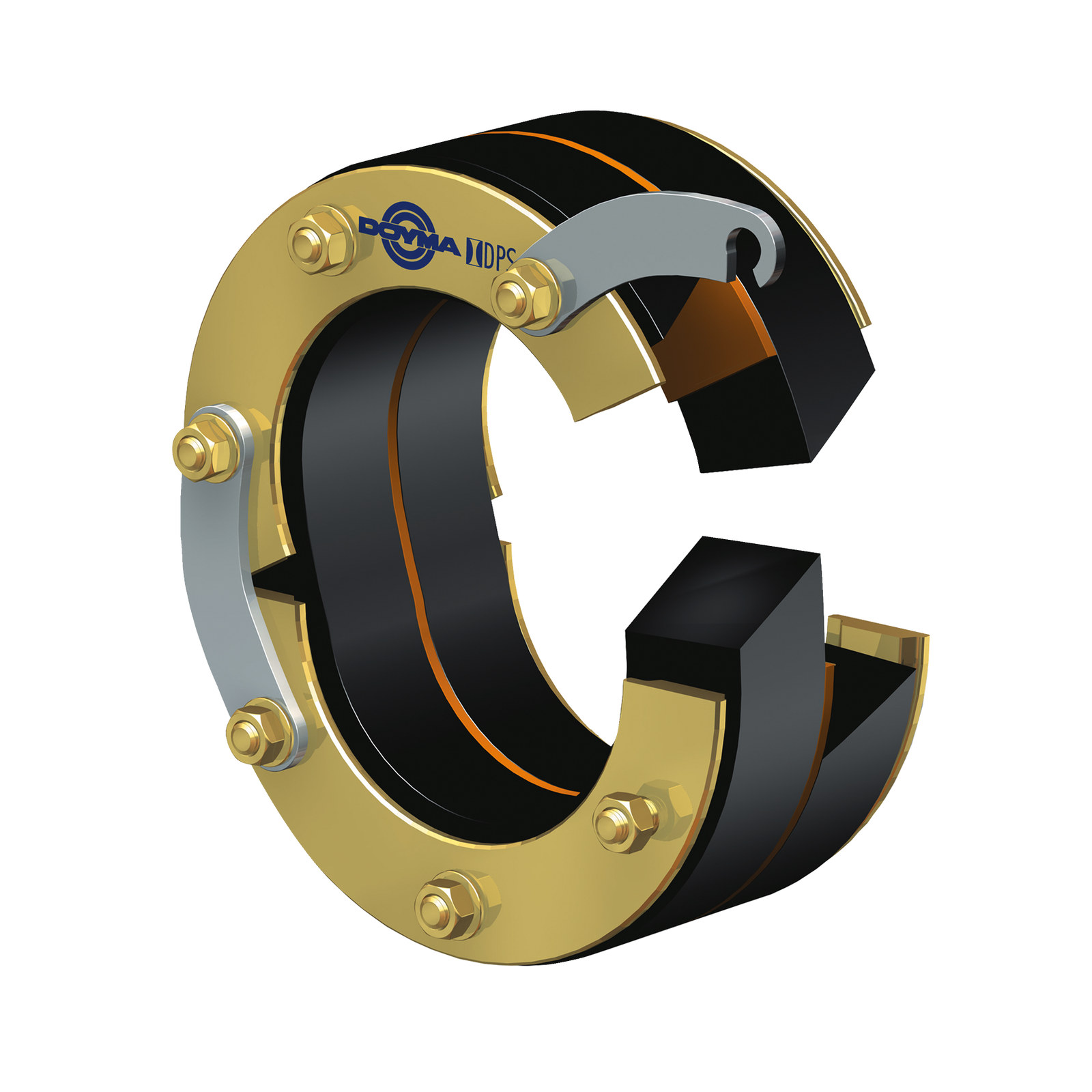

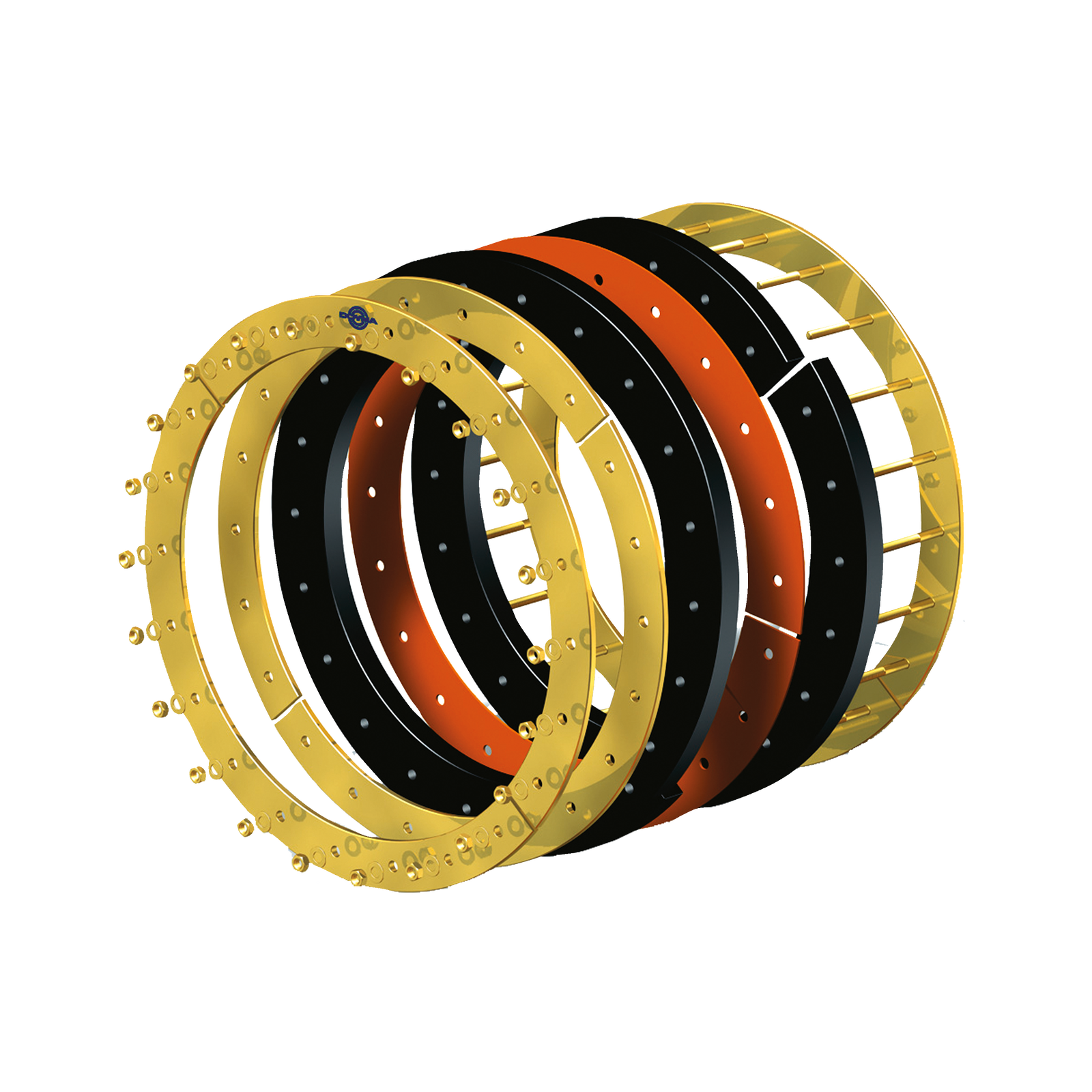

  • Split frame rings: asymmetrically profiled steel rings (DPS up to KB/DN 350), with quick-release fastener (up to DN 500), ggv corrosion protection coating; optionally made of stainless steel 1.4301 (V2A) or 1.4571/1.4404 (V4A)
  • Split rubber seal with stepped cut: Elastomer, 2 x 27 mm thick EPDM gaskets (DOYMA-Grip), optionally EPDM-TW, NBR (fuel/oil resistant) or silicone (high temperature resistant) or FPM (chemical resistant)
  • Orange center ring (up to KB/DN 350)

Downloads

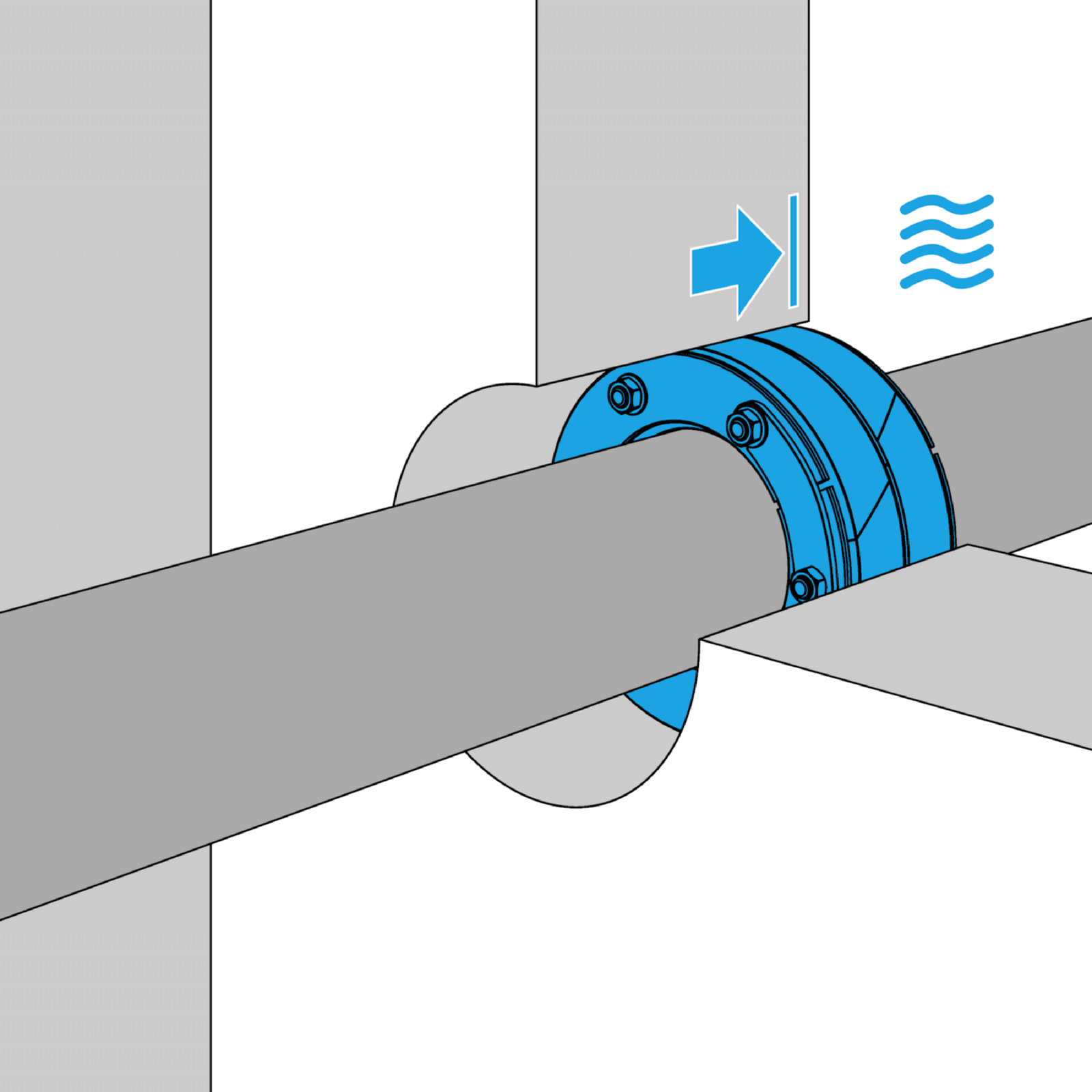

  • Installation situation

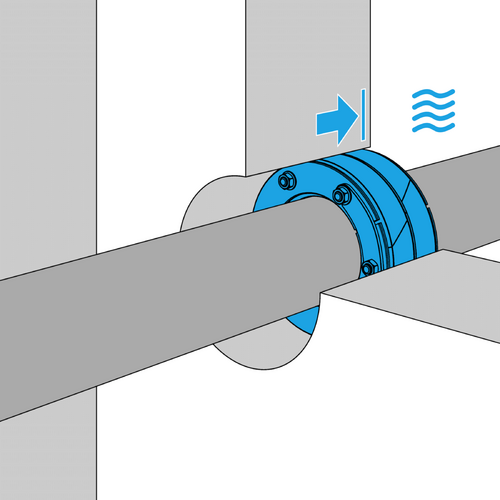

    Example Installation of Curaflex® Quick In C

Aerial view of a large sewage treatment plant with various treatment stages.

Münchehofe sewage treatment plant

The Münchehofe wastewater treatment plant not only purifies the wastewater of 300,000 people. It also makes a significant contribution to the security of the drinking water supply in Berlin.

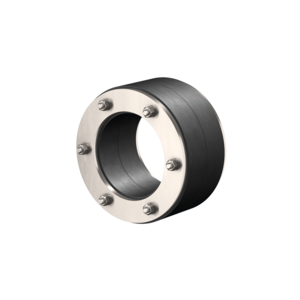

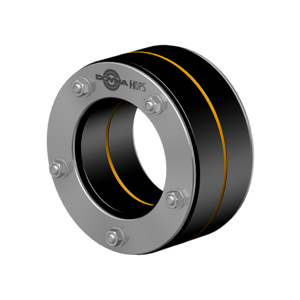

Related Products
