Curaflex® 7006/M/S

  • Flange plate with several sleeves for penetrations
  • Use in front of the wall
  • for use with waterproofing membrane or thick coating (black tank)
  • Ideal for renovation
  • for several pipes
Dealer search
Pressing water

Technical details

  • with fixed and loose flange made of steel (loose flange split) to DIN18533
  • Dimensions and number of sleeves as specified and in accordance with DIN18533
  • for buildings with waterproofing membranes/thick coating (black tank)
  • Gas and watertight
  • Radon proof - in accordance with FHRK data sheet MB 101
  • Depending on the waterproofing membrane, with Curaflex® additions (1775) on both sides for thin and hard membranes or accessories for thick coatings (1776): Sanding of the contact surfaces of the fixed/loose flange
  • We will be happy to manufacture other variations for you, e.g. with underlength, additional flanges or against non-pressing water (7005/M/S)

APPLICATION EXAMPLE

Suitable as a casing pipe for sealing the flow and return of district heating pipes.

Areas of use

  • Flange plate with several sleeves for penetrations
  • Use in front of the wall
  • for use with waterproofing membrane or thick coating (black tank)
  • Ideal for renovation
  • for several pipes

Product benefits

  • Sealing in front of the wall (condition of the drill hole/wall opening not relevant)
  • Suitable for penetrations without a suitable core drill hole or casing pipe
  • Optimally designed inner wall to accommodate DOYMA sealing systems
  • Manufactured to specification

  • ggv corrosion protection coating; optionally stainless steel 1.4301 (V2A) or 1.4571/1.4404 (V4A)
  • with sanded contact surfaces if thick coating is still to be applied
  • Delivery incl. fastening material for solid walls

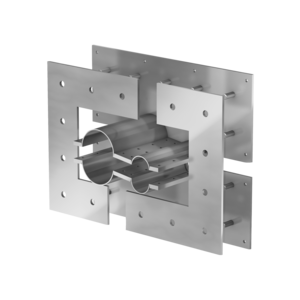

VARIANT Curaflex® FEED TUBE 7006/M/T/S:

Properties as described above, but split version. For installation with existing piping; to be retrofitted around the piping.
