Curaflex® 7006/T
- Flange plate with sleeve for penetrations
- For use in front of the wall
- for use with waterproofing membrane or thick coating (black tank)
- with fixed and loose flange in split design
- for installation with existing pipework in the wall
- Ideal for refurbishment
Curaflex® 7006/T
added to
.
Curaflex® 7006/T
removed from
.
Technical details
- with fixed and loose flange in split design made of steel according to DIN18533
- for buildings with waterproofing membranes/thick coating (black tank)
- Gas and watertight
- Radon proof - in accordance with FHRK data sheet MB 101
- Depending on the waterproofing membrane, with Curaflex® additions (1775) on both sides for thin and hard membranes or accessories for thick coatings (1776): Sanding of the contact surfaces of the fixed/loose flange
Areas of use
- Flange plate with sleeve for penetrations
- For use in front of the wall
- for use with waterproofing membrane or thick coating (black tank)
- with fixed and loose flange in split design
- for installation with existing pipework in the wall
- Ideal for refurbishment
Product benefits
- Sealing in front of the wall (condition of the drill hole/wall opening not relevant)
- Suitable for penetrations without a suitable core drill hole or casing pipe
- Optimally designed inner wall to accommodate DOYMA sealing systems
- Split design, for installation with existing pipe in the wall

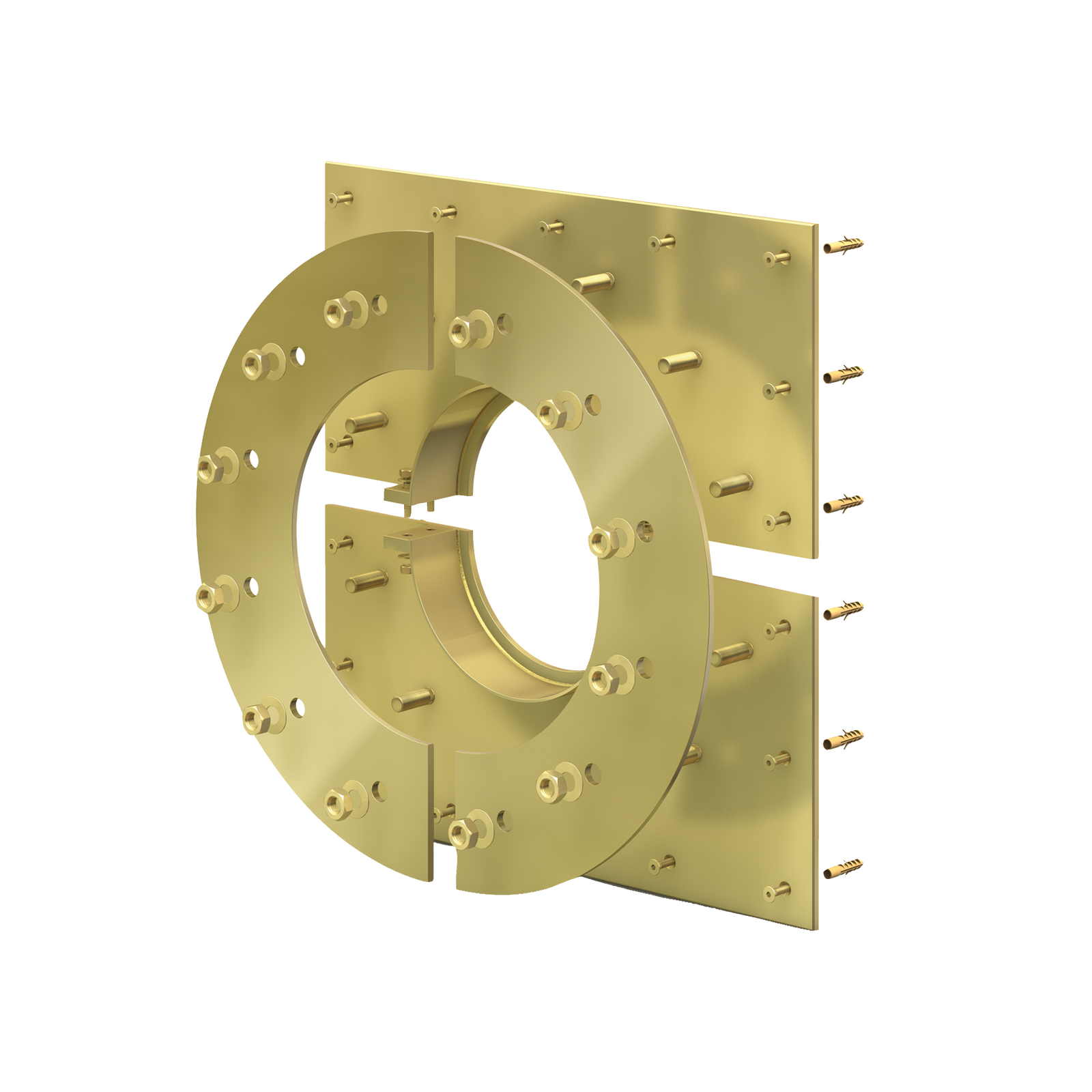

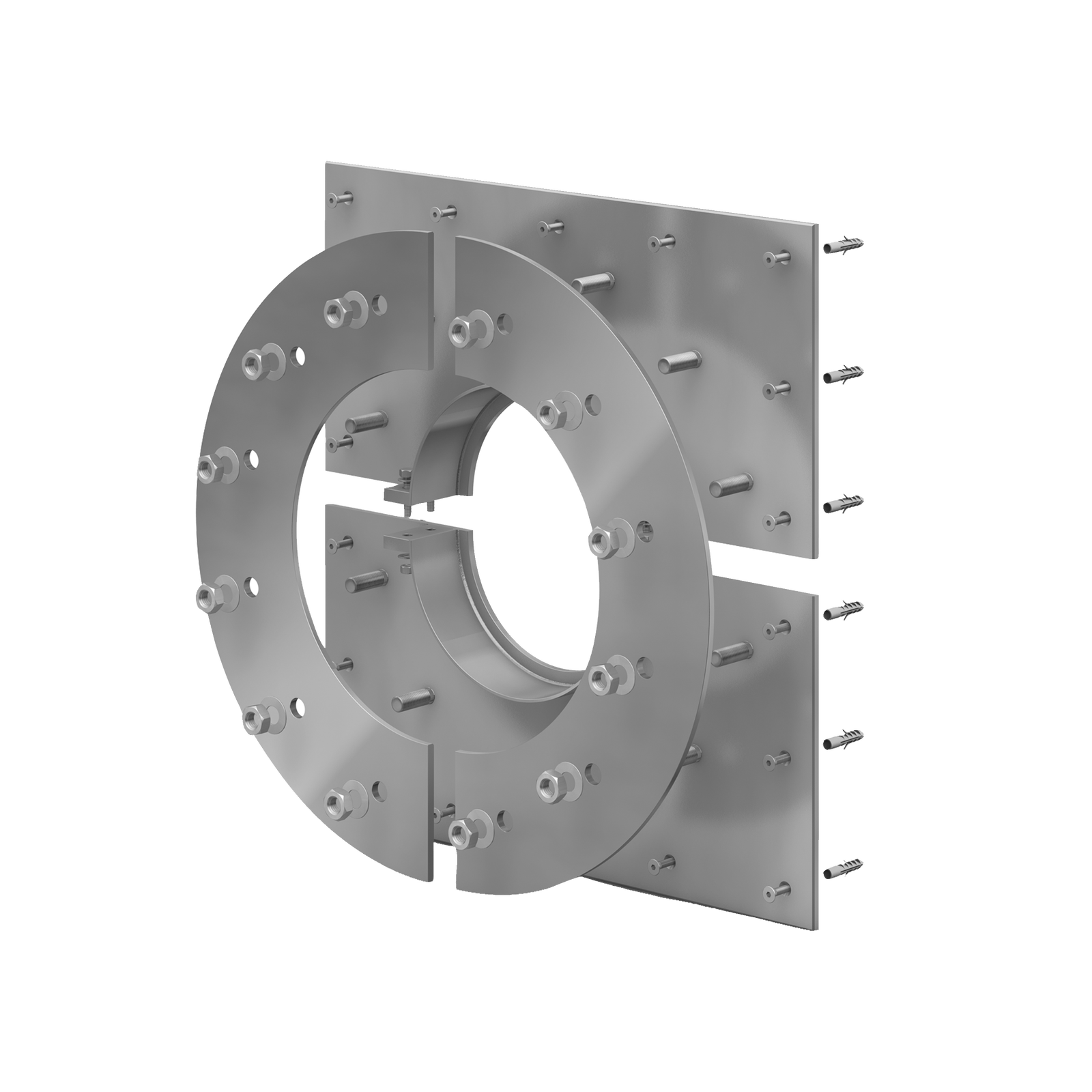

- ggv corrosion protection coating; optionally made of stainless steel 1.4301 (V2A) or 1.4571/1.4404 (V4A)
- with sanded contact surfaces if thick coating is still to be applied
- Delivery incl. fastening material for solid walls
