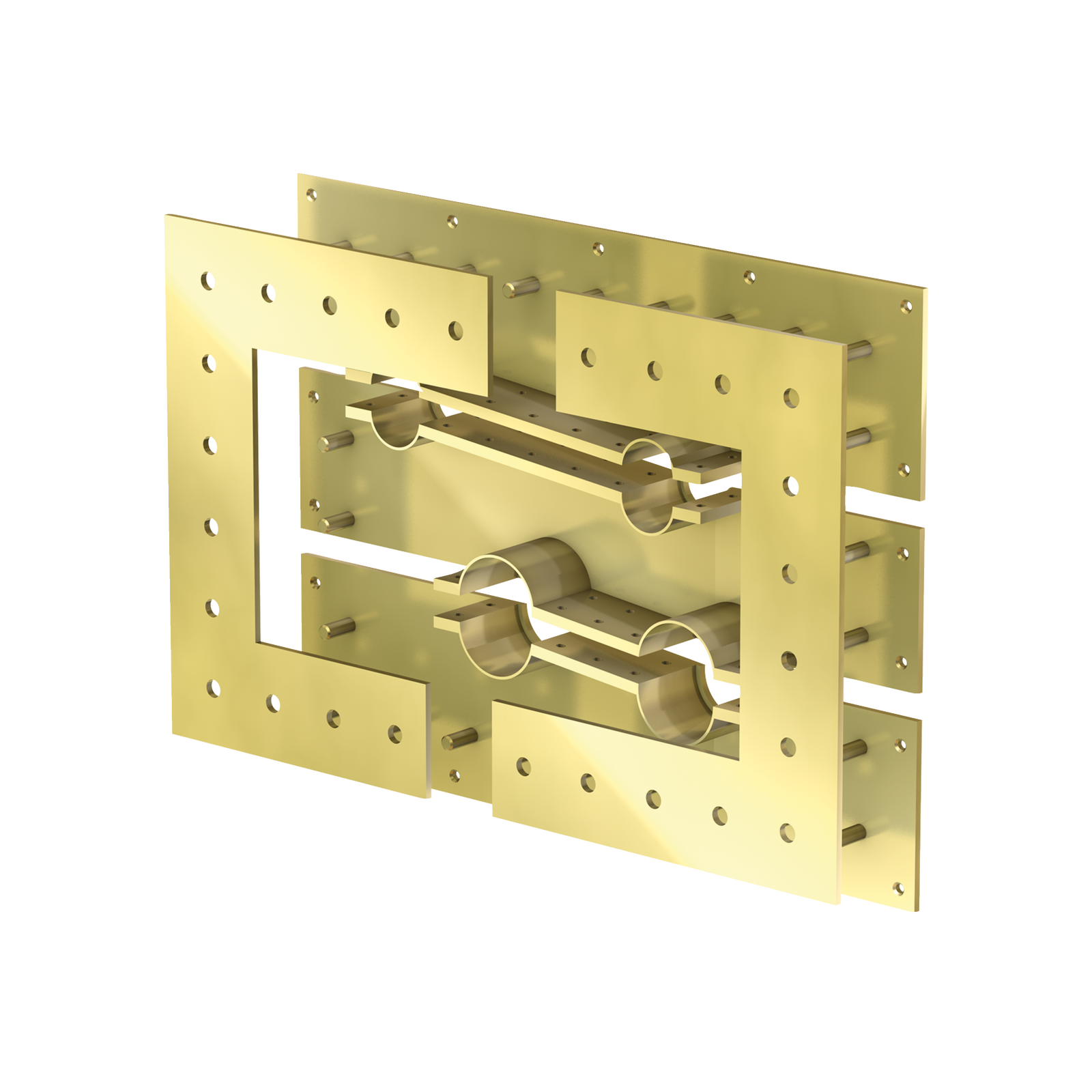

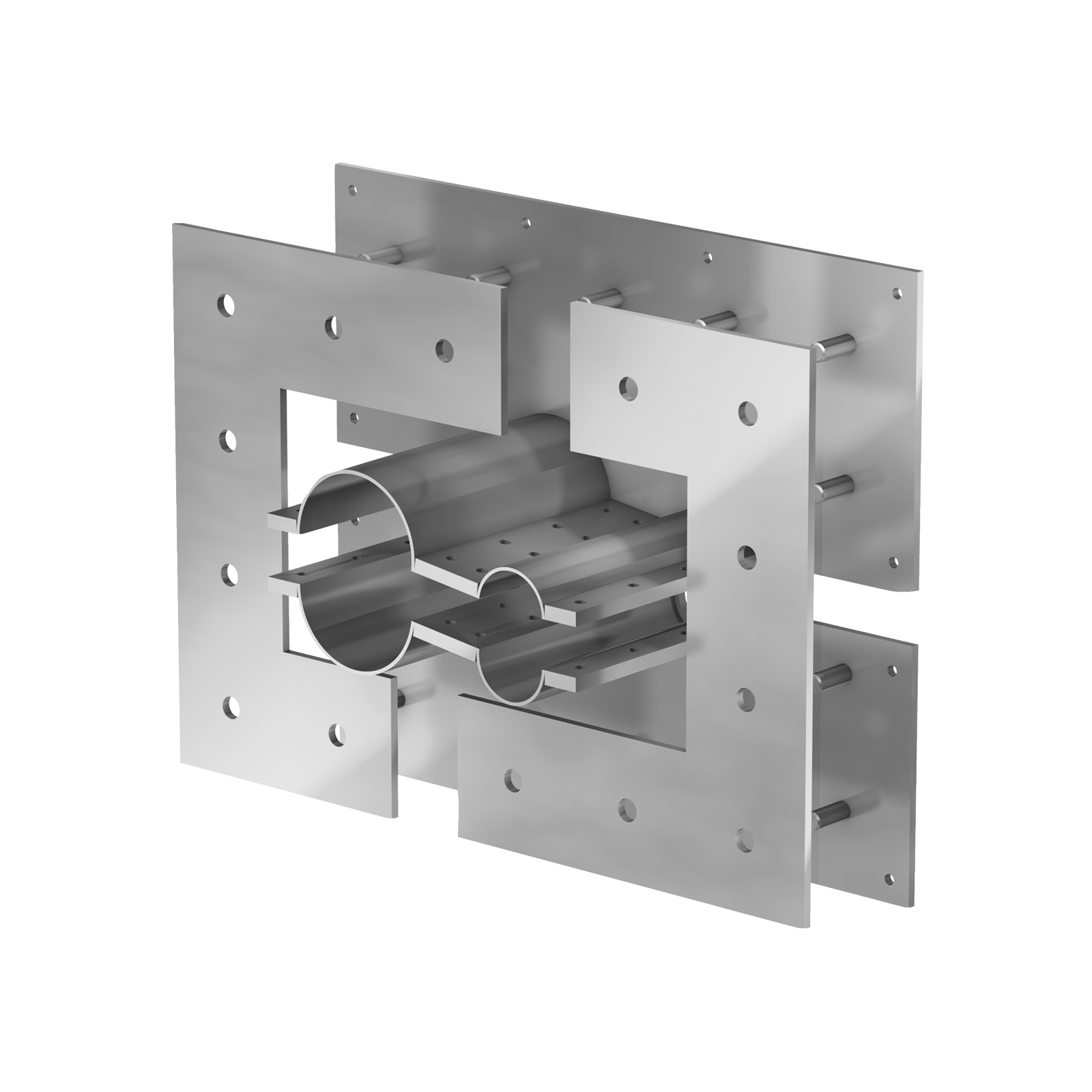

Curaflex® 7006/M/T/S
- Flange plate with several sleeves for penetrations
- Use in front of the wall
- for use with waterproofing membrane or thick coating (black tank)
- Ideal for renovation
- For several pipes
- For installation with existing piping; for retrofitting the pipes
Curaflex® 7006/M/T/S
added to
.
Curaflex® 7006/M/T/S
removed from
.
Technical details
- with fixed and loose flange made of steel (loose flange split) to DIN18533
- Dimensions and number of sleeves as specified and in accordance with DIN18533
- for buildings with waterproofing membranes/thick coating (black tank)
- Gas and watertight
- Radon-safe - in accordance with FHRK leaflet MB 101
- Compatible with all Curaflex® sealing inserts
- Depending on the waterproofing membrane, with Curaflex® additions (1775) on both sides for thin and hard membranes or accessories for thick coatings (1776): Sanding of the contact surfaces of the fixed/loose flange
- We will be happy to manufacture other variations for you, e.g. with underlength, additional flanges or against non-pressing water (7005/M/S)
Areas of use
- Flange plate with several sleeves for penetrations
- Use in front of the wall
- for use with waterproofing membrane or thick coating (black tank)
- Ideal for renovation
- For several pipes
- For installation with existing piping; for retrofitting the pipes
Product benefits
- Sealing in front of the wall (condition of the drill hole/wall opening not relevant)
- Suitable for penetrations without a suitable core drill hole or casing pipe
- Optimally designed inner wall to accommodate DOYMA sealing systems
- Manufactured to specification
