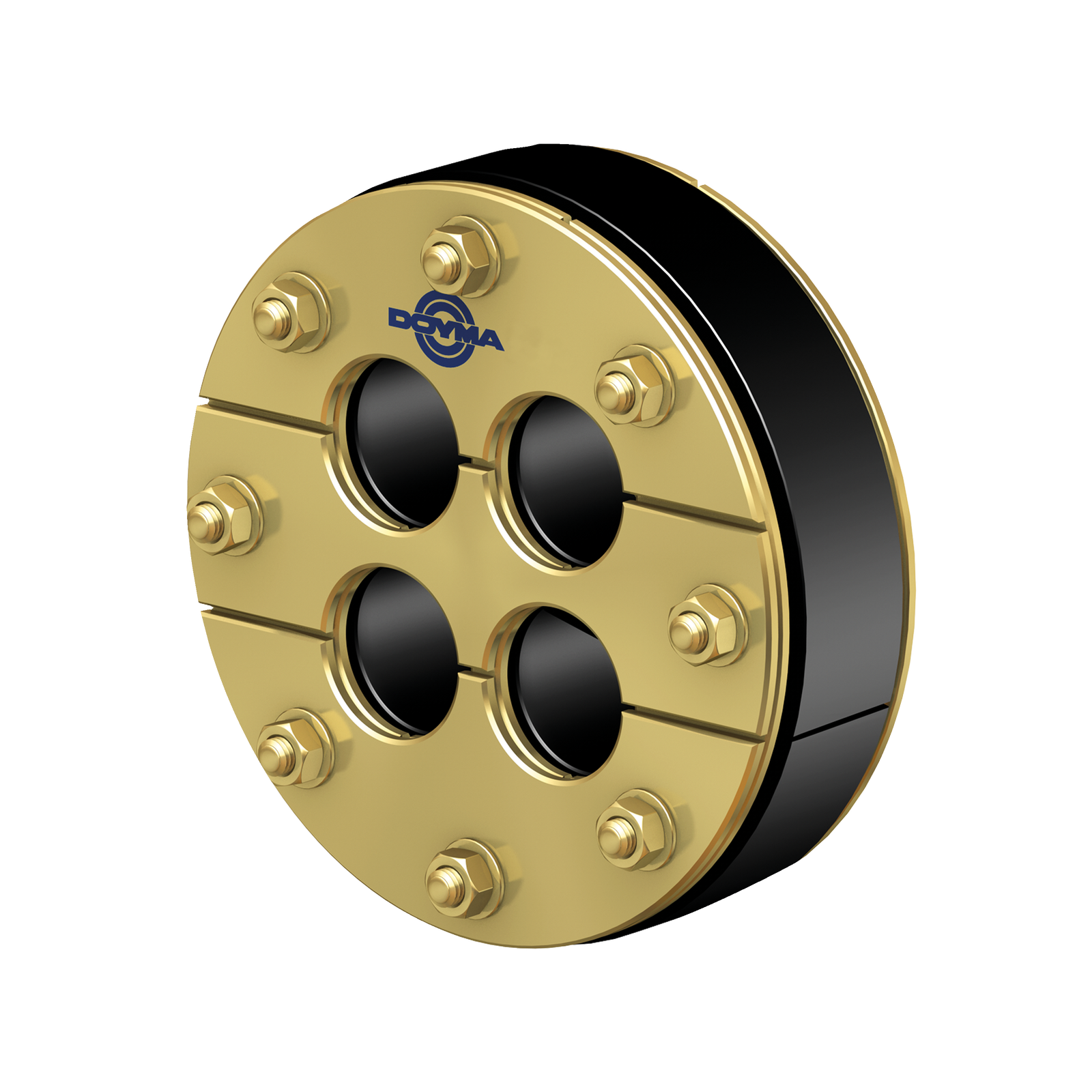

Curaflex® A/M/T

  • Sealing of penetrations
  • Use in lining pipe provided by the customer or WU concrete core drilling (white tank)
  • for several pipes
  • divided, for already laid pipes
Dealer search
Non-pressing water

Technical details

  • Tested in accordance with FHRK test basis GE 101 (No. G 30 322-2-1) - FHRK 27 D01
  • Gas and water-tight
  • Radon-tight - in accordance with FHRK data sheet MB 101, meets the requirements for radon precaution areas
  • Angles of the service pipes up to 8º possible
  • Absorption of axial movements
  • Single sealing
  • split

Areas of use

  • Sealing of penetrations
  • Use in lining pipe provided by the customer or WU concrete core drilling (white tank)
  • for several pipes
  • divided, for already laid pipes

Product benefits

  • Permanently tight without retensioning (maintenance-free)
  • Higher sealing performance of the sealing insert thanks to DOYMA-Grip
  • Watertight welded bolts
  • Can be retrofitted around the existing pipes
  • www.doyma.de

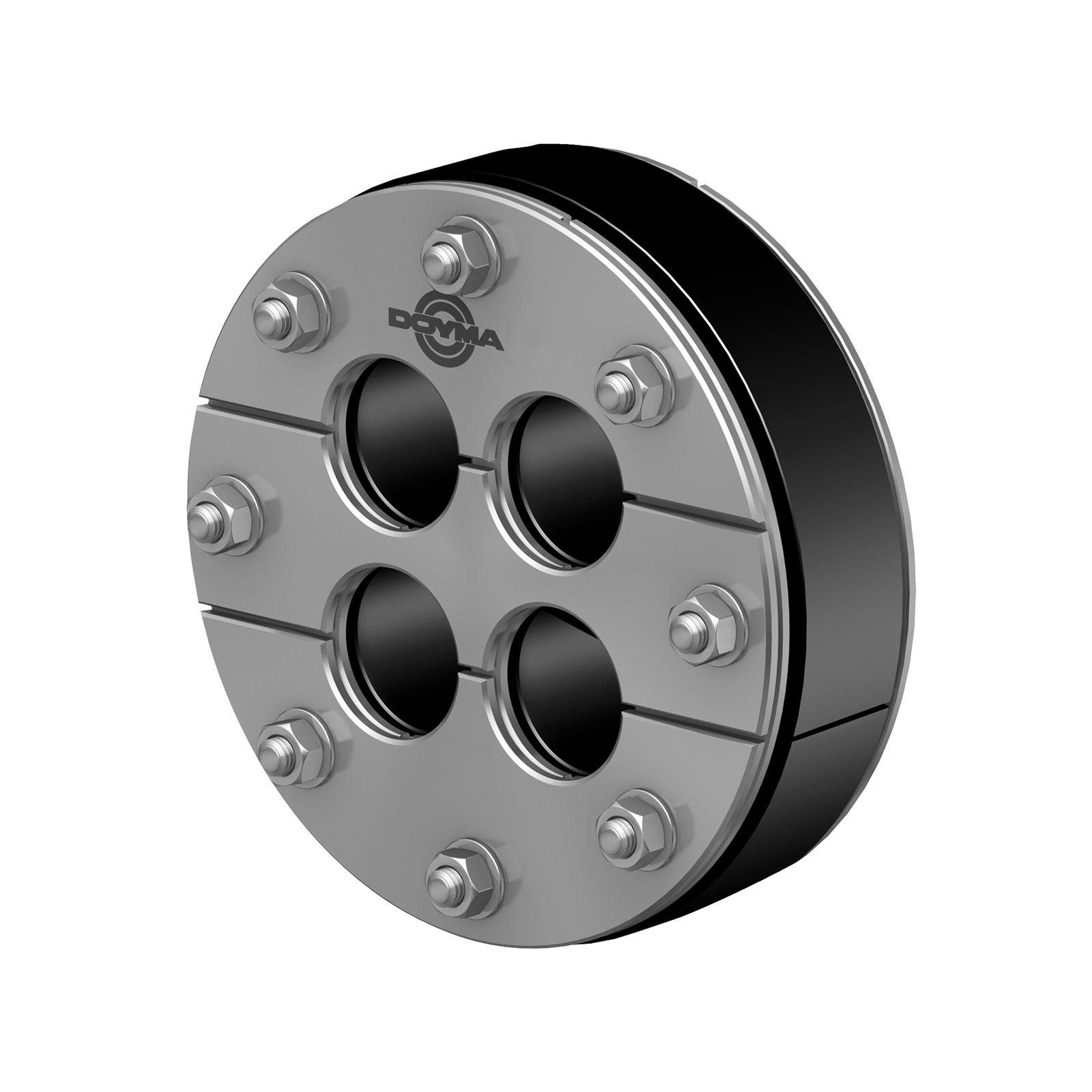

  • Split frame ringssteel rings, ggv corrosion protection coating; optionally made of stainless steel 1.4301 (V2A) or 1.4571/1.4404 (V4A)
  • Split rubber sealElastomer, 27 mm thick EPDM seal (DOYMA-Grip), optionally EPDM-TW, NBR (fuel/oil resistant) or silicone (high temperature resistant) or FPM (chemical resistant)

Downloads

  • Installation situation

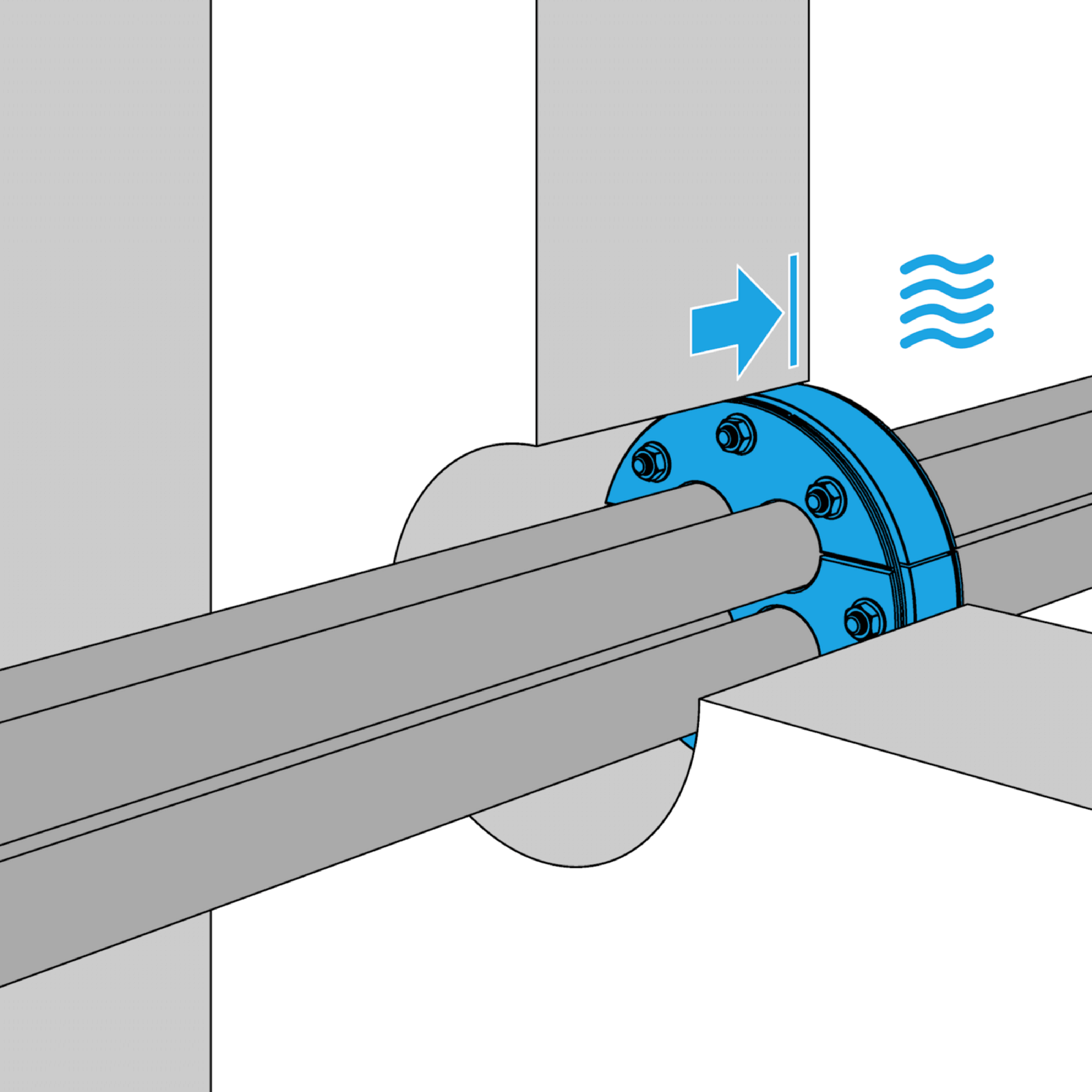

    Example Installation of Curaflex® A/M/T
