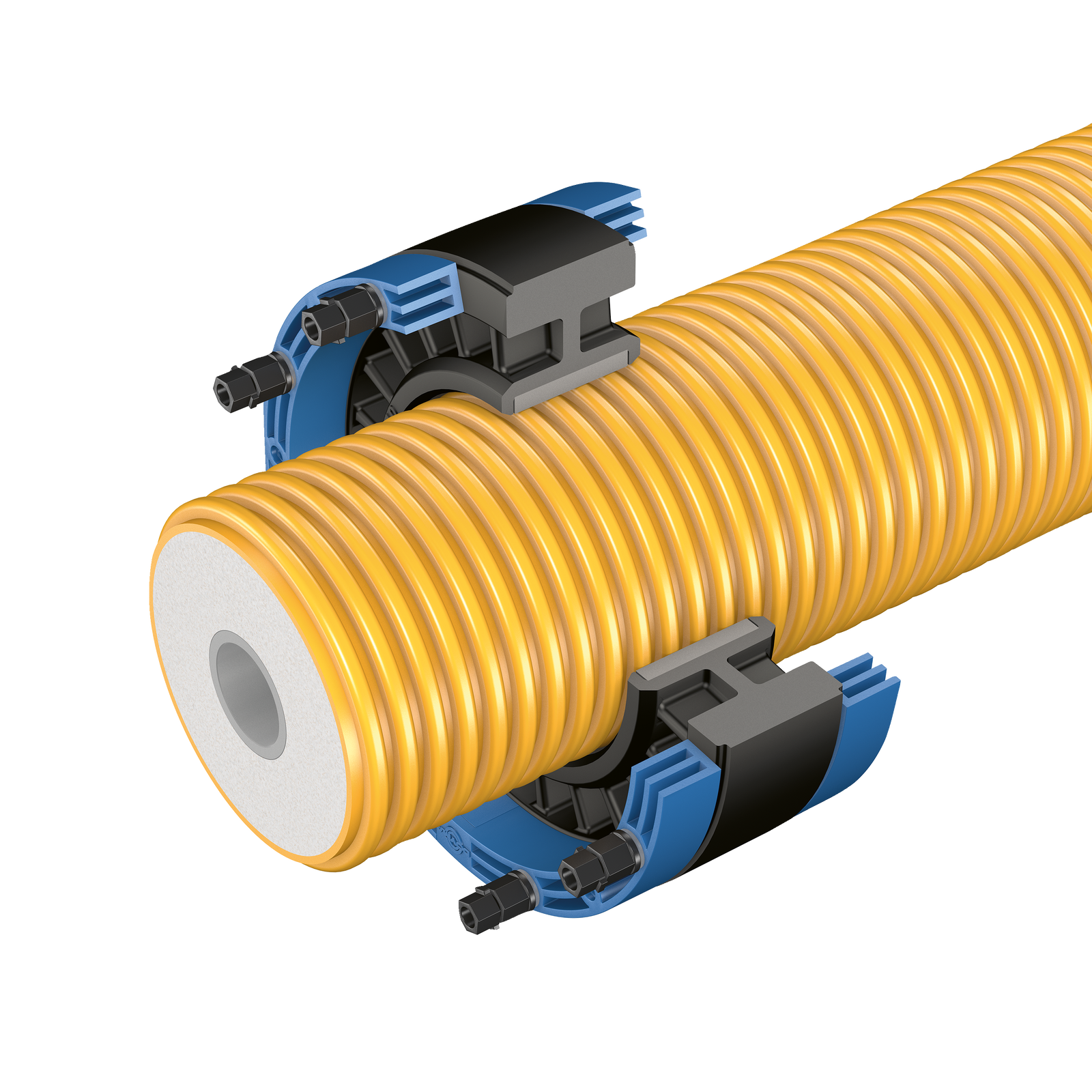

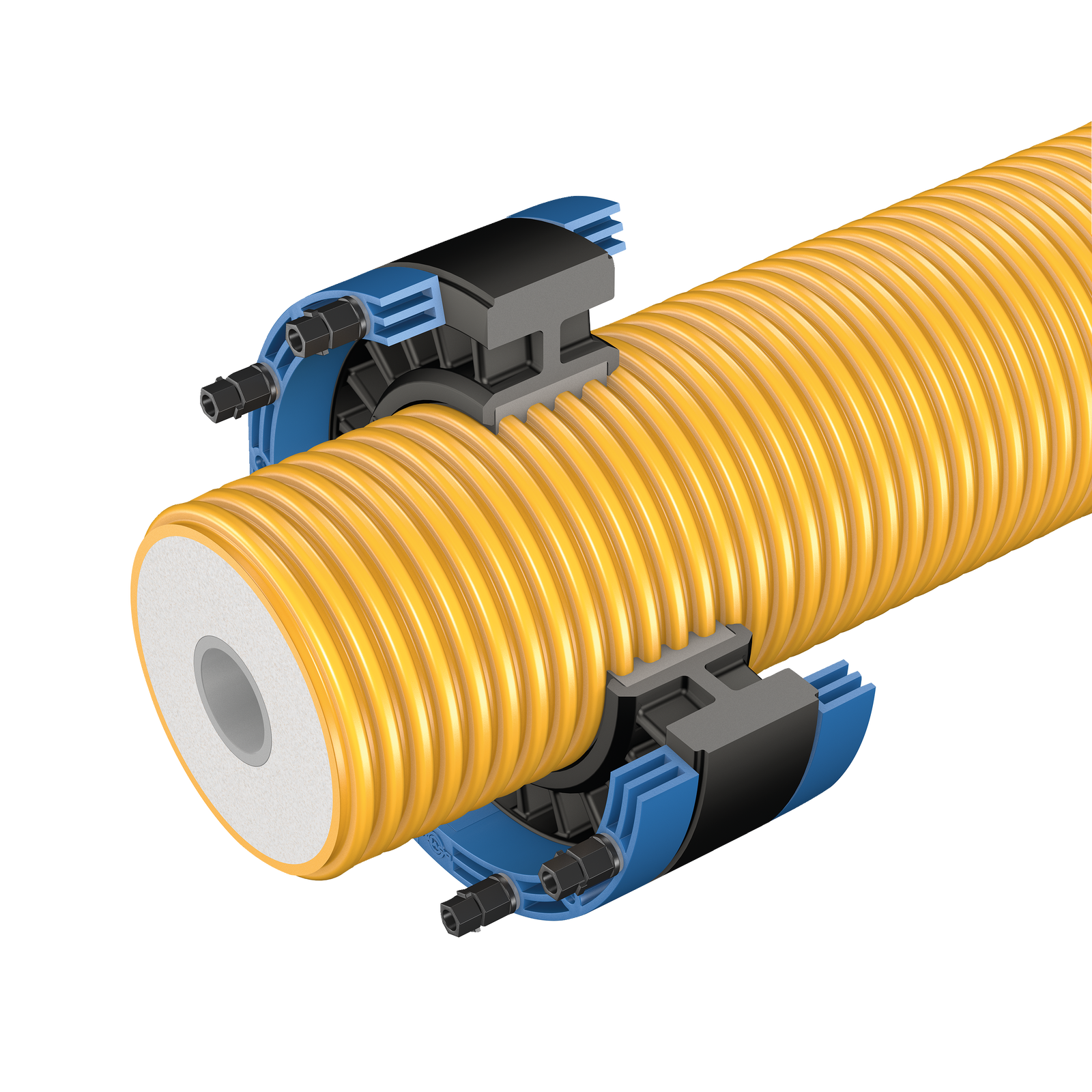

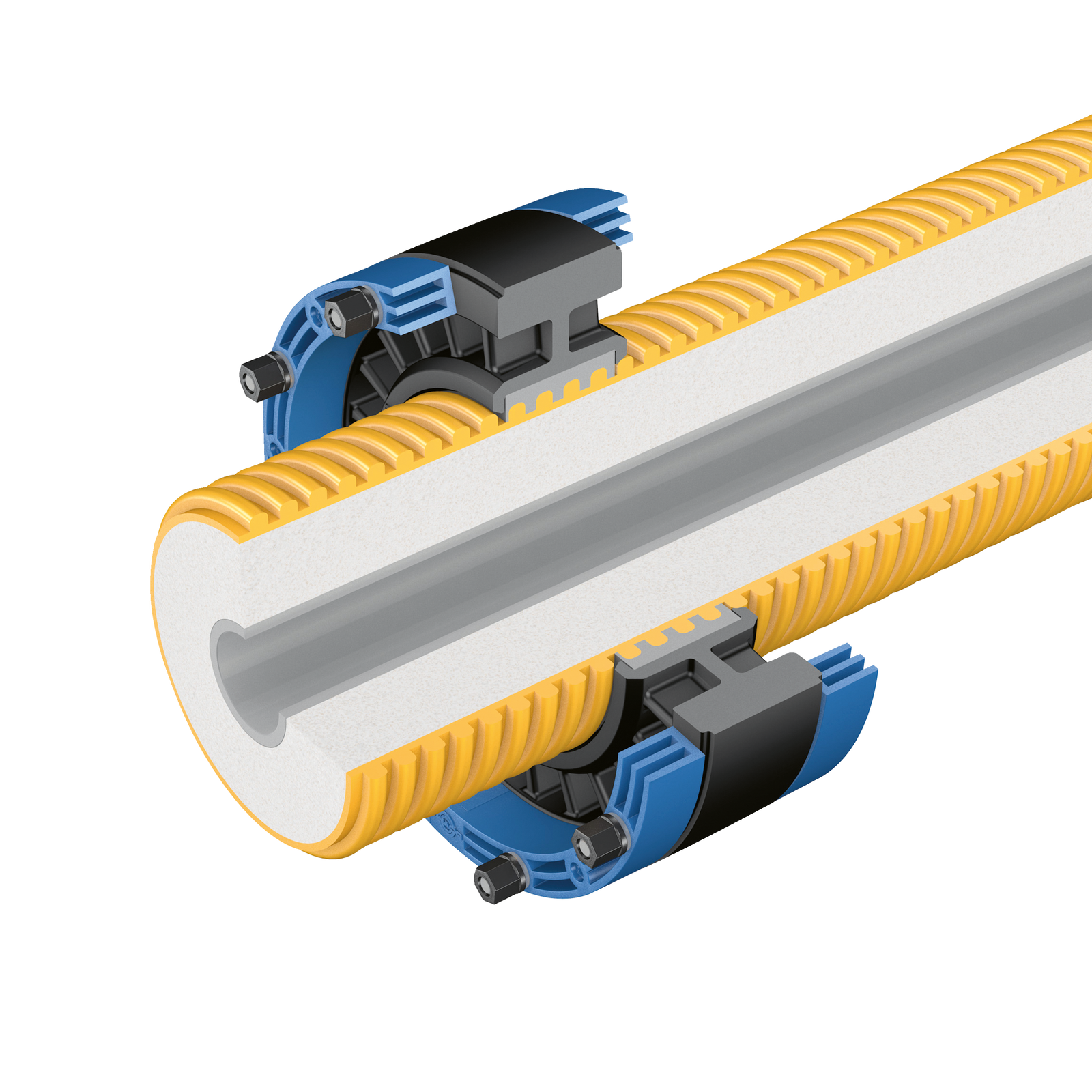

Curaflex Nova® Senso

  • Sealing of penetrations
  • Use in lining pipe provided by the customer or WU concrete core drilling (white tank)
  • Ideal for flexible pipes
Dealer search
Pressing water
Non-pressing water

Technical details

  • Tested in accordance with FHRK test basis GE 101 in DN 200 without radial load in accordance with 4.3.2 (No. G 30 322-2-8) - FHRK 45 D10
  • Gas and watertight
  • Radon-tight - in accordance with FHRK data sheet MB 101, meets the requirements for radon precaution areas
  • Angled media pipes up to 8º possible
  • 45 mm sealing width

Areas of use

  • Sealing of penetrations
  • Use in lining pipe provided by the customer or WU concrete core drilling (white tank)
  • Ideal for flexible pipes

Product benefits

  • with ITL system for optimum contact pressure - can also be installed with a cordless screwdriver
  • with STS for gentle sealing, making it ideal for flexible pre-insulated plastic pipes and flexible cable conduits
  • Permanently tight without retensioning (maintenance-free)
  • higher sealing performance of the sealing insert thanks to DOYMA-Grip

  • blue frame rings made of high-performance plastic
  • Elastomer sealing ring, 45 mm wide, made of EPDM (DOYMA-Grip), with butyl insert
  • ITL nuts
  • A4 stainless steel screws

Downloads

  • Installation situation

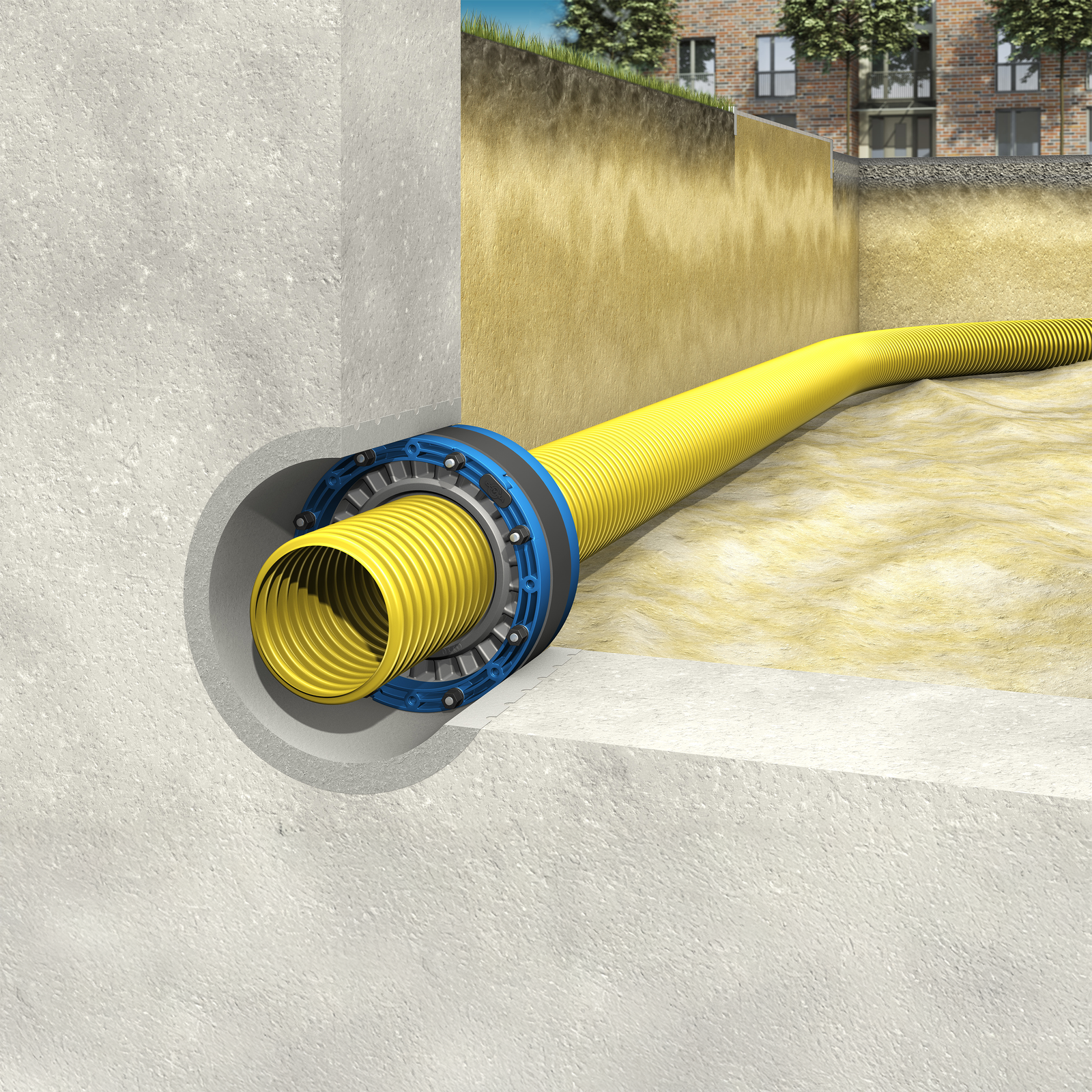

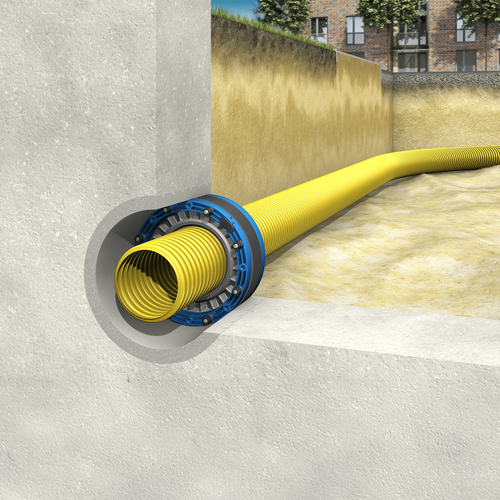

    Example Installation of Curaflex Nova® Senso

Aerial view of a large sewage treatment plant with various treatment stages.

Münchehofe sewage treatment plant

The Münchehofe wastewater treatment plant not only purifies the wastewater of 300,000 people. It also makes a significant contribution to the security of the drinking water supply in Berlin.
