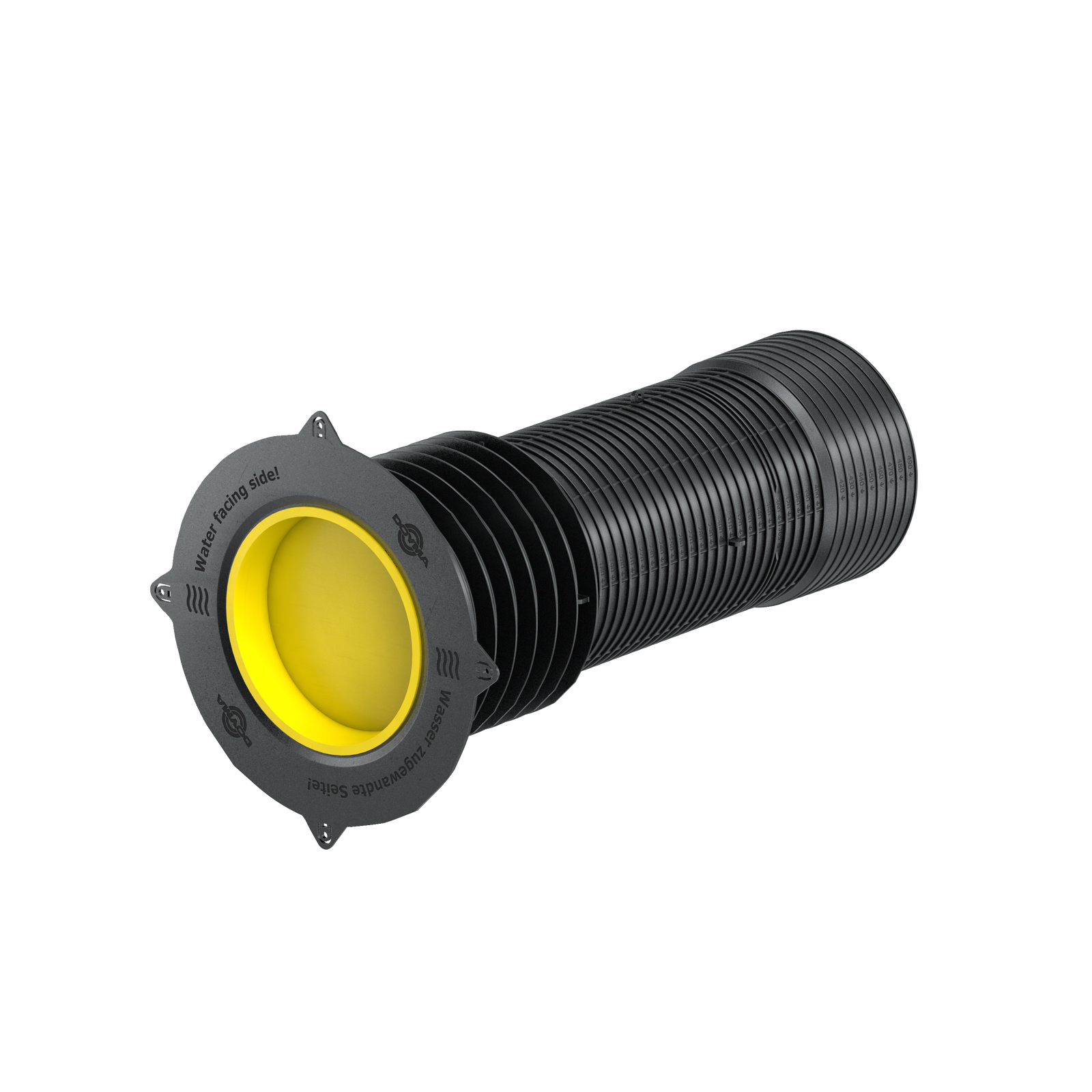

Curaflex Nova® KFR
- Recess for penetrations
- Use in structures to be built
- for WU concrete constructions (white tank)
- for element walls
- when used with liquid applied waterproofing materials (black tank)
- with adhesive flange according to DIN 18533
Curaflex Nova® KFR
added to
.
Curaflex Nova® KFR
removed from
.
Technical details
- gas- and watertight
- Tested in accordance with FHRK test basis GE 102
- Radon-tight according to FHRK data sheet MB 101, fulfills the
- requirements for radon precautionary areas
Areas of use
- Recess for penetrations
- Use in structures to be built
- for WU concrete constructions (white tank)
- for element walls
- when used with liquid applied waterproofing materials (black tank)
- with adhesive flange according to DIN 18533
Product benefits
- Optimally designed inner wall to accommodate DOYMA sealing systems and house entries
- for waterproof concrete constructions (white tanks)
- Suitable for element walls
- with adhesive flange for the on-site application of a:
- Thick coating (KMB/PMBC) for pressing water (W2.1-E)
- Flexible polymer-modified thick coatings (FPD) for pressing water up to 3 m water column (W2.1-E)
- mineral sealing slurry (MDS) or a liquid plastic (FLK) for non-pressing water (W1-E or W3-E)
- a fresh concrete composite foil (FBV)
- Length scale simplifies on-site length adjustment
- Can be extended on site for component thickness > 500 mm
- Low weight
- Fastening eyelets allow variable fixing in the reinforcement
- Sealing caps on both sides protect the inner surfaces
