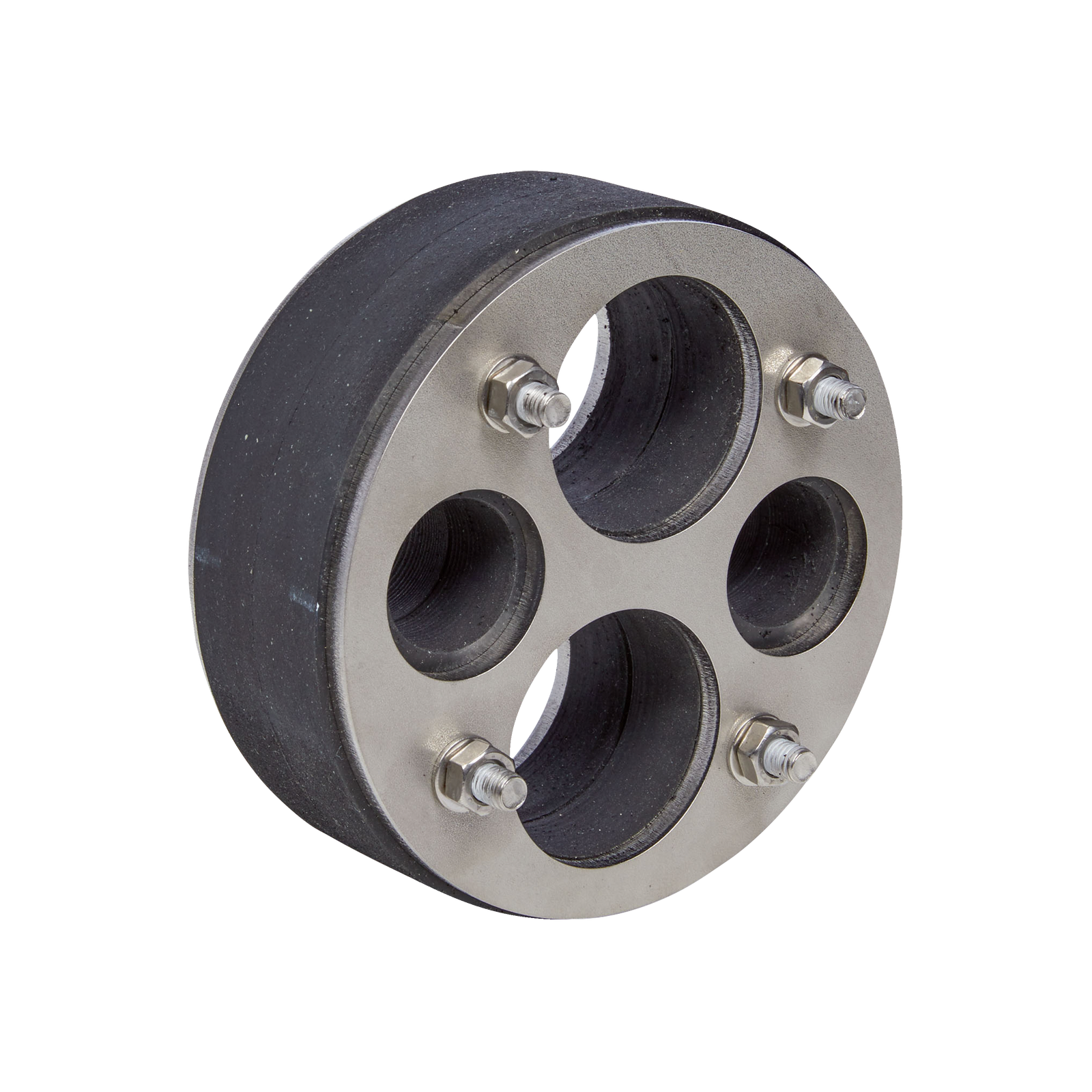

HKD DOMO-DW-M
- Use in lining pipe provided by the customer or WU concrete core drilling (white tank)
HKD DOMO-DW-M
added to
.
HKD DOMO-DW-M
removed from
.
Technical details
- Tested in accordance with FHRK test basis GE 101 (No. G 30 322-2-6) - FHRK 40 LD10
- Tight against pressing water (40 mm sealing width)
- Radon-tight - in accordance with FHRK data sheet MB 101. Meets the requirements for radon precautionary areas
- All metal parts made of stainless steel 1.4301 (V2A/Inox 304), optionally 1.4571 (V4A/Inox 316)
- Sealing material EPDM solid rubber, optionally NBR
- Gas-tight
Areas of use
- Use in lining pipe provided by the customer or WU concrete core drilling (white tank)
Product benefits
- The HKD DOMO-DW-M is characterized by its robust craftsman quality.
- The design for sealing several pipes and cables in one opening.
- All metal parts made of stainless steel 1.4301 (V2A/Inox 304), optionally 1.4571 (V4A/Inox 316)
- Seal material EPDM solid rubber, optionally NBR
All special seals that deviate from the standard are supplied as type HKD DISO with 40 mm EPDM elastomer, from DN 800 with 2 x 40 mm EPDM elastomer, against pressing and non-pressing water and in stainless steel 1.4301 (V2A / Inox 304). Optionally, the HKD DISO is also available in split form for pipes that have already been laid, in stainless steel 1.4571 (V4A / Inox 316) and with other elastomer compounds, e.g. NBR.
