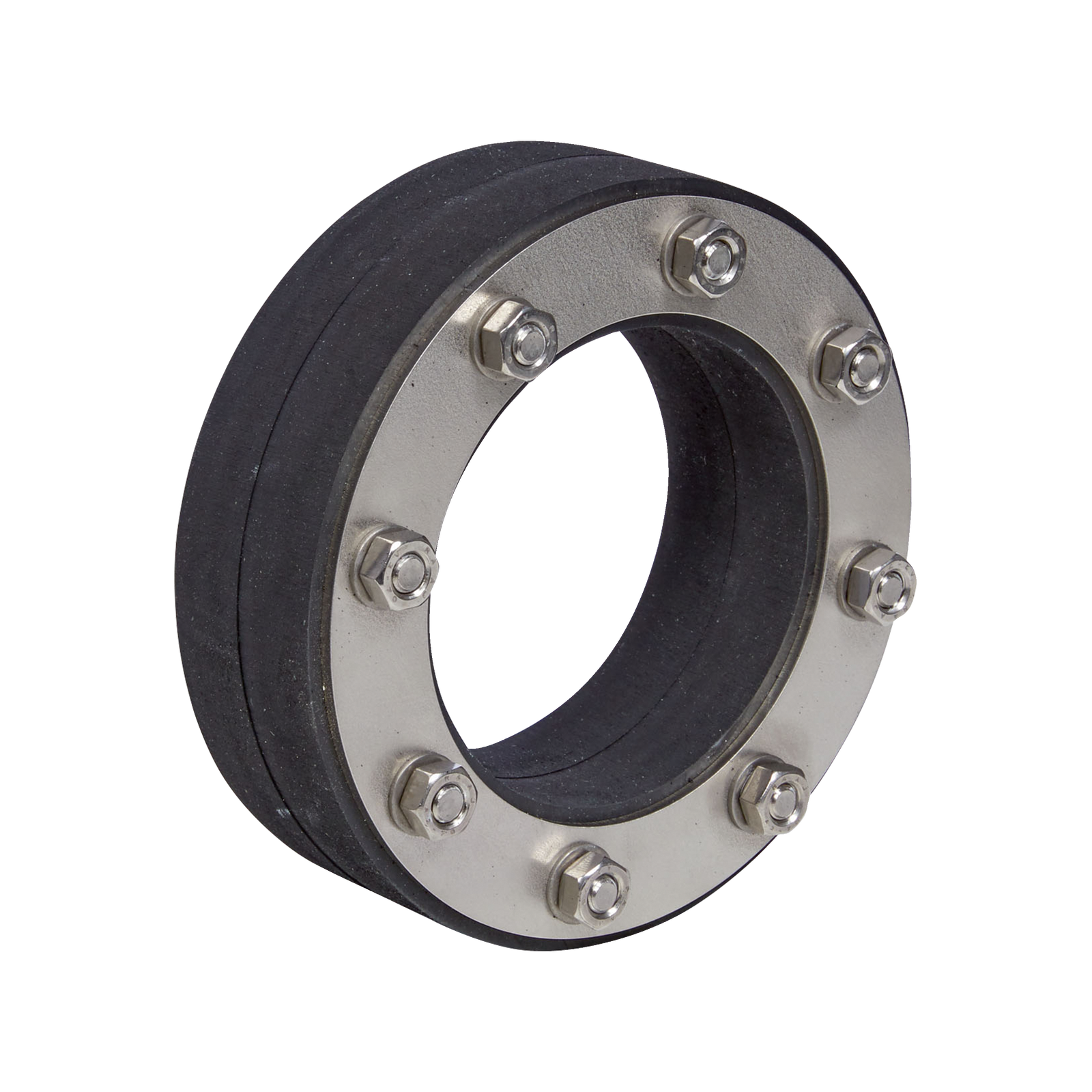

HKD DOMO-DW
- Use in lining pipe provided by the customer or WU concrete core drilling (white tank)
Technical details
- Tested in accordance with FHRK test basis GE 101 (No. G 30 322-2-6) - FHRK 40 LD10
- Tight against pressing water (40 mm sealing width)
- Radon-tight - in accordance with FHRK data sheet MB 101. Meets the requirements for radon precautionary areas
- All metal parts made of stainless steel 1.4301 (V2A/Inox 304), optionally 1.4571 (V4A/Inox 316)
- Sealing material EPDM solid rubber, optionally NBR
- Gas-tight
Areas of use
- Use in lining pipe provided by the customer or WU concrete core drilling (white tank)
Product benefits
- The HKD DOMO-DW is characterized by its robust craftsman quality.
- The press rings used are made from a single piece and cover the rubber seal over a large area. This ensures even and secure pressing.
- Made entirely of V2A stainless steel.
- All metal parts made of stainless steel 1.4301 (V2A/Inox 304), optionally 1.4571 (V4A/Inox 316)
- Seal material EPDM solid rubber, optionally NBR
For further standard dimensions per DN, see page 2. All special seals deviating from the standard are supplied as type HKD DISO with 40 mm EPDM elastomer, from DN 800 with 2 x 40 mm EPDM elastomer, against pressing and non-pressing water and in stainless steel 1.4301 (V2A / Inox 304). Optionally, the HKD DISO is also available in stainless steel 1.4571 (V4A / Inox 316) and with other elastomer compounds, e.g. NBR.
