New
Quadro-Secura® Quick/C
- One-way house entry with injection system
- For use in the most common wall types with sealing according to DIN 18533 W2.1-E or for WU concrete core drilling (white tank)
- for all cable types (e.g. energy, glass fiber)
- with sealing flange according to DIN 18533 (black tray)
- Ideal for new connections in existing buildings
Quadro-Secura® Quick/C
added to
.
Quadro-Secura® Quick/C
removed from
.
Technical details
- Gas and pressurized water-tight
- Radon-safe - in accordance with FHRK leaflet MB 101
- Suitable for open construction
- For the most common cable diameters
- Integrated blind seals
- Can be used either as a single or multiple seal
- without additional shrinkage
- for drill holes in the most common wall types with sealing in accordance with DIN 18533 W2.1-E and waterproof concrete core drill holes (white tank)
Areas of use
- One-way house entry with injection system
- For use in the most common wall types with sealing according to DIN 18533 W2.1-E or for WU concrete core drilling (white tank)
- for all cable types (e.g. energy, glass fiber)
- with sealing flange according to DIN 18533 (black tray)
- Ideal for new connections in existing buildings
Product benefits
- with Easy Fix system for simple, quick and safe installation
- Installation without additional clamping device
- Ideal for sealing on existing thick bitumen coatings
- Can also be used with standard hollow bricks without backfilling
- Short installation times
- Suitable for building renovations
- Quadro-Secura® Quick/C
- Expansion resin
Media
skip
-

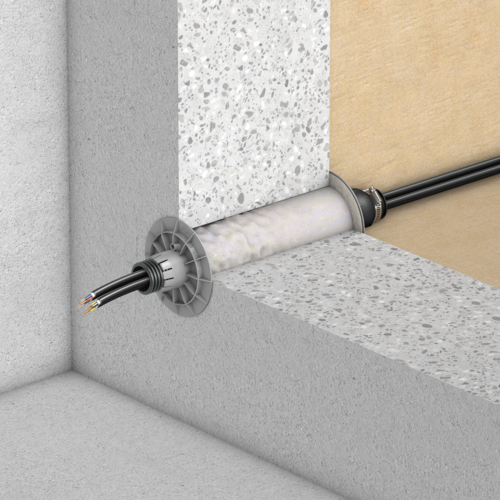

Installation situation
