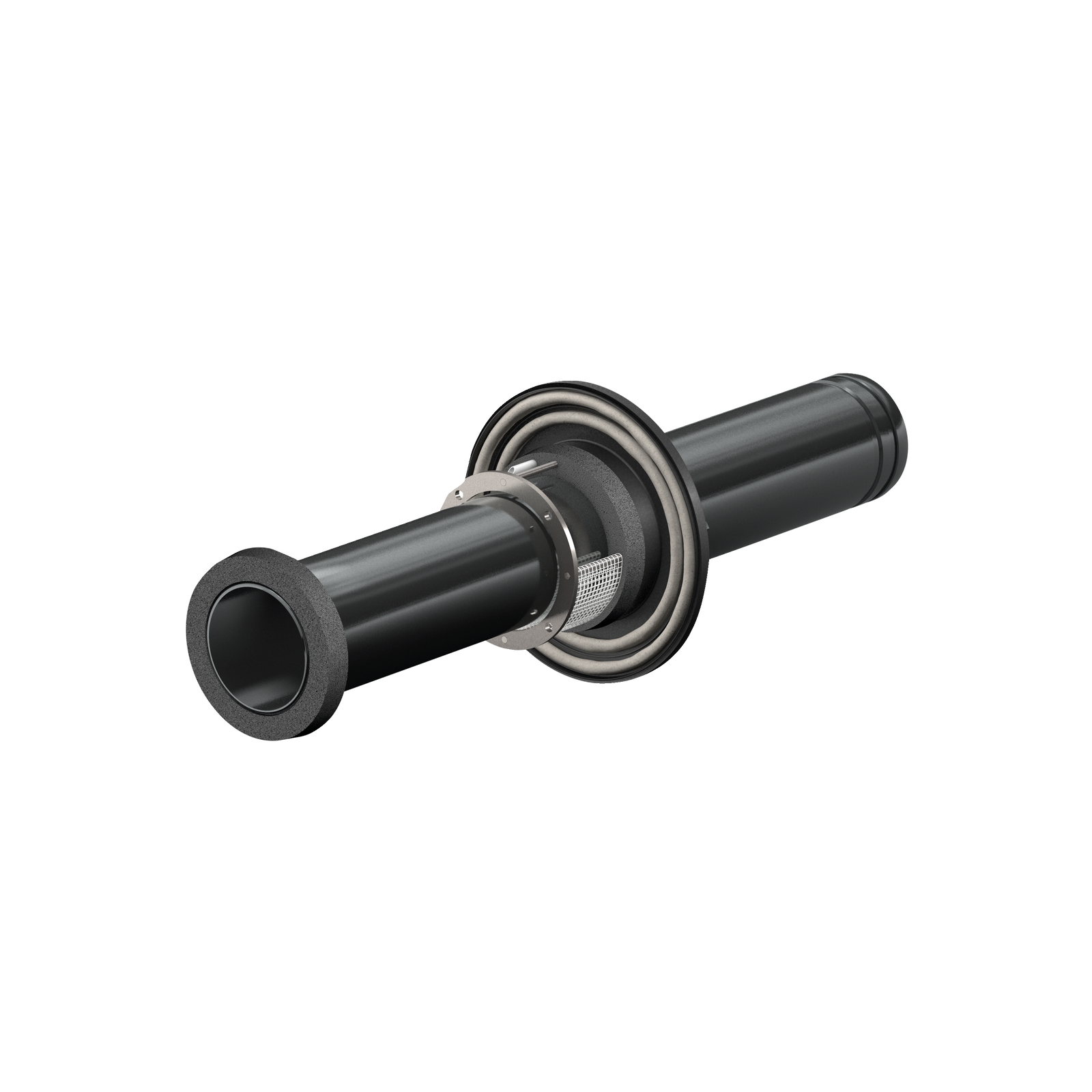

Quadro-Secura® Quick/H
- Single-purpose house entry with injection system
- For use in the most common wall types with sealing according to DIN 18533 W2.1-E or for WU concrete core drilling (white tank)
- to accommodate the sealing systems Curaflex Nova®
- with sealing flange according to DIN 18533 (black tray)
- ideal for new connections in existing buildings
Quadro-Secura® Quick/H
added to
.
Quadro-Secura® Quick/H
removed from
.
Technical details
- Gas and pressurized water-tight up to 1 bar

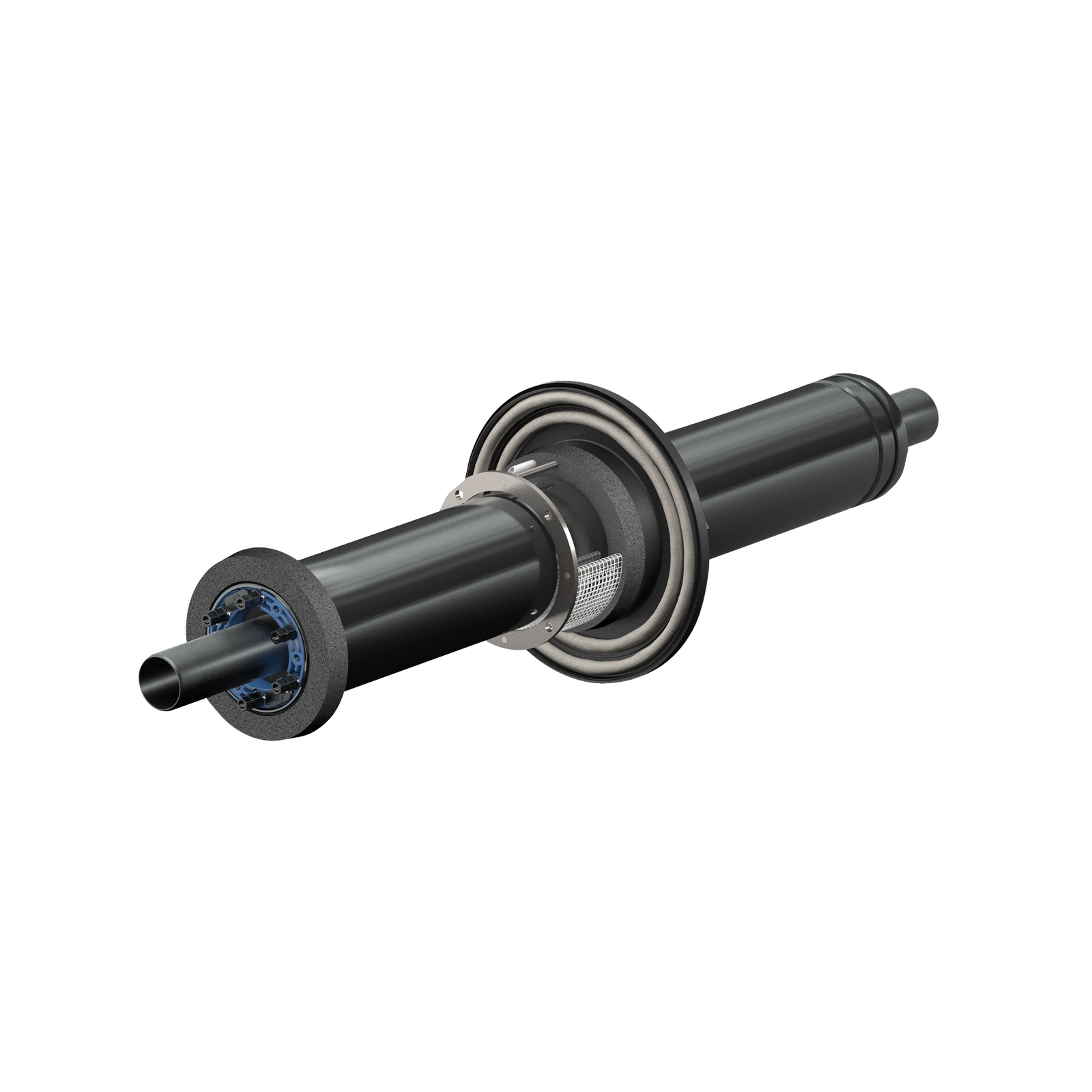

- integrated sleeve pipe suitable for the Curaflex Nova® Uno and Curaflex Nova® Multi sealing systems
- for drill holes in the most common wall types with sealing in accordance with DIN 18533 W2.1-E and waterproof concrete core drill holes (white tank)
- Relining possible when connecting casing pipes
- Sleeve pipe offers connection option for rigid or flexible DN 110 casing pipes
Areas of use
- Single-purpose house entry with injection system
- For use in the most common wall types with sealing according to DIN 18533 W2.1-E or for WU concrete core drilling (white tank)
- to accommodate the sealing systems Curaflex Nova®
- with sealing flange according to DIN 18533 (black tray)
- ideal for new connections in existing buildings
Product benefits
- with Easy Fix System for simple, quick and secure installation
- with ITL system for optimum contact pressure
- Installation without additional clamping device
- Ideal for sealing on existing thick bitumen coatings
- Connection of casing pipes possible
- Can also be used with standard hollow bricks without backfilling
- Short installation times
- Suitable for building renovations
