Curaflex® C

  • Sealing of penetrations
  • Use in lining pipe provided by the customer or WU concrete core drilling (white tank)
Dealer search
Pressing water

Technical details

  • Tested in accordance with FHRK test specification GE 101 (No. G 30 322-2-2) - FHRK 57 LD10
  • Gas and water-tight
  • Radon-tight - in accordance with FHRK data sheet MB 101, meets the requirements for radon precaution areas
  • Angles of the service pipes up to 8º possible
  • Absorption of axial movements
  • Double-sealing

Areas of use

  • Sealing of penetrations
  • Use in lining pipe provided by the customer or WU concrete core drilling (white tank)

Product benefits

Large sealing areasLastingly tight without retensioning (maintenance-free)Higher sealing performance of the sealing insert thanks to DPS and DOYMA-GripSystem component, without cuts or splits, with watertight welded bolts.

  • Frame rings: asymmetrically profiled steel rings (DPS up to KB/DN 350), ggv corrosion protection coating; optionally made of stainless steel 1.4301 (V2A) or 1.4571/1.4404 (V4A)
  • Rubber seal: Elastomer, 2 x 27 mm thick EPDM seal (DOYMA-Grip), optionally EPDM-TW, NBR (fuel/oil resistant) or silicone (high temperature resistant) or FPM (chemical resistant)
  • Orange center ring (up to KB/DN 350)

Downloads

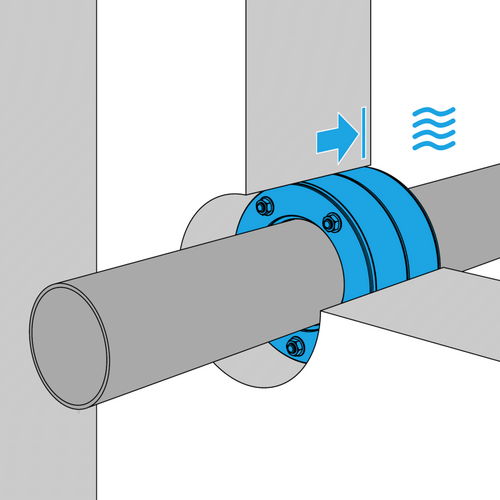

  • Installation situation

    Example Installation of Curaflex® C

Aerial view of a wooden high-rise building overlooking the harbour area, illuminated by the warm light of the setting sun.

roots

Curaflex® C gasket inserts were installed in the highest wooden high-rise building "roots", the DOYMA reference object.
