Curaflam® BSHN
- for non-combustible pipes
- Trades: waste water, rainwater, drinking water, gas, heating, cooling, sprinklers, compressed air, district heating
Curaflam® BSHN
added to
.
Curaflam® BSHN
removed from
.
Technical details
INSTALLATION CONDITIONS

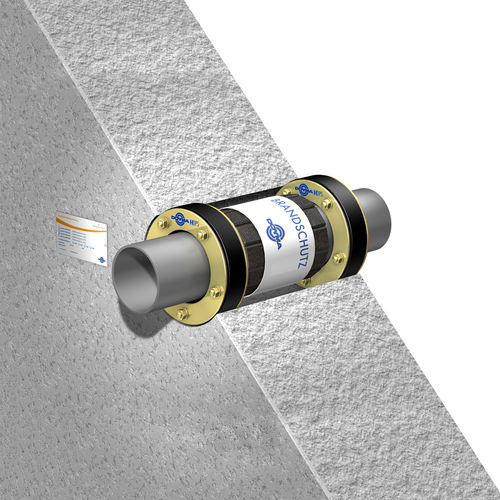

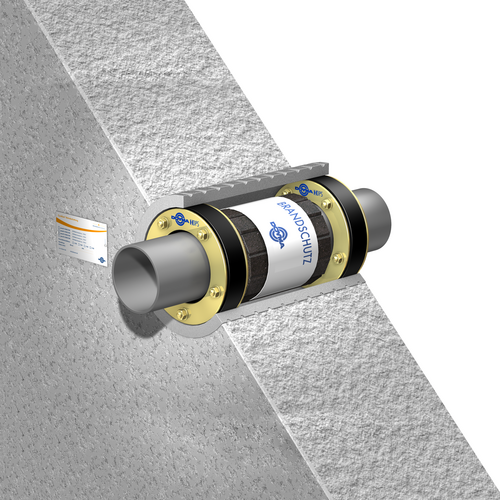

- can be used in core drill holes or special fiber cement lining pipe.
- up to 4 pipes through one penetration seal:
Wall: up to 3 pipes with Ø ≤ 60.3 mm
Ceiling: up to 4 pipes with Ø ≤ 54.0 mm
- in ceilings made of aerated concrete, reinforced concrete, concrete with a thickness ≥ 175 mm
- in walls made of aerated concrete, reinforced concrete, concrete, masonry with a thickness ≥ 175 mm
- 2 fire protection packs are required for wall thicknesses ≥ 400 mm
Areas of use
- for non-combustible pipes
- Trades: waste water, rainwater, drinking water, gas, heating, cooling, sprinklers, compressed air, district heating
Product benefits
FOR WATERTIGHT AND/OR GAS-TIGHT SEALING OF PIPES:
- made of steel, stainless steel, copper, cast iron Ø ≤ 325 mm
- made of aluminum Ø ≤ 160 mm
- Pre-insulated pipes made of steel, stainless steel, copper, cast iron (district heating)1) Total Ø ≤ 315 mm 4 2 x A BSHB
1) only wall ducts (wall thickness > 240 mm), see test certificate for details
APPROVED FOR INSULATION
- for pipes ≤ 42 mm Ø, a mineral fiber insulation shell (type Rockwool 800), each at least 500 mm long, with an insulation thickness of ≥ 20 mm must be attached to the pipe on both sides of the penetration seal
- for pipes > 42 mm Ø, a mineral fiber wire mesh mat, each at least 700 mm long, with an insulation thickness of ≥ 80 mm must be attached to the pipe on both sides of the penetration seal

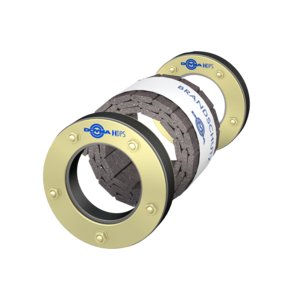

- PUR foam incl. PE-HD casing pipe (district heating) Assignment of the required products see 4 2 x A BSHB
Please refer to the certificate of usability for detailed information regarding the areas of application and regulations for the design.
Media
skip
-
Installation situation
-
Installation situation
