Curaflam® BSHB
- for flammable pipes
- Trades: waste water, rainwater, drinking water, heating, compressed air, pneumatic tubes
Curaflam® BSHB
added to
.
Curaflam® BSHB
removed from
.
Technical details
INSTALLATION CONDITIONS

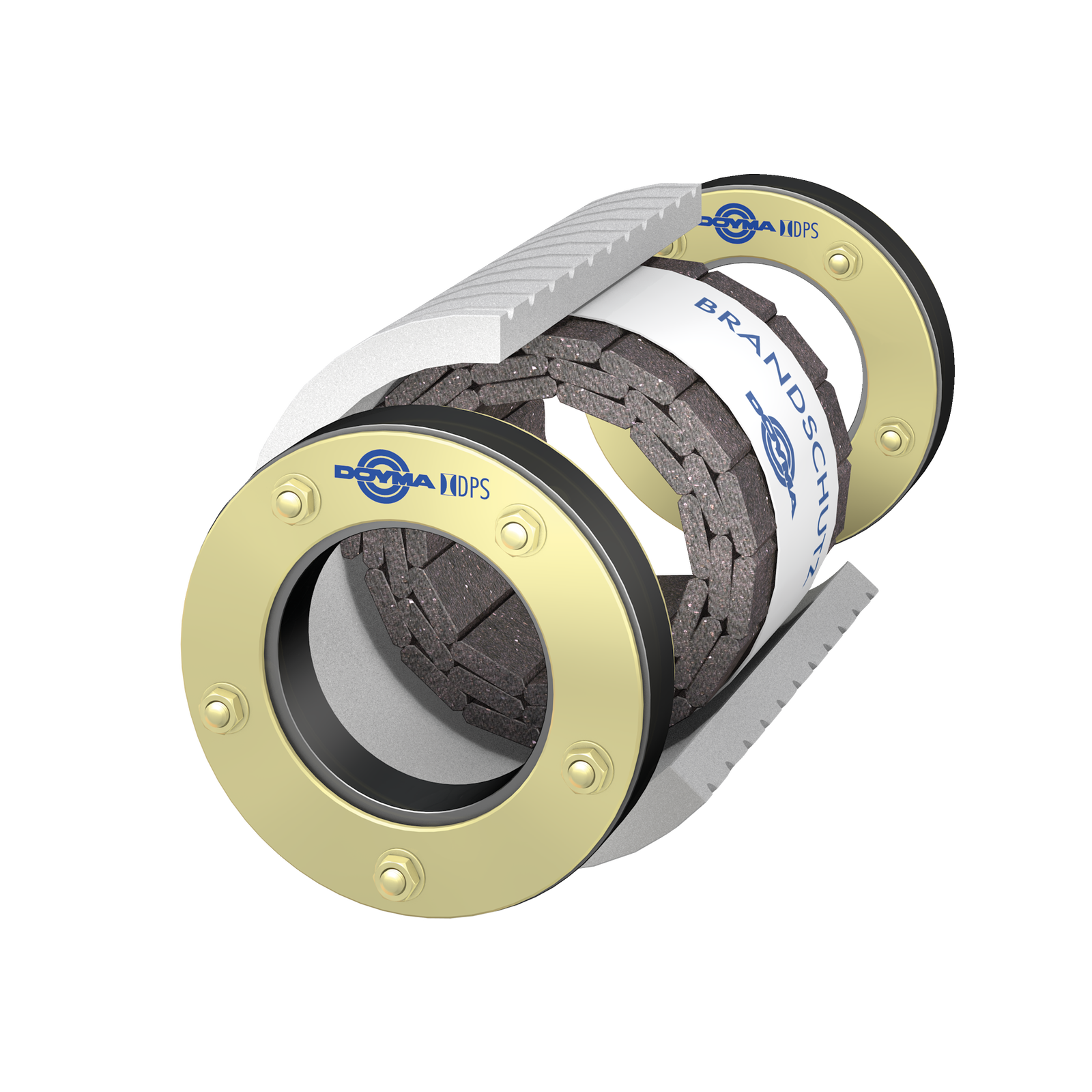

- Can be used in core drill holes or special fiber cement lining pipes
- up to 4 pipes (Ø ≤ 60.3 mm) simultaneously through one feed-through
- in ceilings made of aerated concrete, reinforced concrete, concrete with a thickness ≥ 150 mm*
- in walls made of aerated concrete, reinforced concrete, concrete, masonry with a thickness ≥ 100 mm*

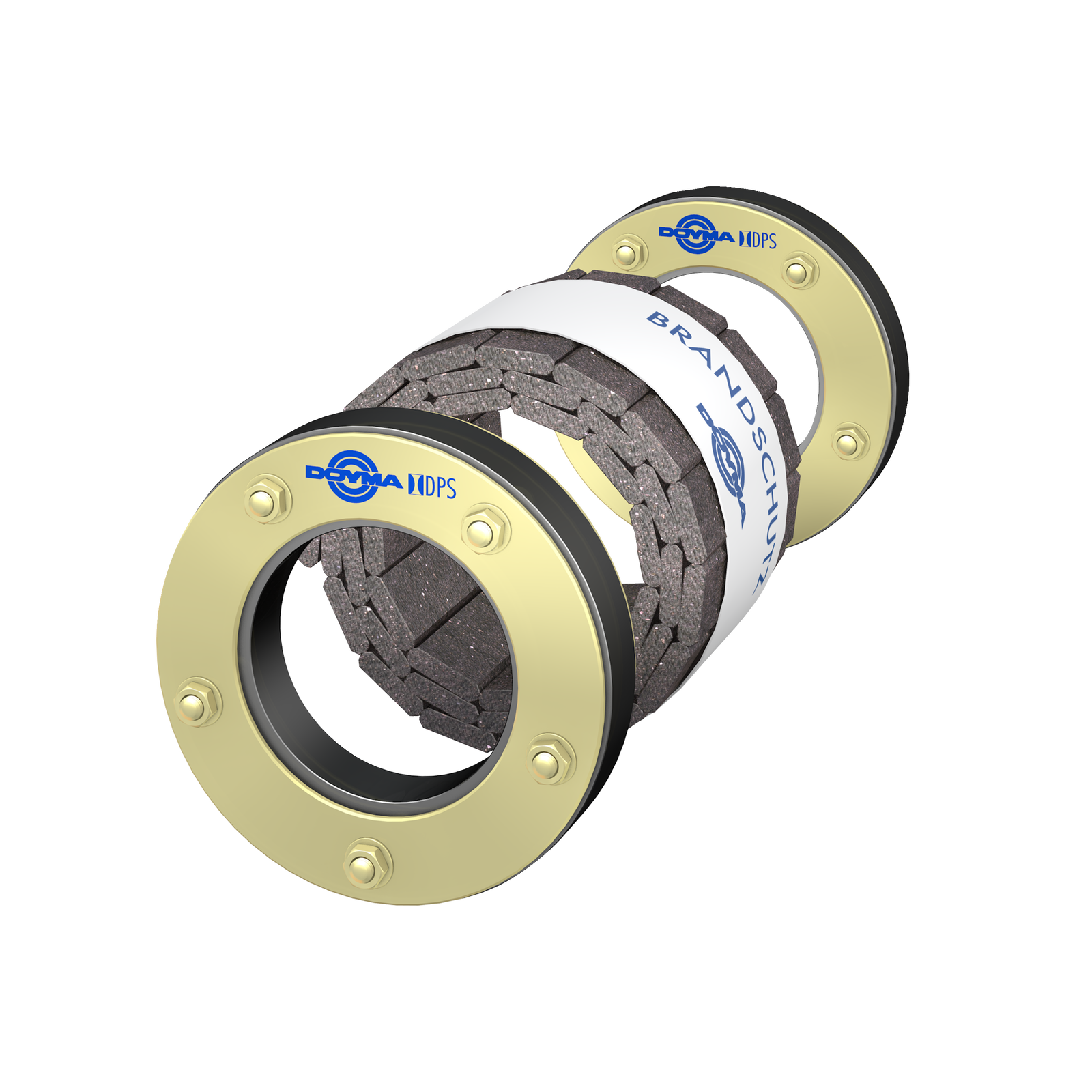

- 2 fire protection packs are required for wall thicknesses ≥ 400 mm
* Observe the general building authority approval, as greater component thicknesses are required depending on the pipe dimensions.
For penetrations without casing pipe, component thickness ≥ 175 mm.
Areas of use
- for flammable pipes
- Trades: waste water, rainwater, drinking water, heating, compressed air, pneumatic tubes
Product benefits
FOR WATERTIGHT AND / OR GAS-TIGHT SEALING OF PIPES MADE OF:
- PE-HD, LDPE, PB, PE-X, ABS, ASA: Ø ≤ 180 mm*
- PVC, PP: Ø ≤ 160 mm
- Sound-insulating waste water pipes
- Plastic composite pipes with aluminum insert Ø ≤ 110 mm
*for ceilings Ø ≤ 110 mm
Please refer to the general type approval for detailed information regarding the areas of application and design regulations.
Media
skip
-

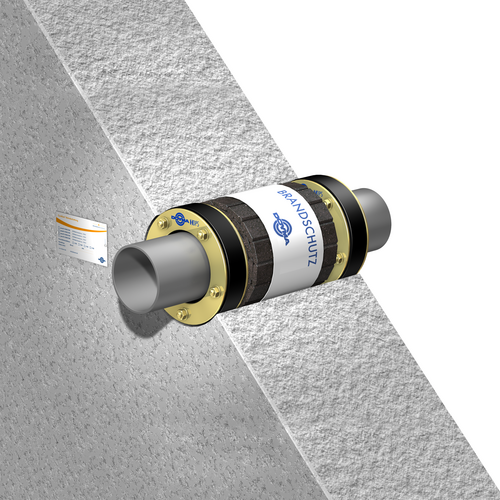

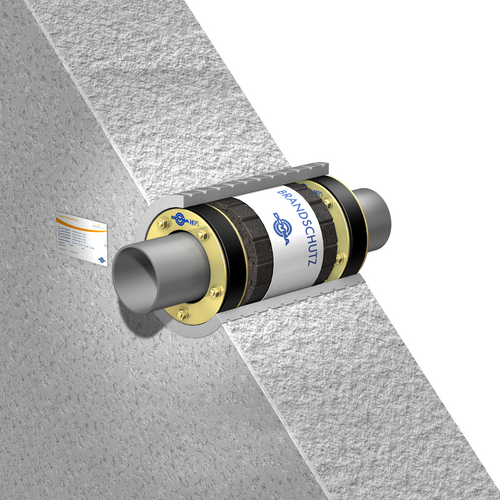

Installation situation
-
Installation situation
