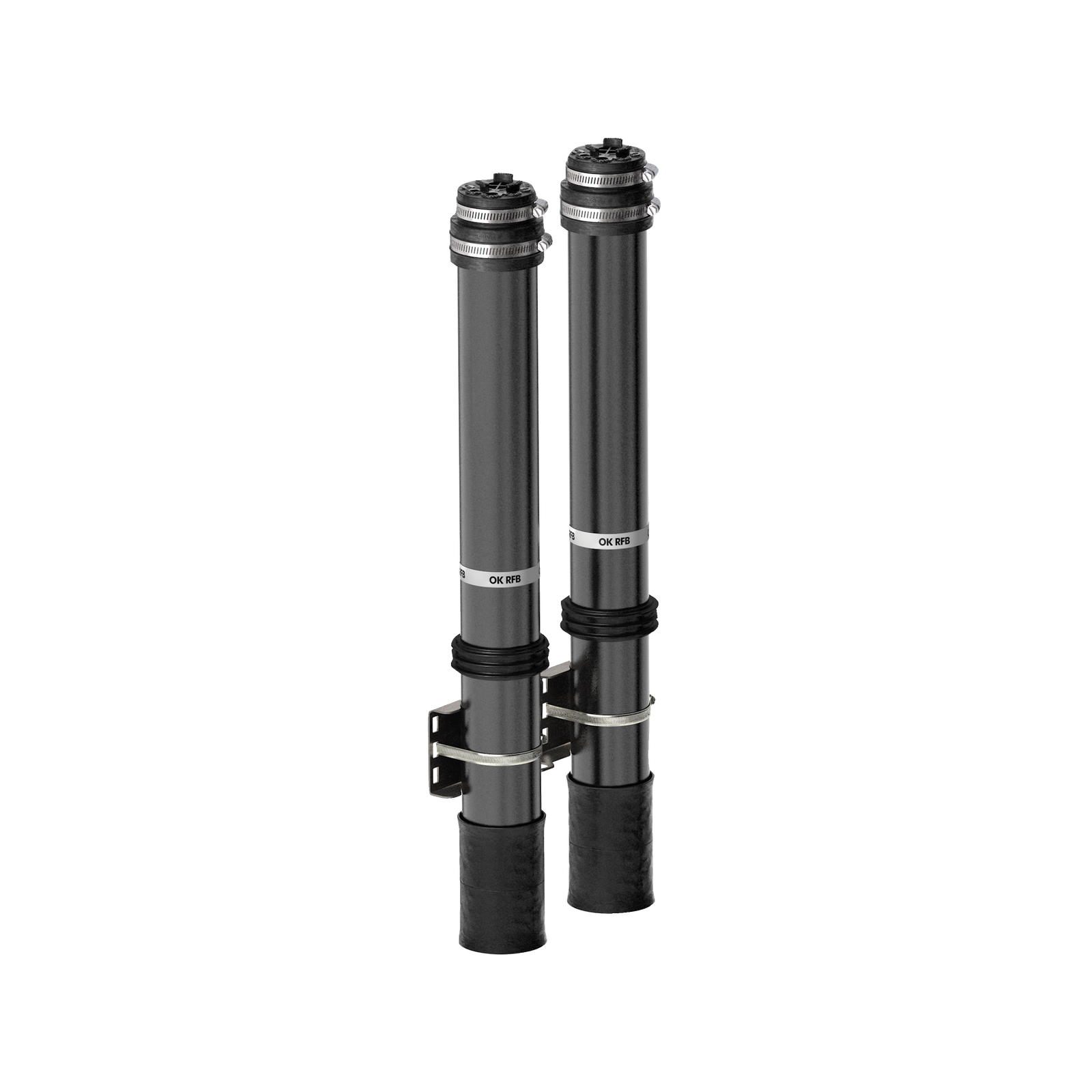

Quadro-Secura® O.Con 2

  • Single-compartment house design as a dual-line version
  • Use in structures yet to be built using waterproof concrete
  • Residential design for all types of cables or water lines
  • Ideal for connections in the garden or outdoors

Technical details

  • Gas- and pressure-water-tight up to 0.5 bar
  • Optional installation in accordance with DIN 18533 is possible
  • Suitable for immediate installation in the floor slab or for later installation in a recess in the floor slab
  • Connection option for flexible jacketed pipes DN 75
  • End plugs are pre-fitted with gas- and pressurized-water-tight blind plugs
  • Optionally available with 3 m, 6 m, 10 m, or 15 m of flexible casing pipe
  • For pipes with a diameter of 40 mm or larger, we recommend using the Quadro-Secura® E-BP-R Max

Areas of use

  • Single-compartment house design as a dual-line version
  • Use in structures yet to be built using waterproof concrete
  • Residential design for all types of cables or water lines
  • Ideal for connections in the garden or outdoors

Product benefits

  • Installation of wiring at a later date for use in gardens or outdoor areas
  • No drilling or similar work on the building is required for the later installation of pipes
  • Allows for versatile sealing of various types of cables
  • Short installation times

  • Plastic liner pipe, including blind cap
  • Connection sleeve for joining the liner pipe to the outer pipe
  • End plug for sealing the line

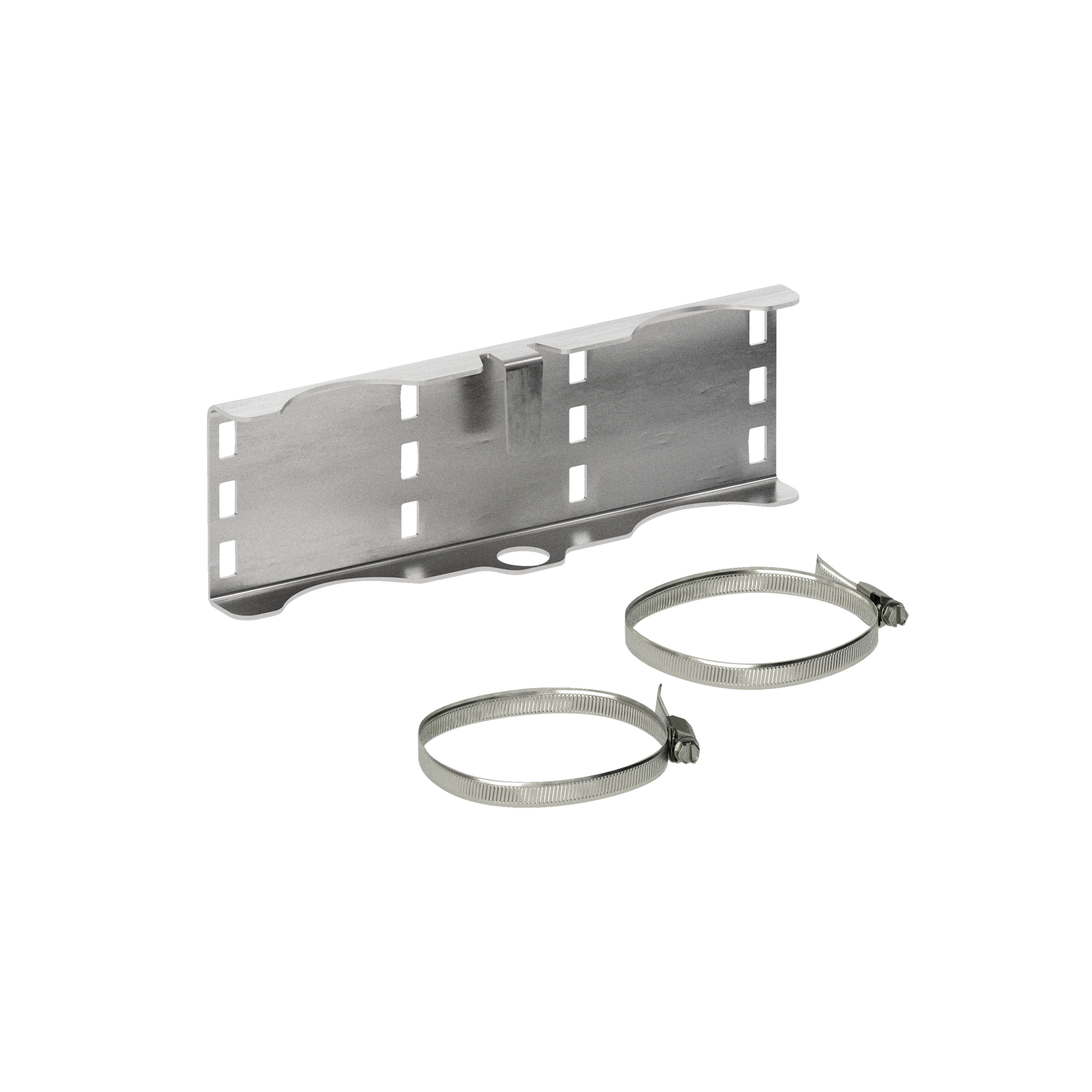

  • Retaining plate for connecting the liner pipes
