Quadro-Secura® O.Con 1
- Single-unit house design as single version
- Use in structures structures to be constructed from waterproof concrete
- House design for all cable types or water pipes
- Ideal for Connections in garden or outdoor areas
Quadro-Secura® O.Con 1
added to
.
Quadro-Secura® O.Con 1
removed from
.
Technical details
- Gas and pressurized water-tight up to 0.5 bar
- Optional installation in accordance with DIN 18533 possible
- Suitable for immediate installation in the floor slab or for later installation in a recess in the floor slab
- Connection option for flexible DN 75 casing pipes
- End plug is pre-assembled with gas and pressurized water-tight blind plugs
- Optionally available with 3 m, 6 m, 10 m or 15 m flexible casing pipe
- For pipes Ø ≥ 40 mm, we recommend using the Quadro-Secura® E-BP-R Max.
Areas of use
- Single-unit house design as single version
- Use in structures structures to be constructed from waterproof concrete
- House design for all cable types or water pipes
- Ideal for Connections in garden or outdoor areas
Product benefits
- later installation of cables for use in garden or outdoor areas
- No drilling or similar required on the building for subsequent installation of pipes
- diverse sealing of various pipes possible
- short installation times
- Plastic lining tube incl. dummy cover
- Connection sleeve for connecting the casing pipe/lining pipe
- End plug for line sealing
Media
skip
-

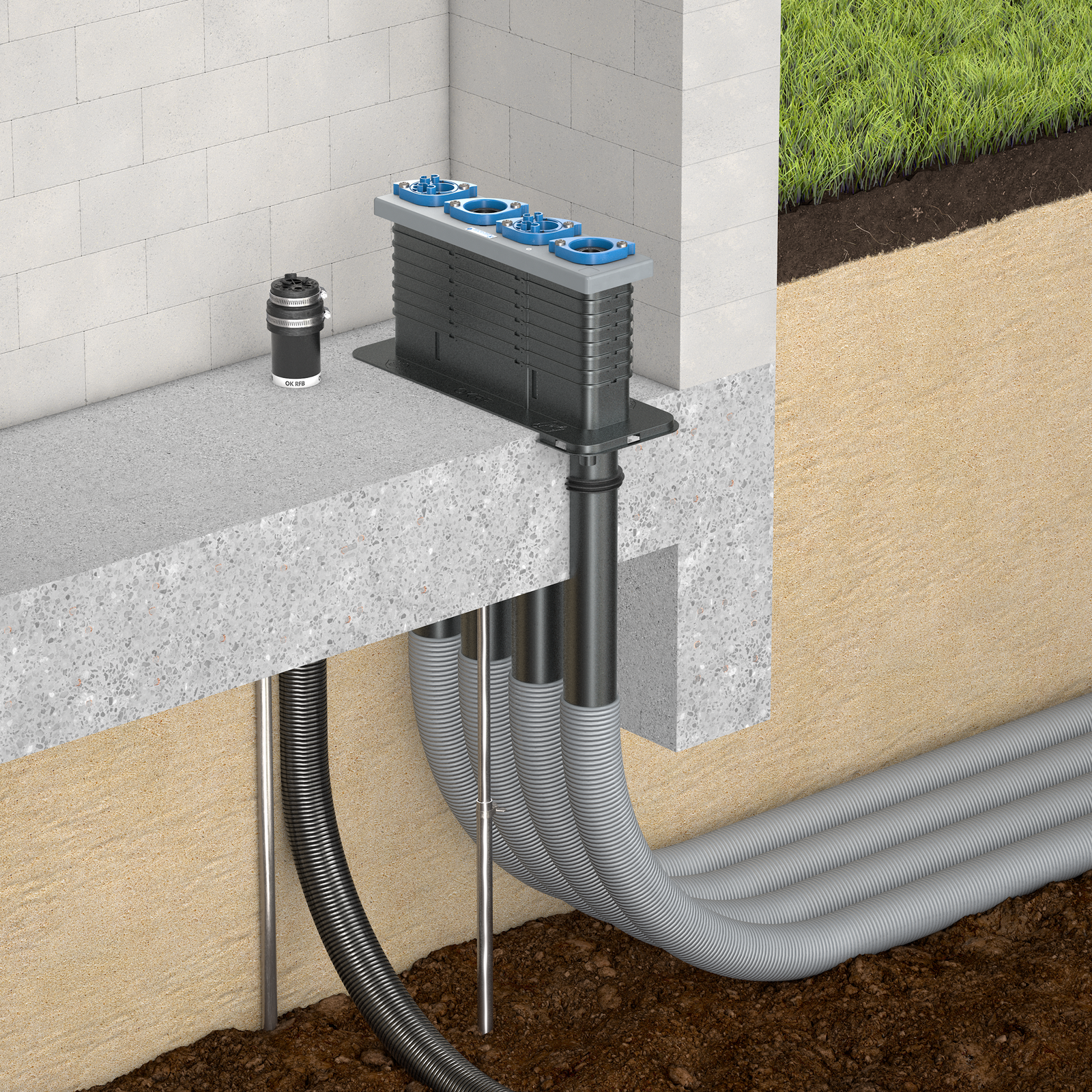

Installation situation
-

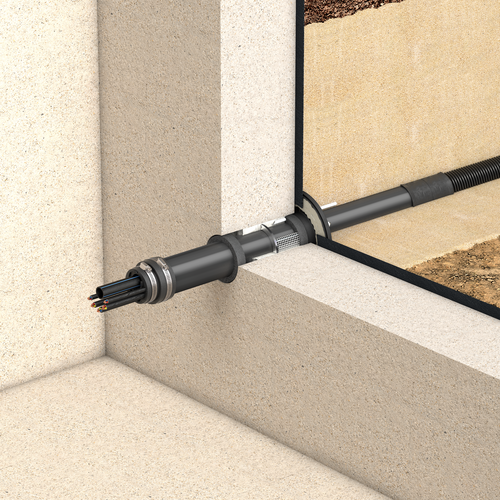

Installation situation
-

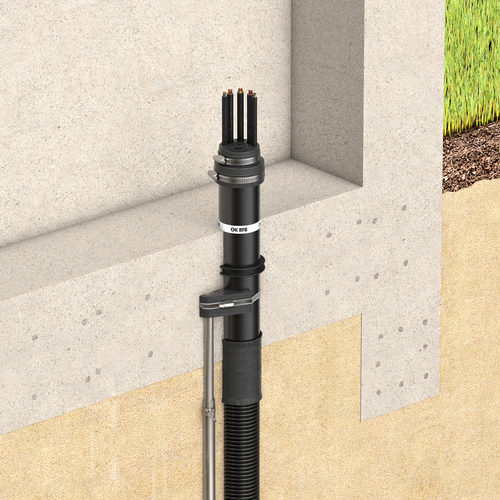

Installation situation
