Curaflex Nova® Multi
- Sealing of penetrations
- Use in lining pipe provided by the customer or WU concrete core drilling (white tank)
- for different pipe diameters
Curaflex Nova® Multi
added to
.
Curaflex Nova® Multi
removed from
.
Technical details
- Tested according to FHRK test basis GE 101 without radial load according to 4.3.2 (No. G 30 322-2-3) - FHRK 45 D10
- Gas and water-tight
- Radon-tight - in accordance with FHRK data sheet MB 101, meets the requirements for radon precaution areas
- Angles of the service pipes up to 8º possible
- Absorption of axial movements
- 45 mm sealing width

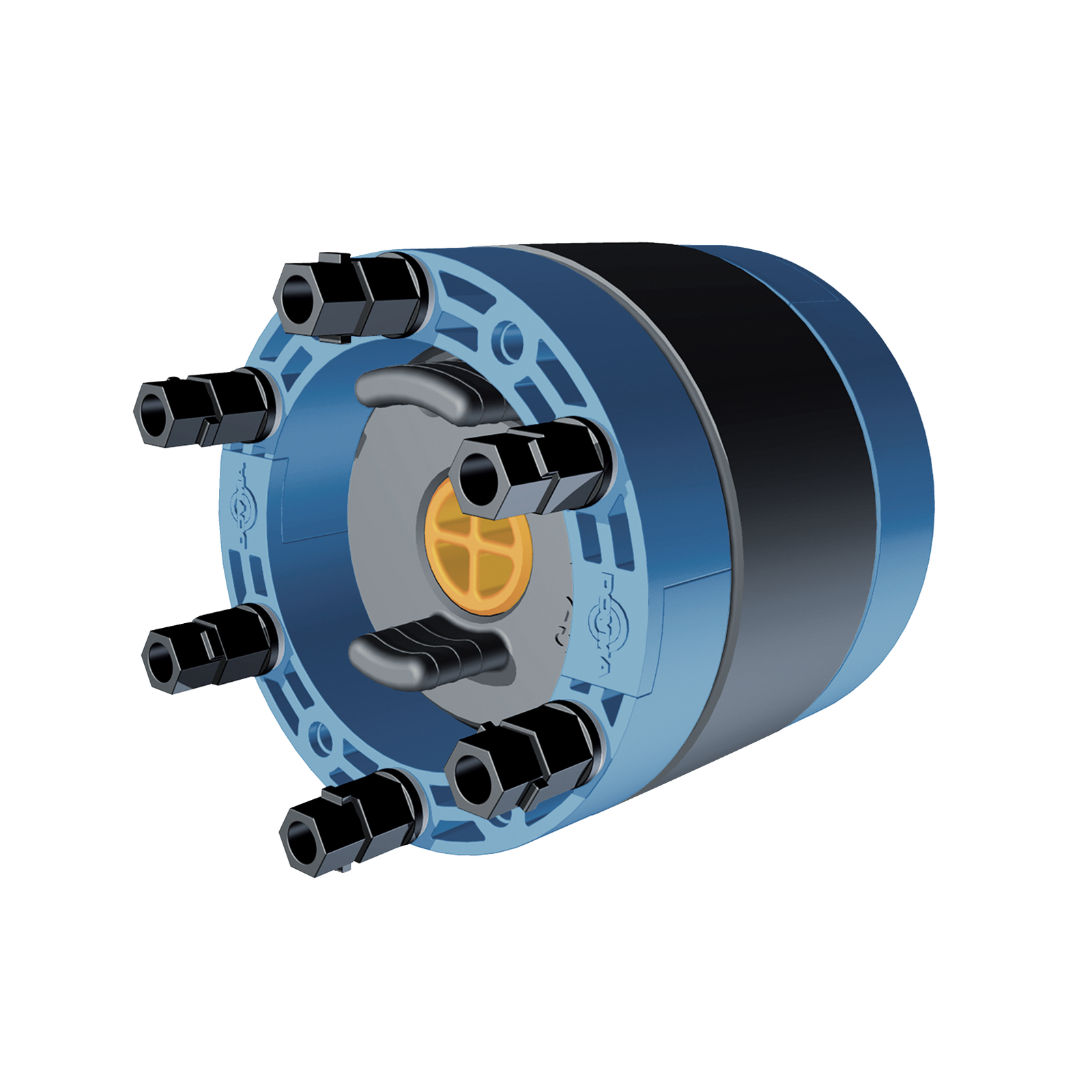

- DN 100 sealing blind and from 20 - 63 mm

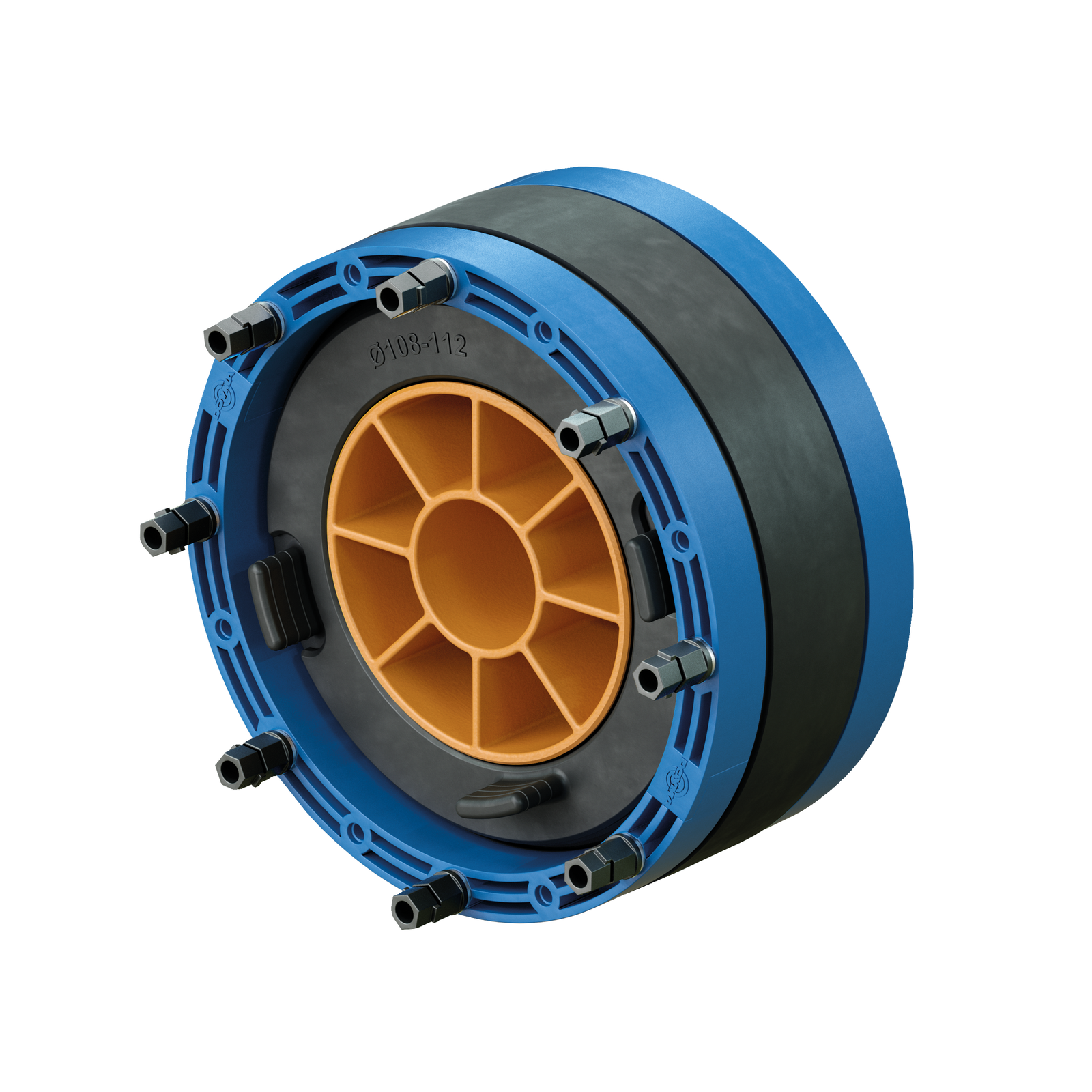

- DN 200 sealing blind and from 108 - 160 mm
Areas of use
- Sealing of penetrations
- Use in lining pipe provided by the customer or WU concrete core drilling (white tank)
- for different pipe diameters
Product benefits
- with ITL system for optimum contact pressure - can also be fitted with a cordless screwdriver
- with DDE (DOYMA DIAMETER EXTENSION). Plug-in modules enable tool-free adaptation to different cable diameters.
- Permanently tight without retensioning (maintenance-free)
- Integrated dummy seal, subsequent assignment possible without any problems
- Higher sealing performance of the sealing insert thanks to DOYMA-Grip

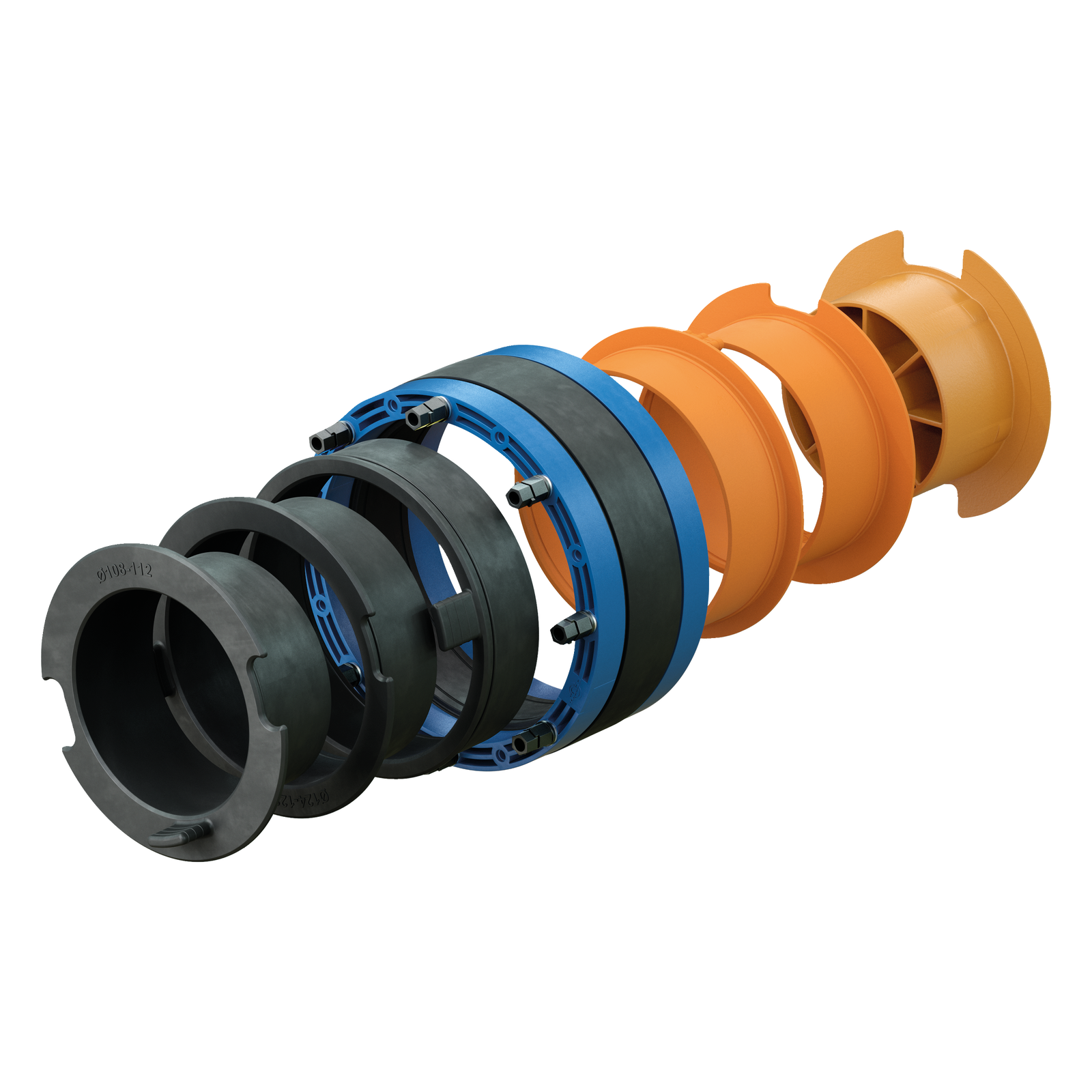

- blue frame rings made of high-performance plastic
- elastomer sealing rings, 45 mm wide, made of EPDM (DOYMA-Grip)
- plug-in DDE modules
- ITL nuts
- A4 stainless steel screws
Media
skip
-

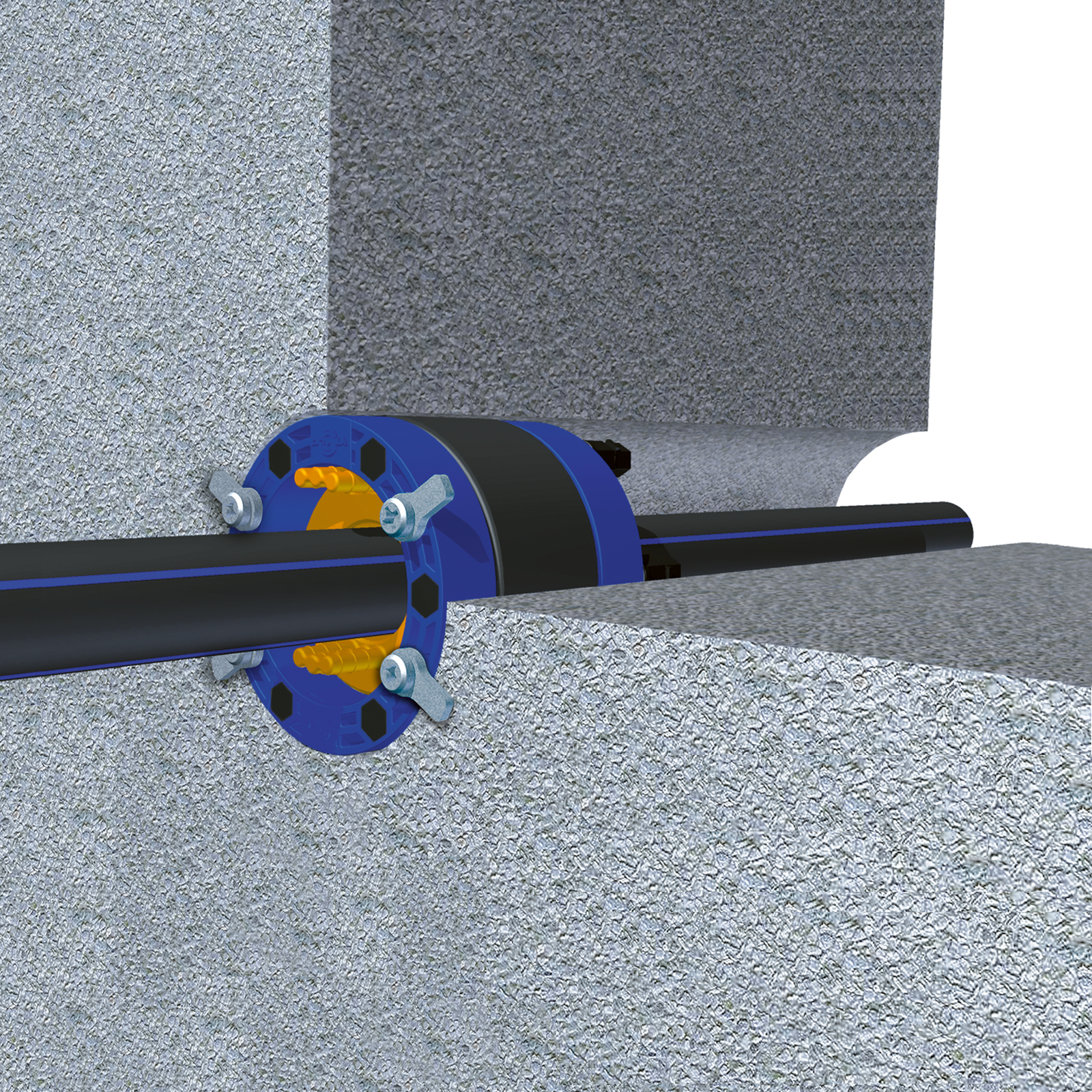

Installation situation
