Curaflam^® MiWo block incl. Curaflam^® XS Pro

Technical details

INSTALLATION CONDITIONS

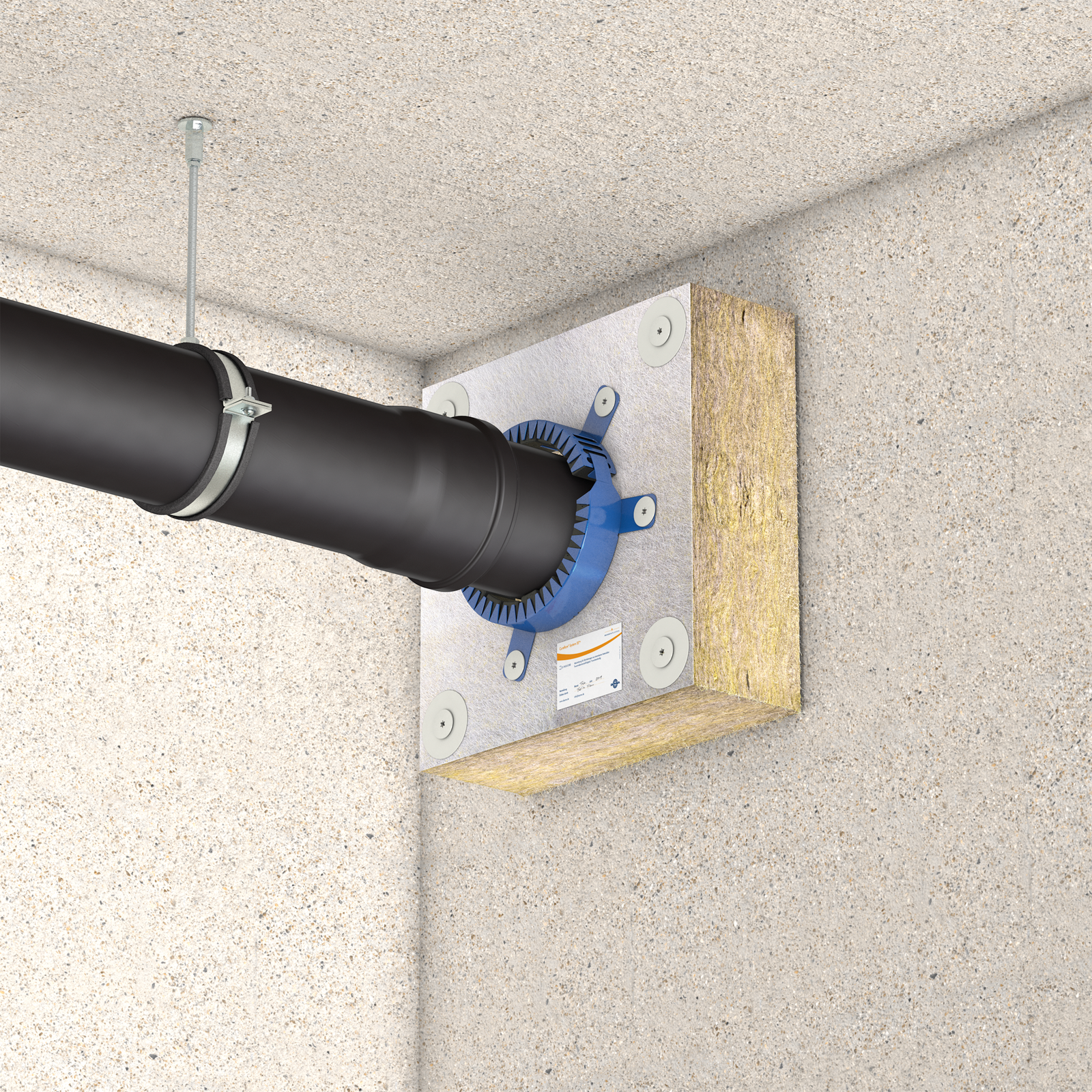

• Installation on solid walls with a thickness of at least 150 mm

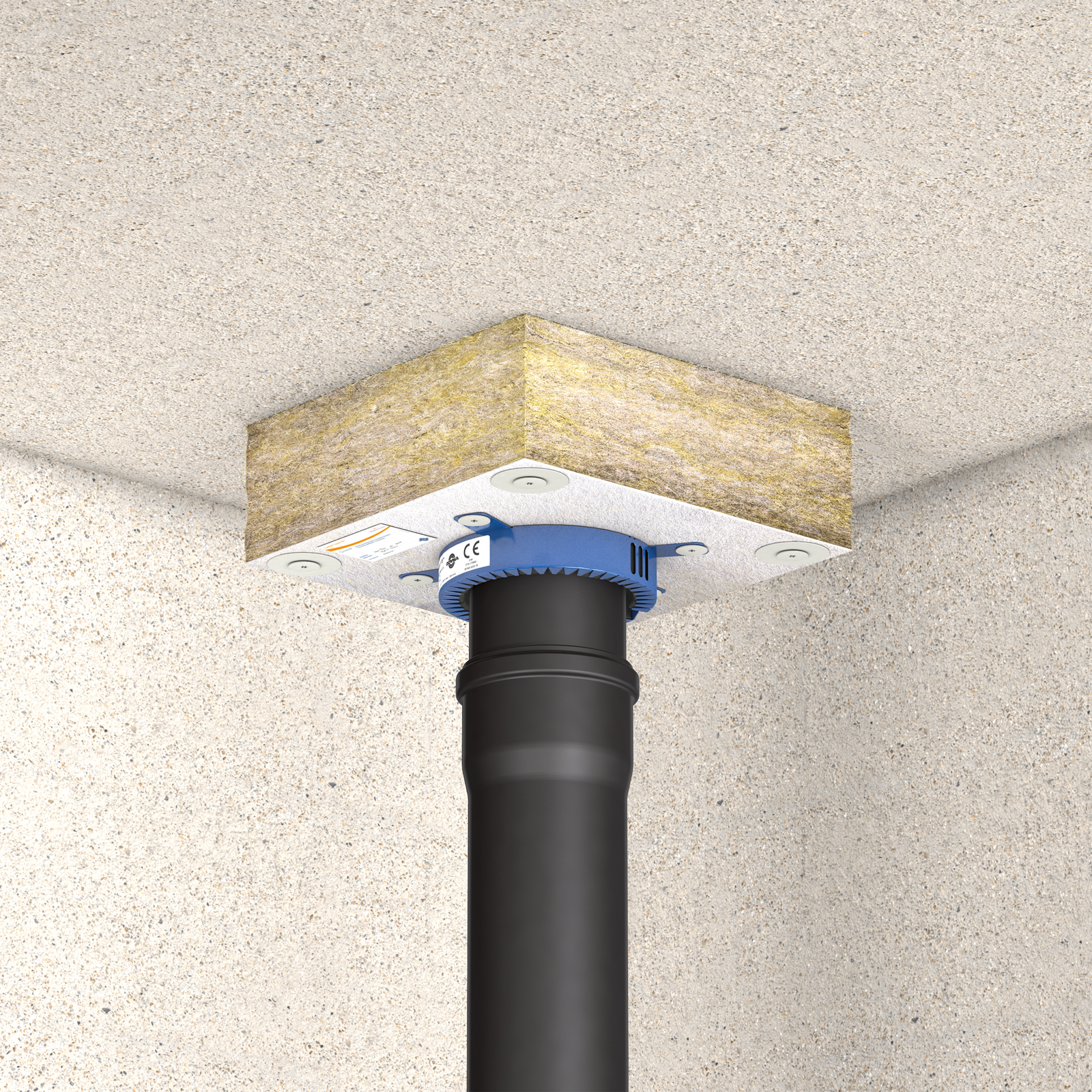

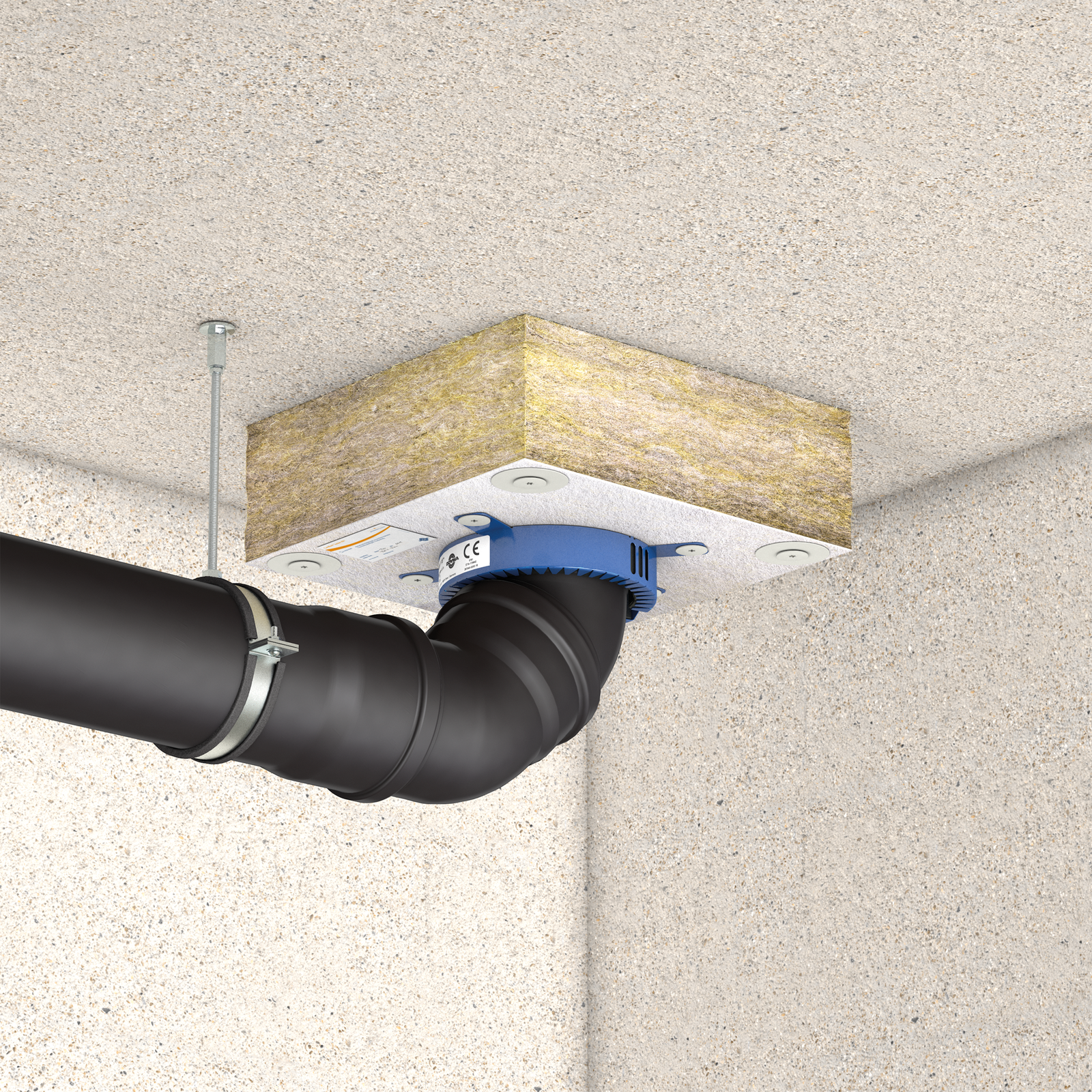

• Installation on solid ceilings with a thickness of at least 100 mm made of aerated concrete, reinforced concrete, concrete

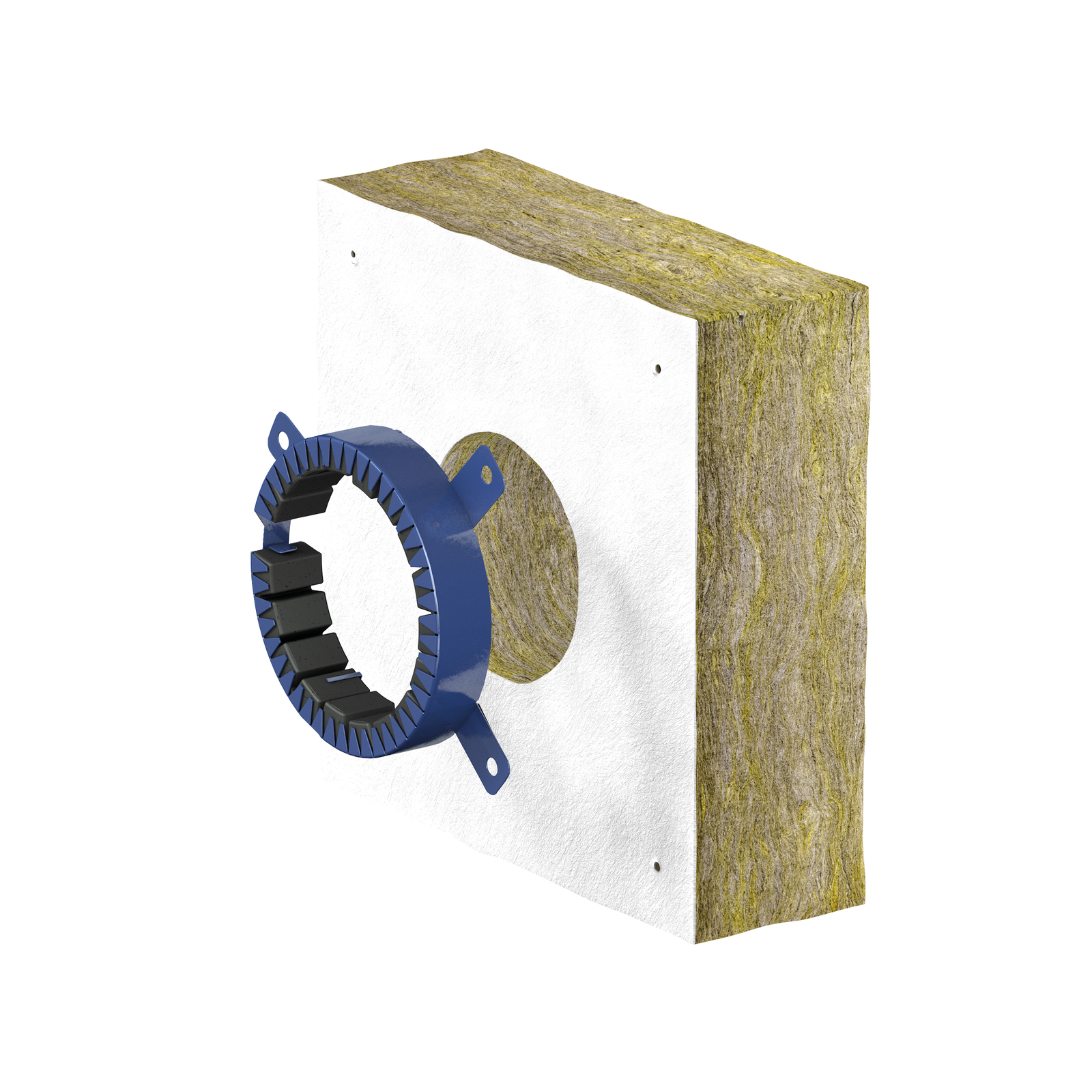

• Only the enclosed mineral wool block is to be used for the insulation (WxDxH: 30 x 30 x 10 cm, WLG 035)
• No requirements for the insulation adjacent to the MiWo block
• Installation also possible on uninsulated ceilings
• The design was positively tested and applied for as an extension of the general design approval Z-19.53-2182 at the German Institute for Building Technology in 2020
• The annular gap between the component and pipe must be grouted. The annular gap between the MiWo block and the pipe must not be sealed
