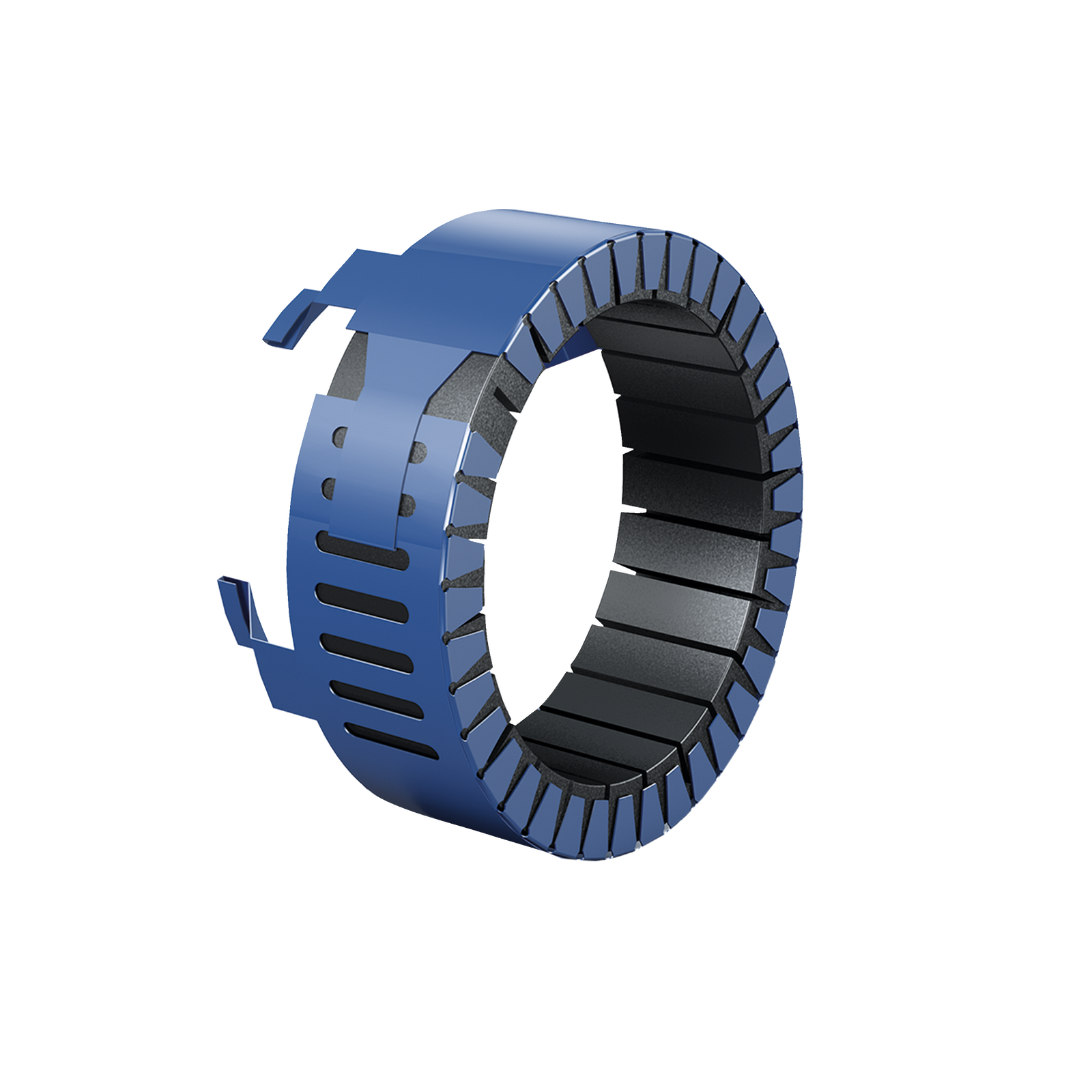

Curaflam^® Konfix Pro

Product benefits

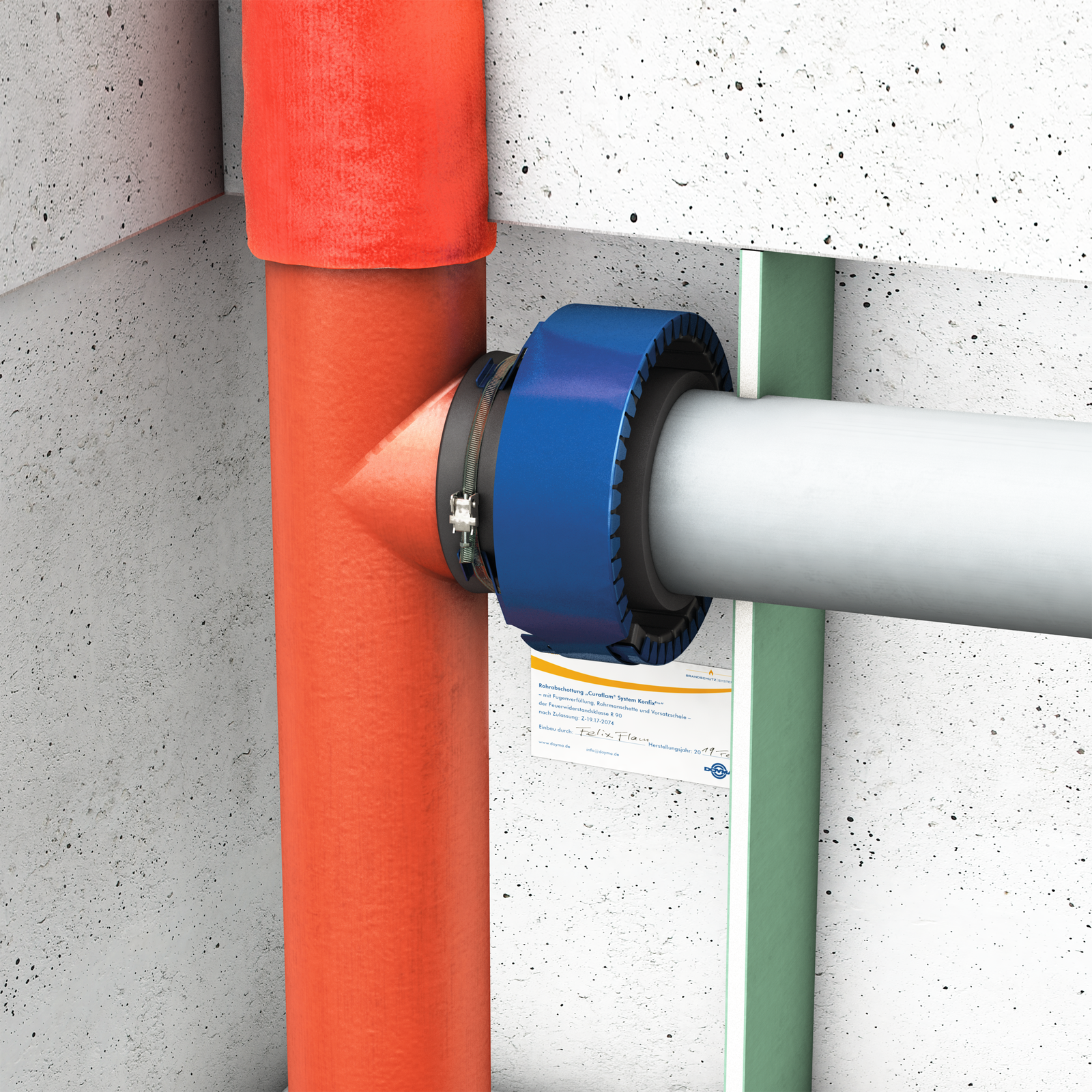

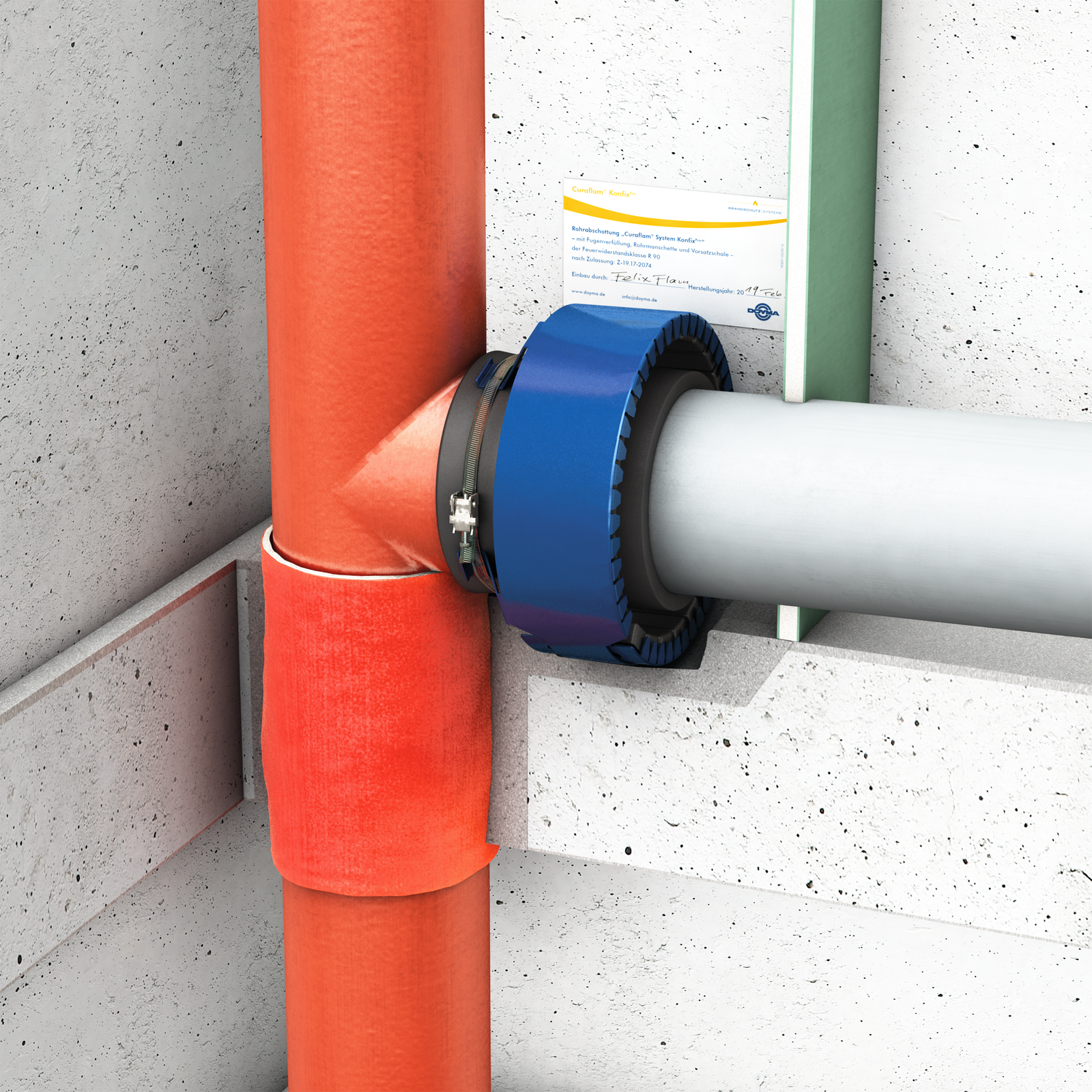

FOR SEALING OFF PIPES MADE OF:

• Cast iron with branching plastic pipes in accordance with DIBt specifications (DIBt Newsletter 02/2012 "Metal pipes with connection on plastic pipes")
• Cast iron (main pipe) Ø ≤ 160 mm
• Branching pipes Ø ≤ 110 mm
• Standard pipes: PVC, PP, PE-HD, LDPE, PB, PE-X, ABS, AS
• Sound-insulating waste water pipes
• #new: Geberit Silent-Pro, Silenta Premium, WAVIN SiTech+ and WAVIN AS+

PERMISSIBLE CONNECTING MEANS MAIN PIPES TO THE BRANCH PIPES ACC. ABG

• EPDM connectors (so-called Konfix connectors)
• #new: Rapid clamping connector (main pipe Ø ≤ 110 mm)

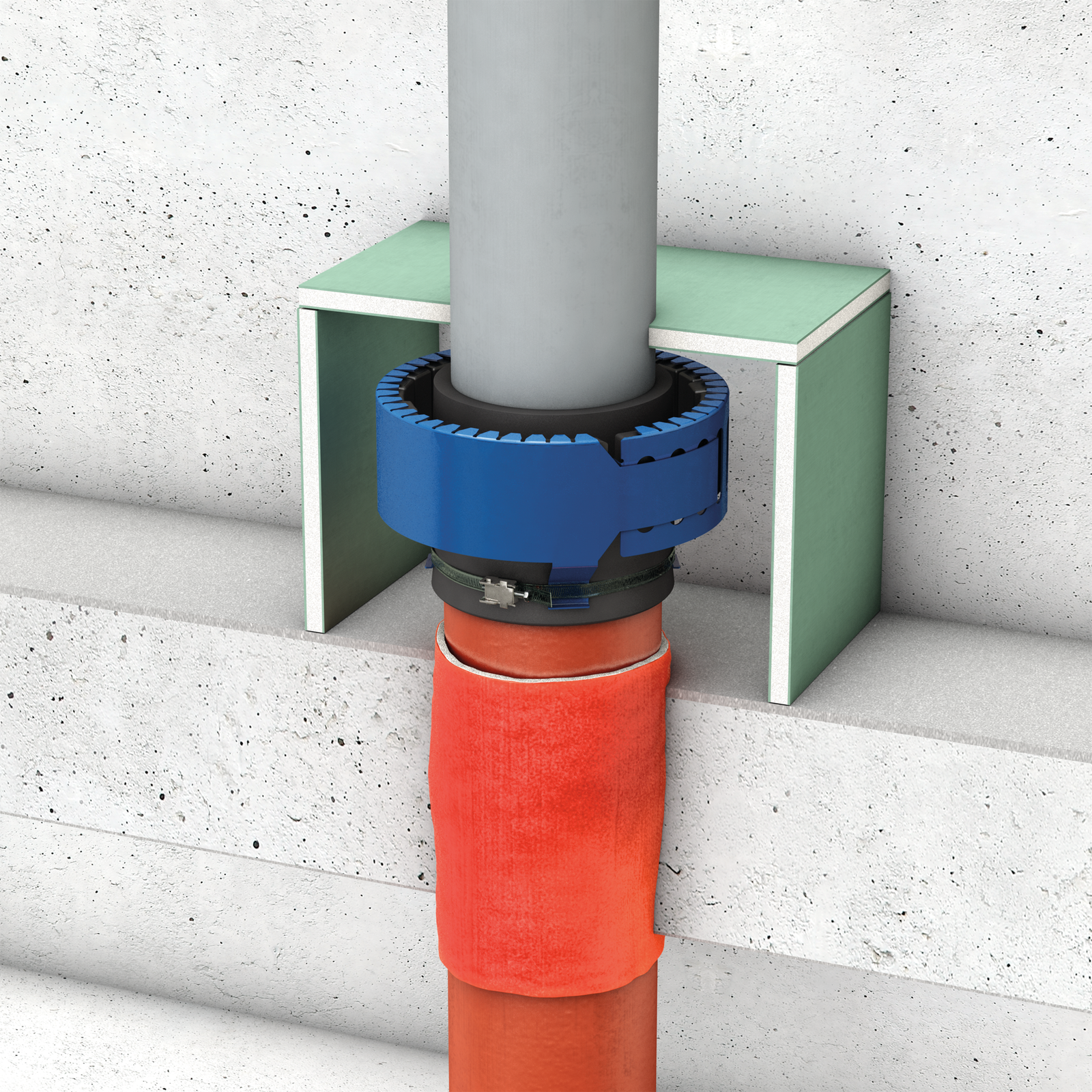

INSULATION OR SHEATHING OF THE MAIN PIPES IN THE CEILING BREAKTHROUGH:

• PE sound insulation strips with thickness ≤ 5 mm
• Mineral wool (melting point > 1000°C) with thickness ≤ 15 mm
• Mineral wool pipe shells (see aBG for details) with a thickness ≥ 30 mm
• #new: Mineral wool pipe shells "Conlit 150 U" thick (min. 150 mm) for main pipe Ø ≤ 110 mm
