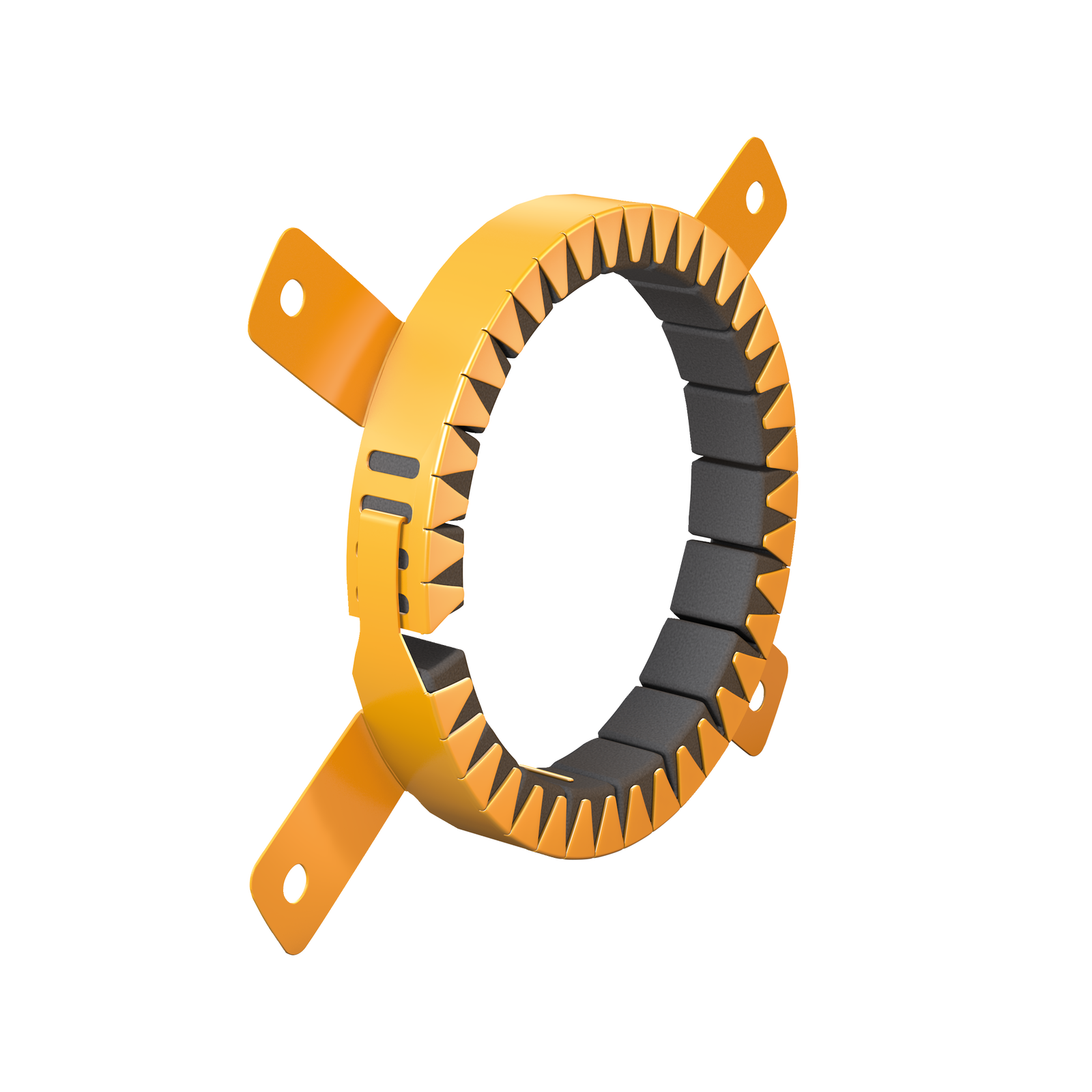

Curaflam® ECO Pro

  • for flammable pipes
  • Trades: waste water, rainwater, drinking water, heating, cooling, compressed air
Dealer search

Technical details

INSTALLATION CONDITIONS

  • Approved zero clearance in the system and to external penetration seals (e.g. Curaflam® Rollit ISO Pro, Conlit system, shut-off device in accordance with DIN 18017 [ventilation], etc.)
  • Penetration sealing on sloping pipes, sleeves, for 2 x 45° bends with plug-in or E-sleeves and metal clamp connectors
  • on both sides in front of walls made of aerated concrete, reinforced concrete, concrete, masonry and lightweight partition walls with a thickness ≥ 100 mm
  • on one side under or in ceilings made of aerated concrete, reinforced concrete, concrete with a thickness ≥ 150 mm

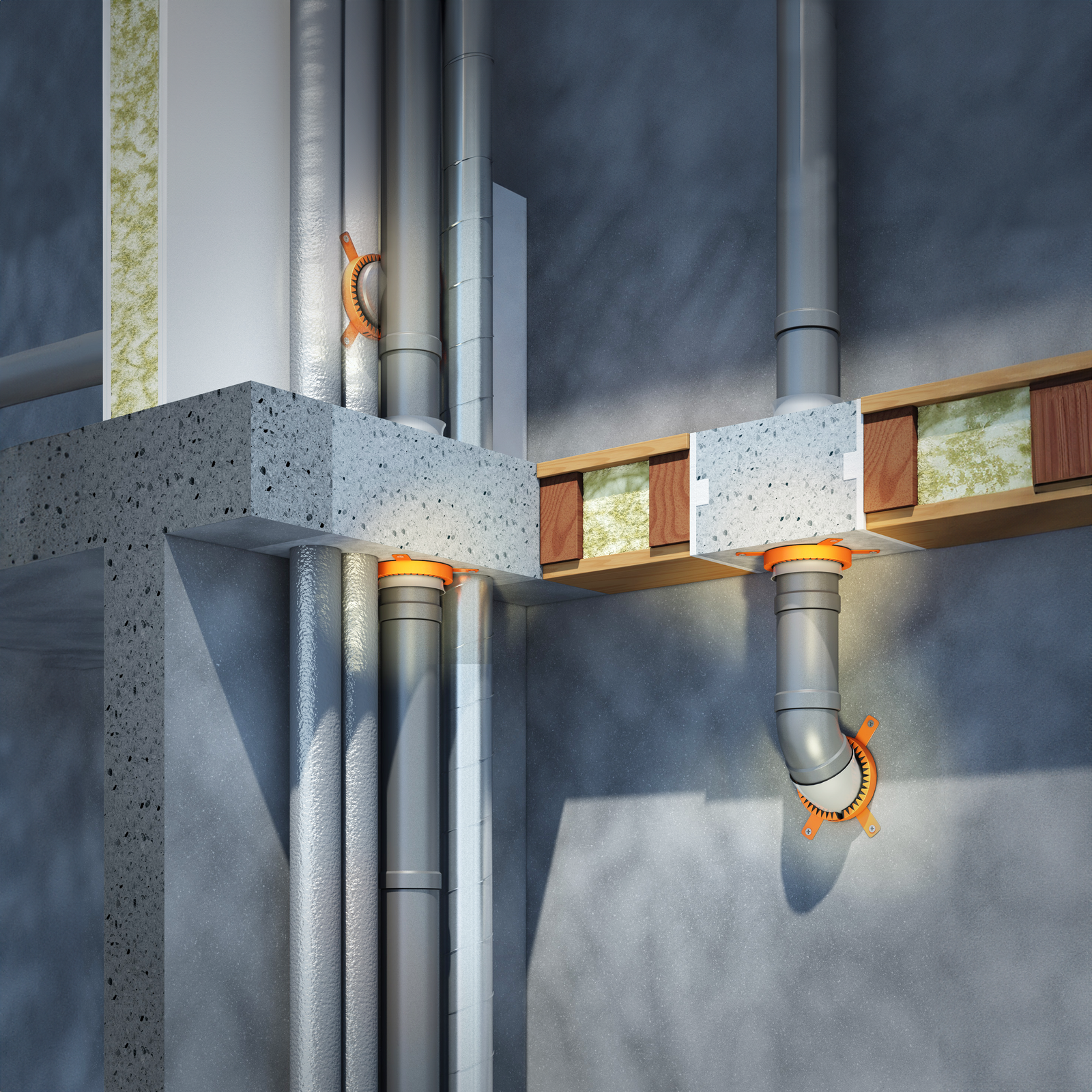

  • approved for penetration sealing in fire-retardant wooden beam ceilings ≥ 150 mm

Areas of use

  • for flammable pipes
  • Trades: waste water, rainwater, drinking water, heating, cooling, compressed air

Product benefits

FOR THE SEALING OF PIPES MADE OF

  • PVC, PP, PE-HD, LDPE, PB, PE-X, ABS Ø ≤ 160 mm
  • Sound-insulating waste water pipes
  • Plastic composite pipes with aluminum insert Ø ≤ 110 mm
  • Aquatherm pipes Ø ≤ 110 mm

APPROVED FOR INSULATION

  • PE sound insulation strips 3 - 5 mm
  • Synthetic rubber 9 - 43 mm
  • PE flexible foam hoses 9 - 25 mm

Curaflam®

Please refer to the general type approval for detailed information regarding the areas of application and design regulations.

Downloads

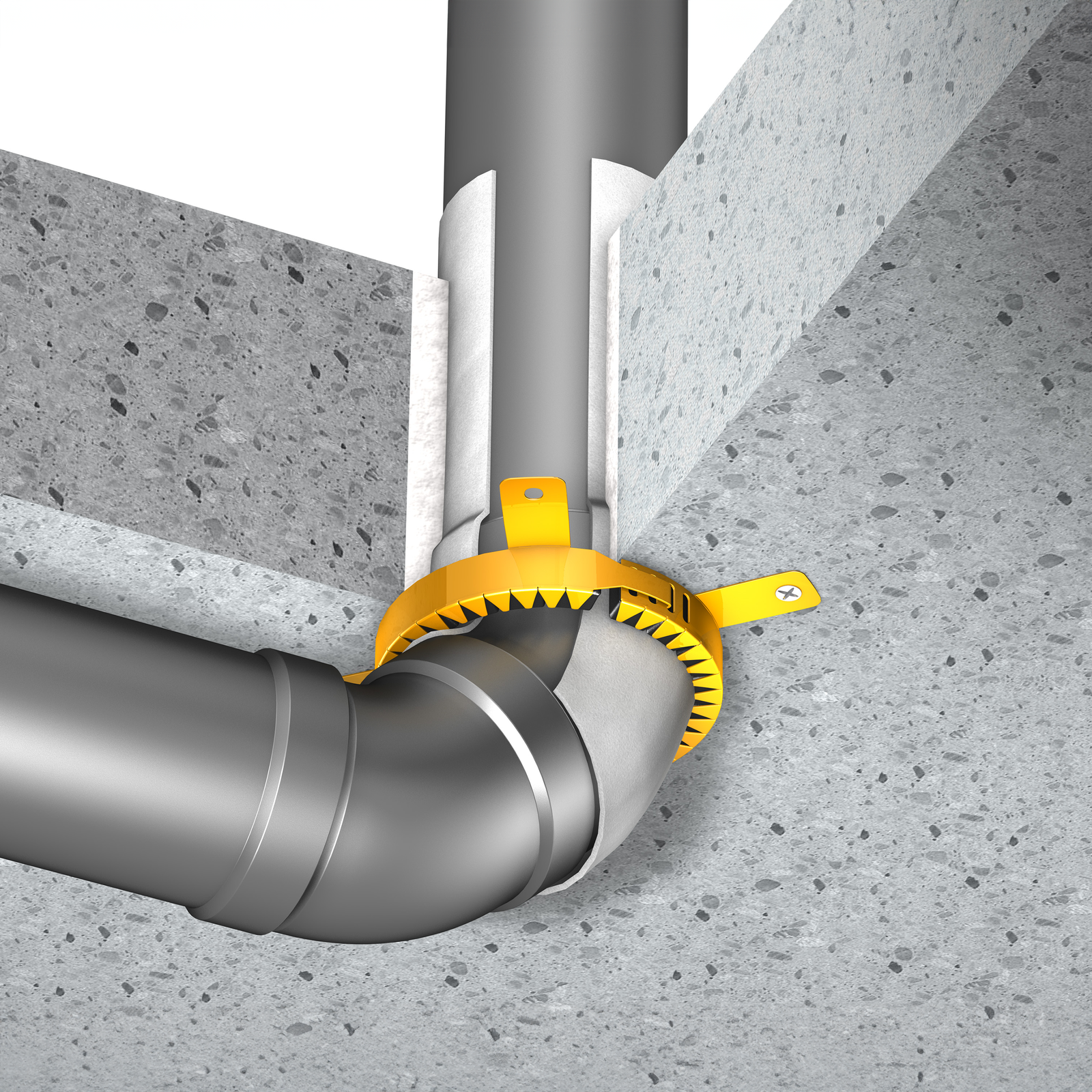

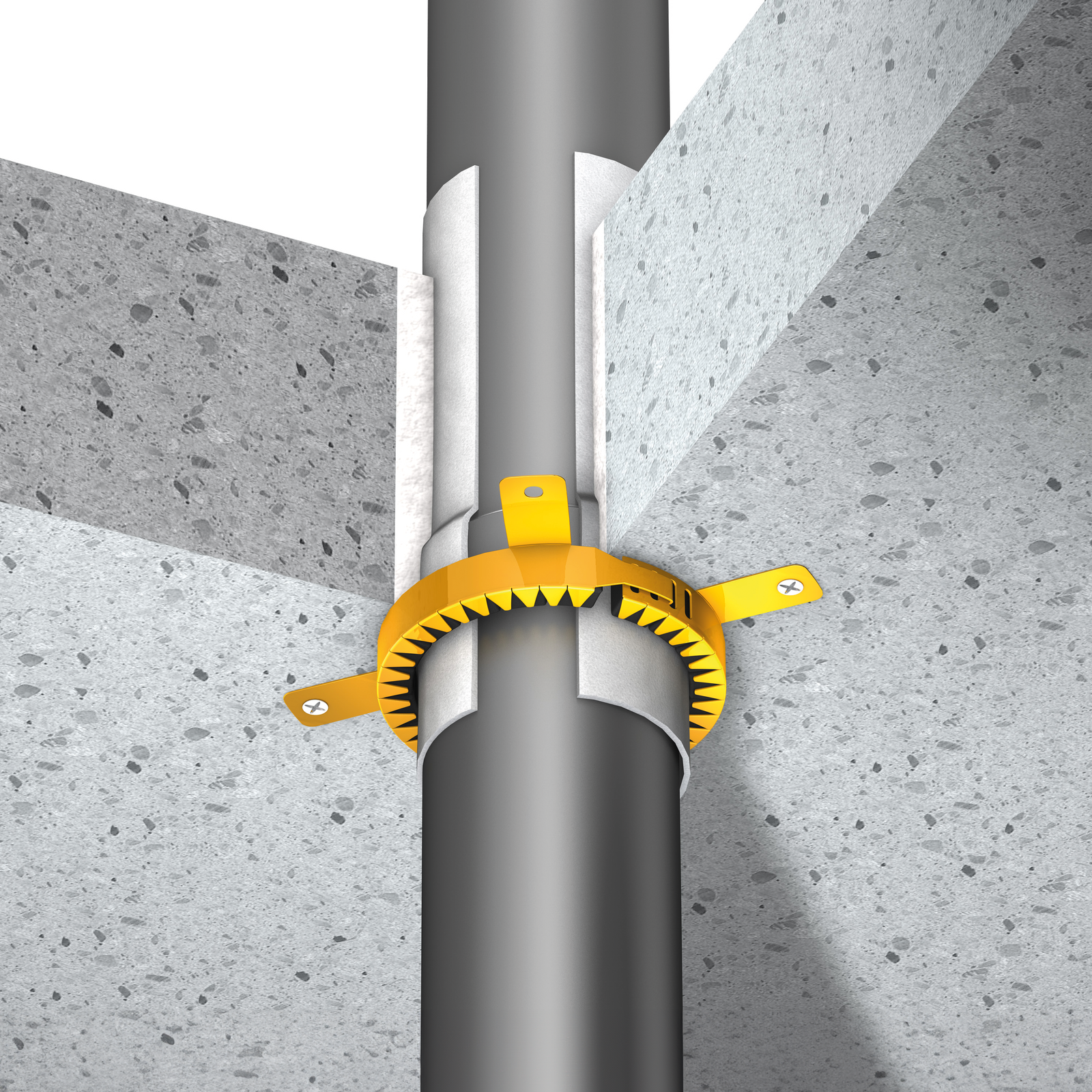

  • Installation situation

  • Installation situation

  • Installation situation
