Quadro-Secura® Quick/G
- Single-purpose house entry with injection system
- For use in the most common wall types with sealing according to DIN 18533 W2.1-E or for WU concrete core drilling (white tank)
- for the trade gas
- with sealing flange according to DIN 18533 (black tank)
- Ideal for new connections in existing buildings
Quadro-Secura® Quick/G
added to
.
Quadro-Secura® Quick/G
removed from
.
Technical details
- DVGW approved (RMA and Schuck)
- gas and pressurized water-tight up to 1 bar
- for open construction

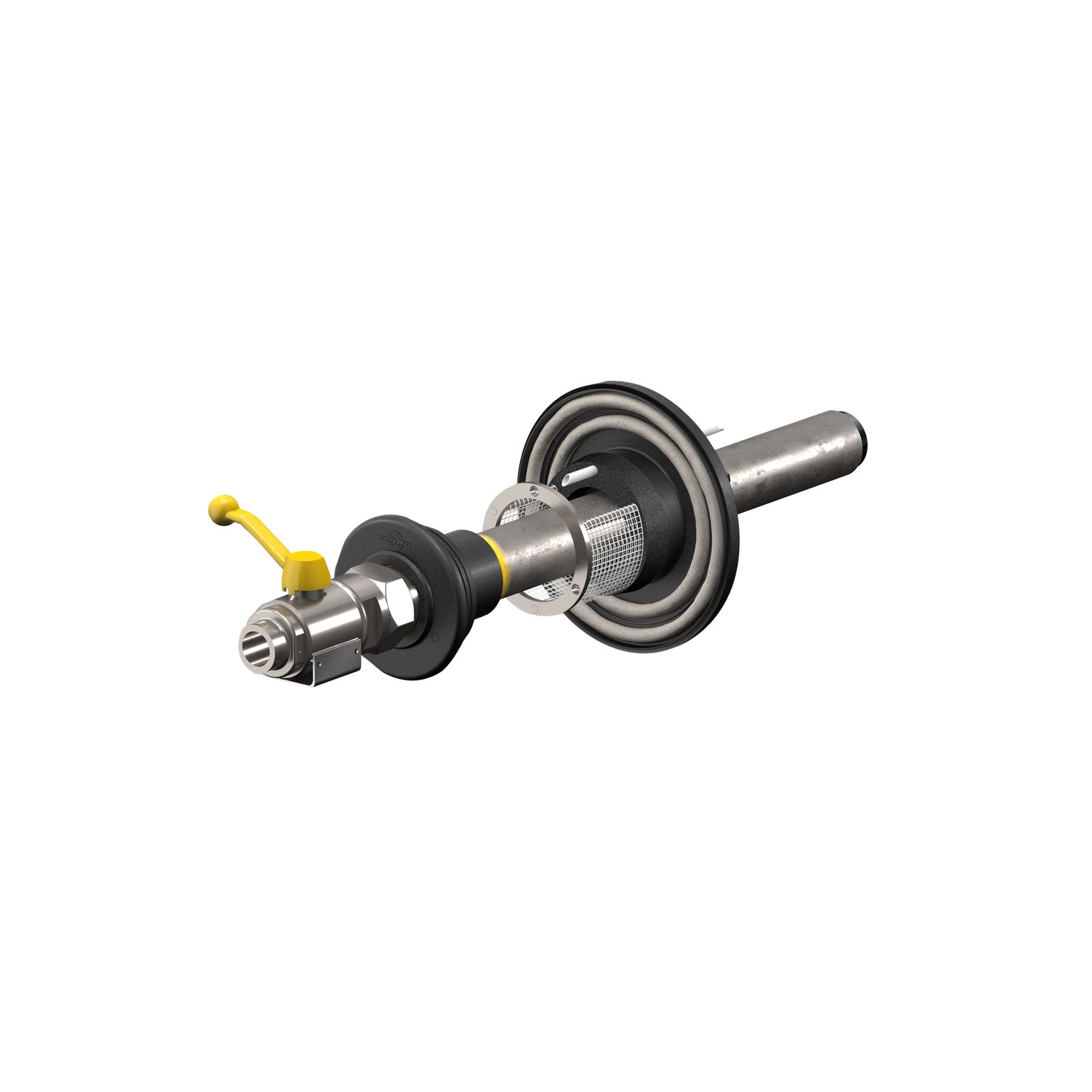

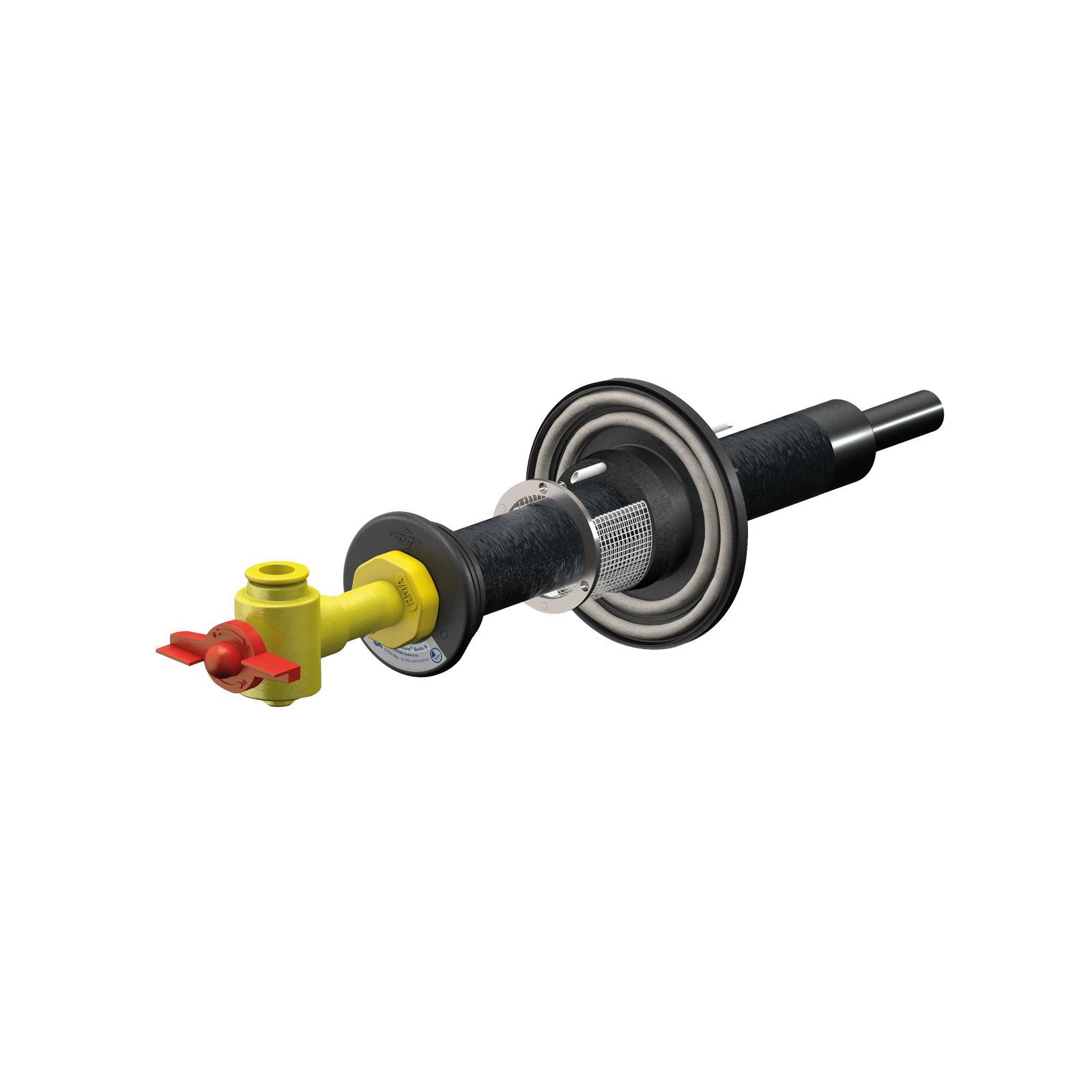

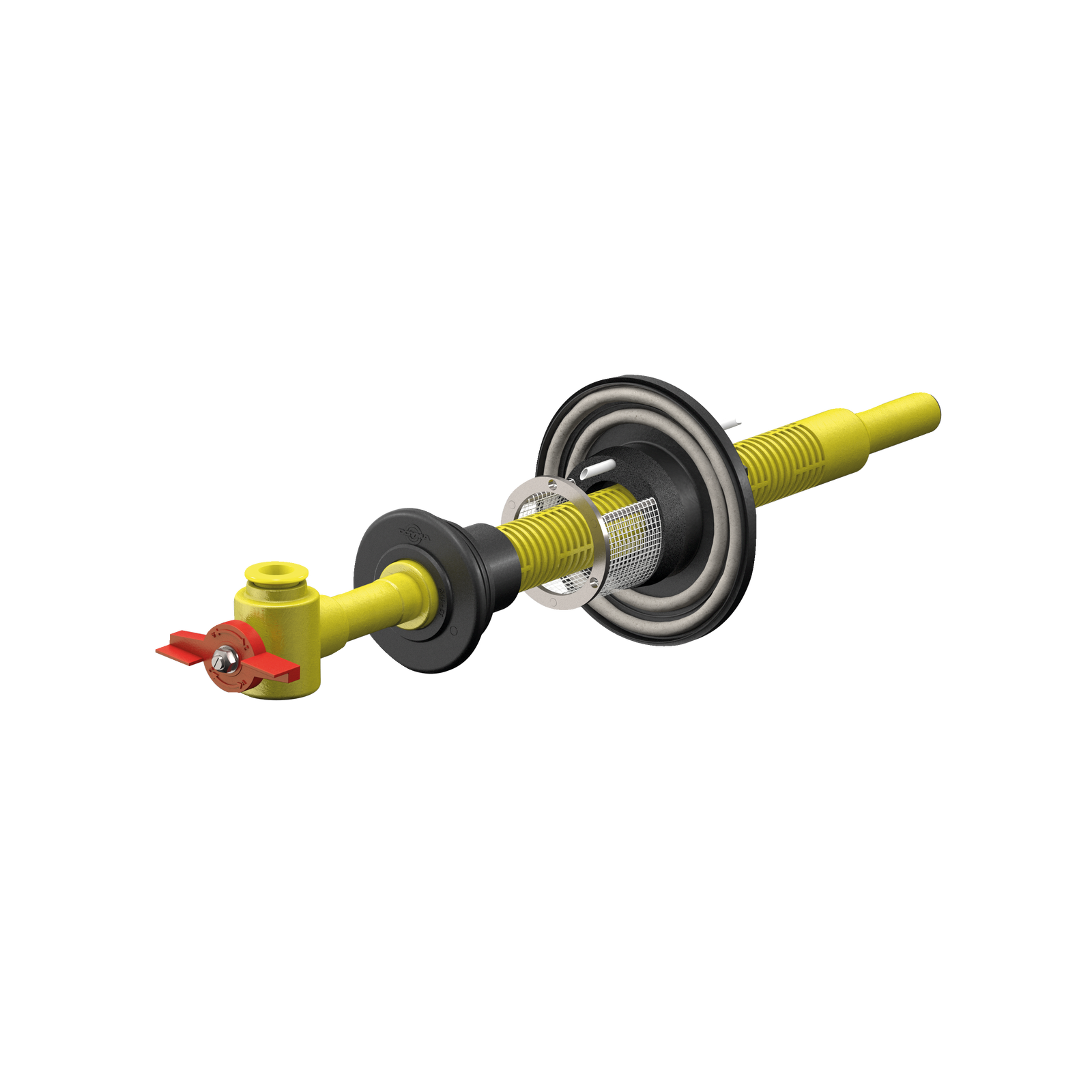

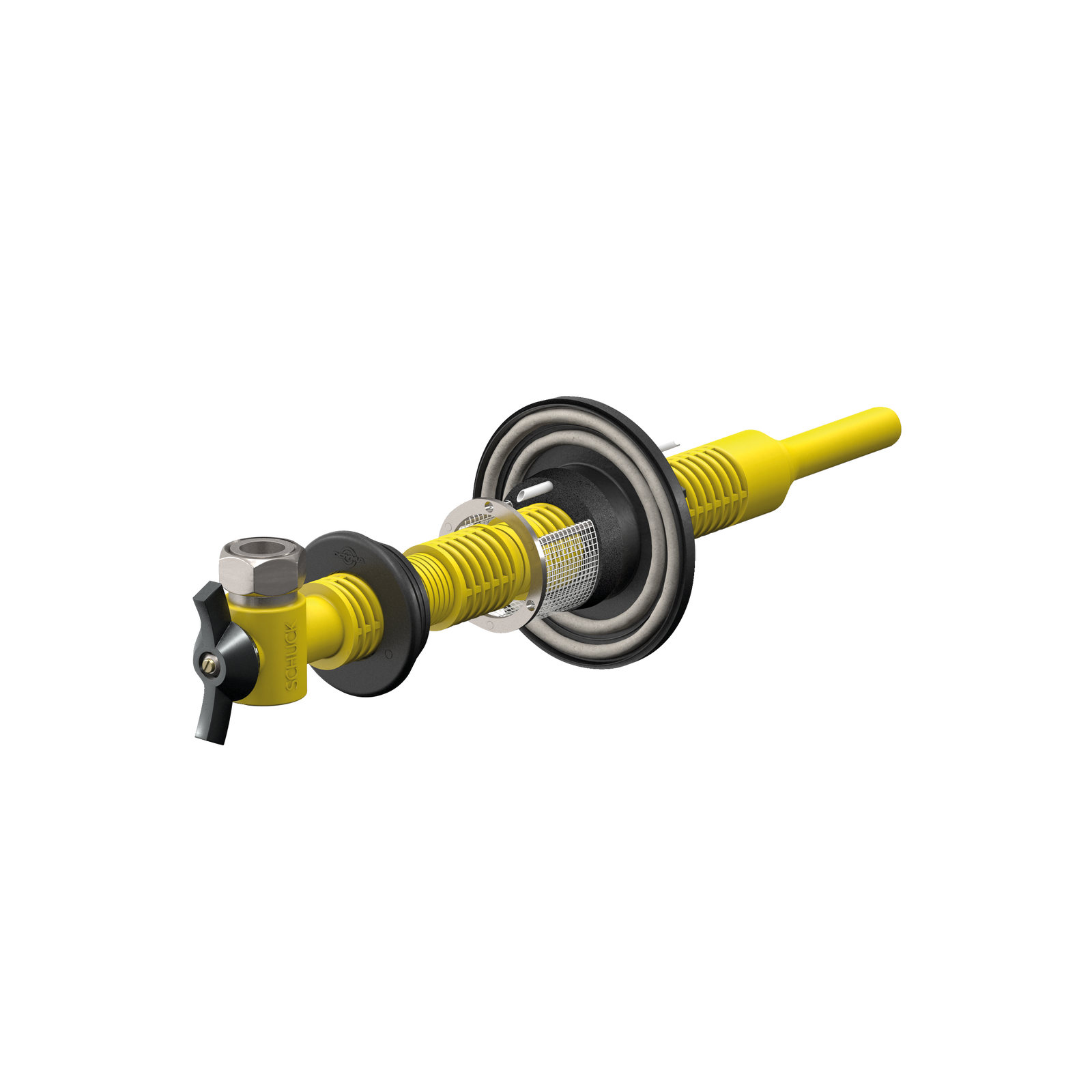

- suitable for RMA / Schuck / VAF Voigt / Burger gas service entry combinations
- for drill holes in the most common wall types with sealing in accordance with DIN 18533 W2.1-E and waterproof concrete core drill holes (white tank)
Areas of use
- Single-purpose house entry with injection system
- For use in the most common wall types with sealing according to DIN 18533 W2.1-E or for WU concrete core drilling (white tank)
- for the trade gas
- with sealing flange according to DIN 18533 (black tank)
- Ideal for new connections in existing buildings
Product benefits
- with Easy Fix System for simple, quick and secure installation
- with ITL system for optimum contact pressure
- Installation without additional clamping device
- Enables the simultaneous insertion of gas service entry combinations and fiber optic cables/pipes (2 x Ø 7mm)
- Ideal for sealing on existing thick bitumen coatings
- Can also be used with standard hollow bricks without backfilling
- Short installation times
- Suitable for building renovations
- No additional mechanical fixing required
