New

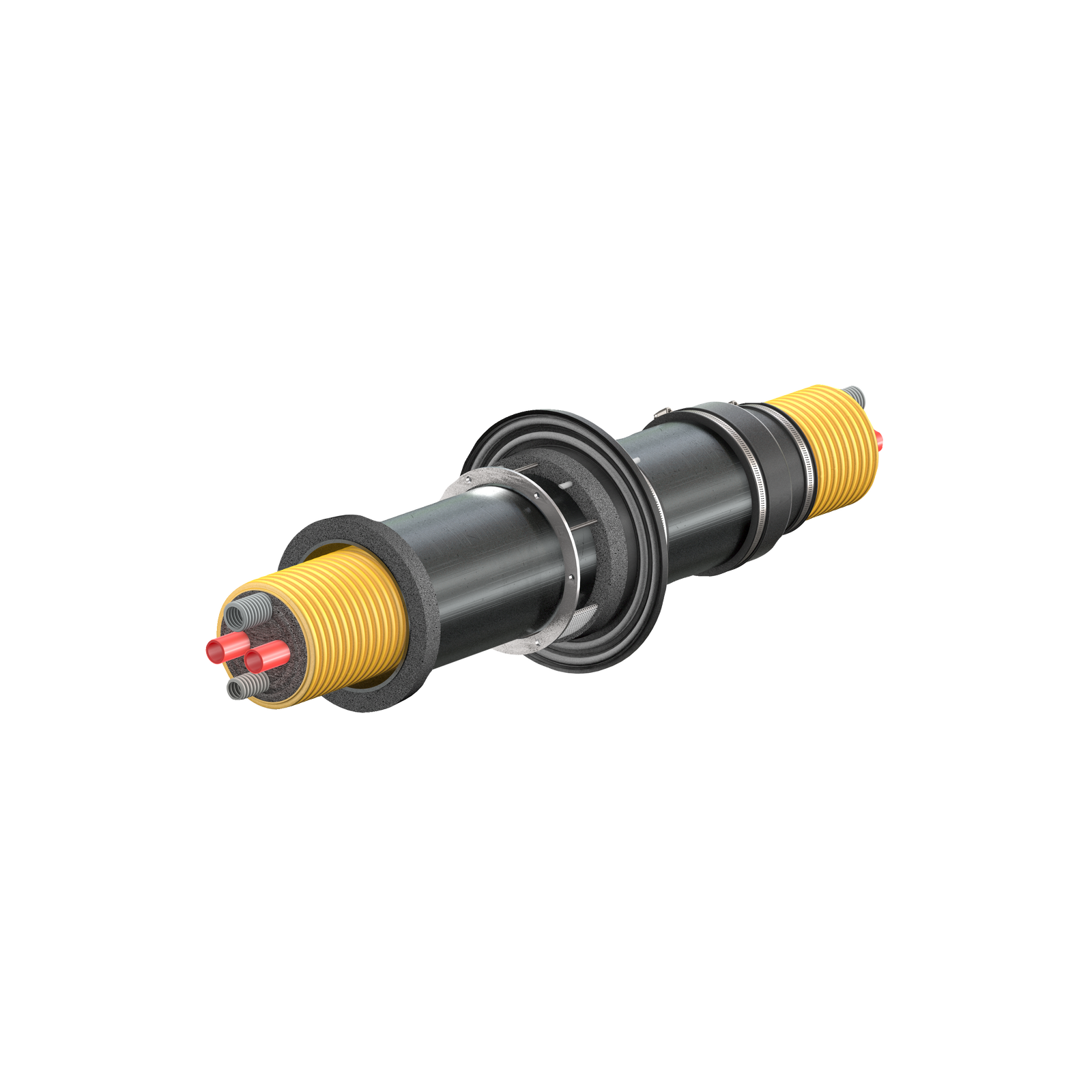

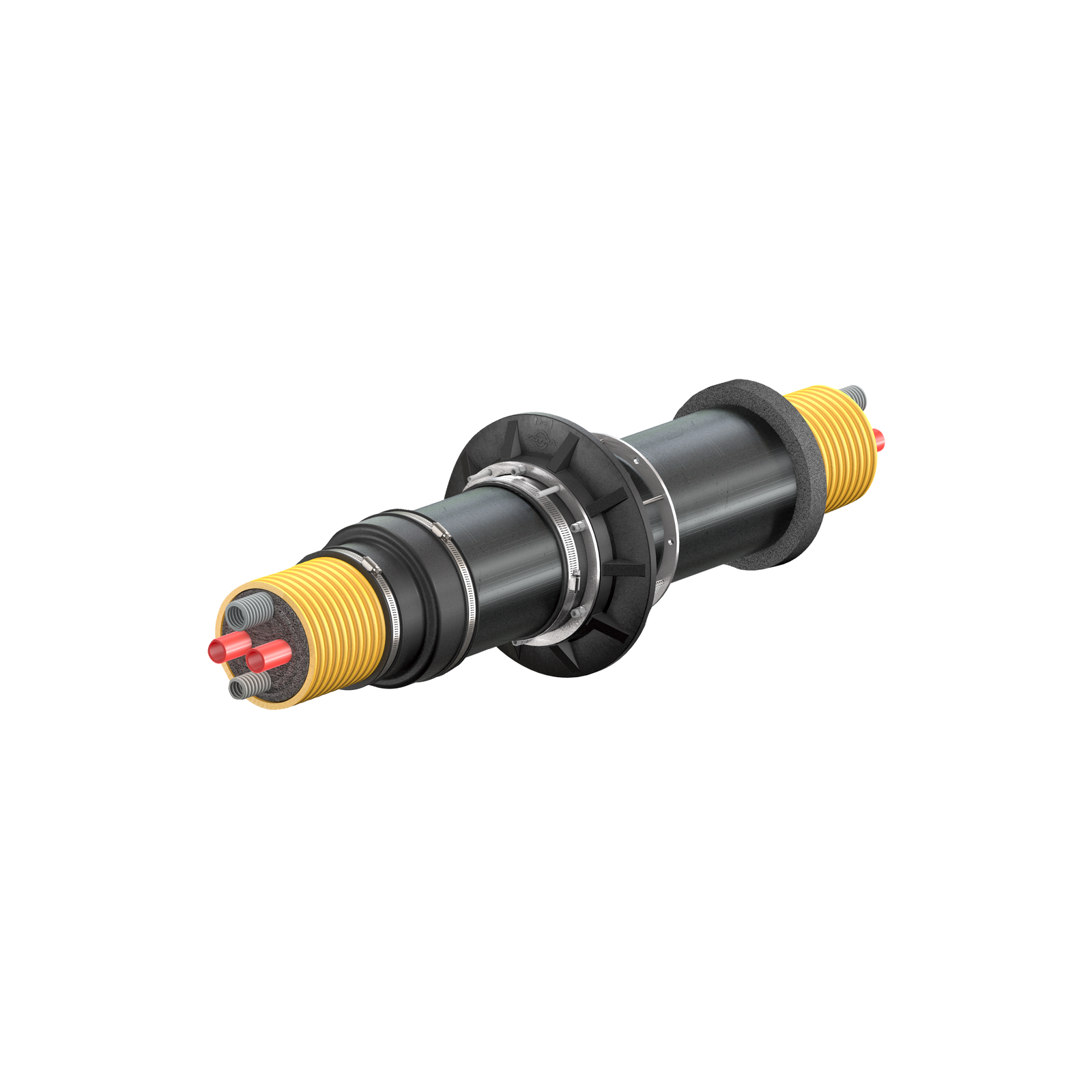

Quadro-Secura® Quick/H/MAC

  • Single-line building entry with injection system
  • Suitable for use in the most common wall types with waterproofing in accordance with DIN 18533 W2.1-E (“black tank”) or for waterproof concrete core drilling (“white tank”)
  • No additional liner pipe required
  • Designed for use with smooth and corrugated pipe systems
  • With sealing flange in accordance with DIN 18533 (black tank)
  • Ideal for heat pump connections or for pre-insulated local and district heating lines
Dealer search

Technical details

  • Gas- and pressure-water-tight up to 1 bar
  • Radon-proof – in accordance with FHRK Technical Note MB 101
  • For open construction
  • Can be sealed to accommodate smaller pipe diameters using an adapter sleeve
  • For drill holes in the most common wall types with sealing in accordance with DIN 18533 W2.1-E (“black tank”) and water-tight concrete core drill holes (“white tank”)

Areas of use

  • Single-line building entry with injection system
  • Suitable for use in the most common wall types with waterproofing in accordance with DIN 18533 W2.1-E (“black tank”) or for waterproof concrete core drilling (“white tank”)
  • No additional liner pipe required
  • Designed for use with smooth and corrugated pipe systems
  • With sealing flange in accordance with DIN 18533 (black tank)
  • Ideal for heat pump connections or for pre-insulated local and district heating lines

Product benefits

  • With the Easy Fix System for easy, quick, and secure installation
  • with ITL system for optimal contact pressure
  • Installation without additional clamping devices
  • Ideal for sealing over existing thick bitumen coatings
  • Can also be used with standard hollow blocks without backfilling
  • Short installation times
  • Suitable for building renovations

  • Quadro-Secura® Quick/H

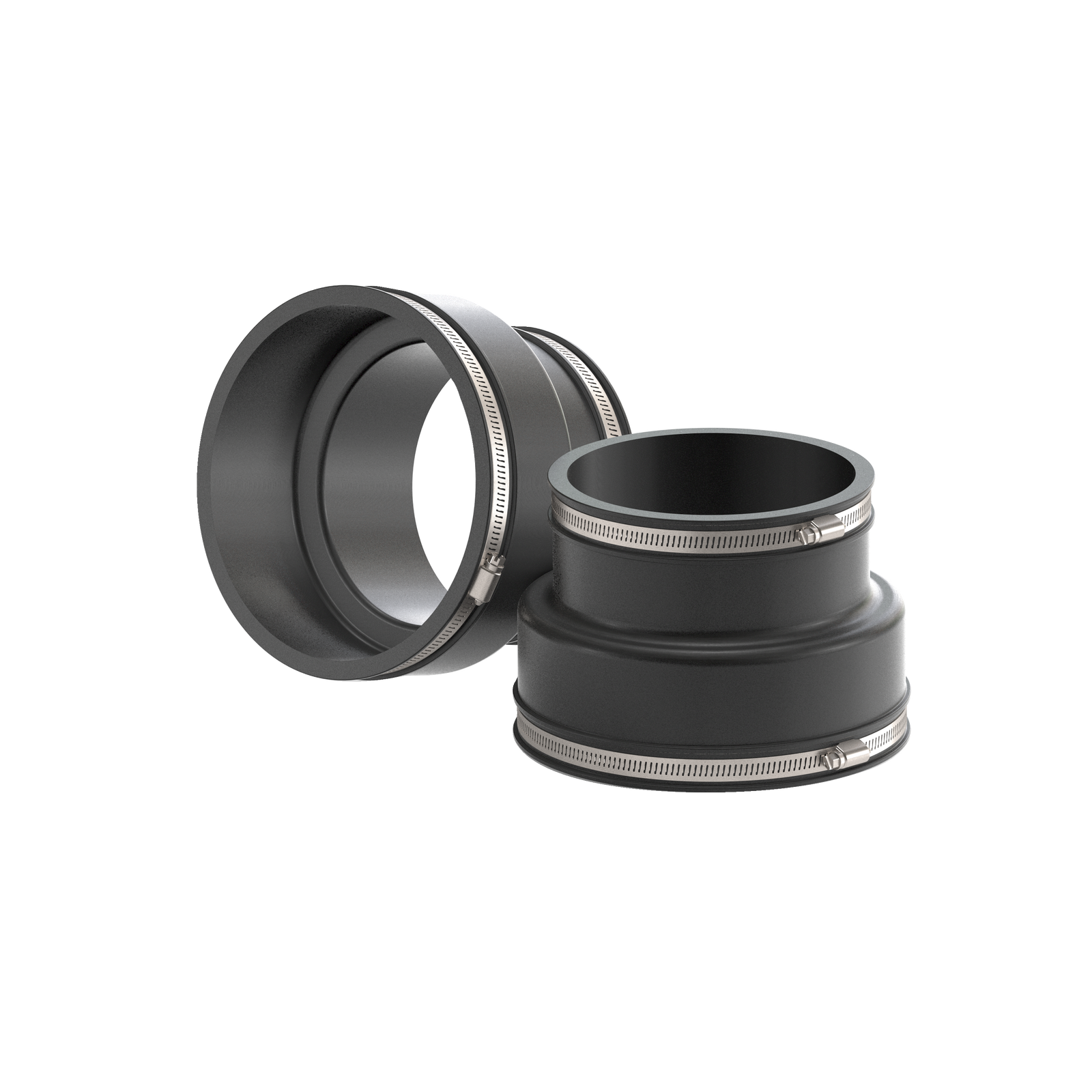

  • Adapter Sleeve
  • Wall termination ring
  • Expansion resin

Downloads

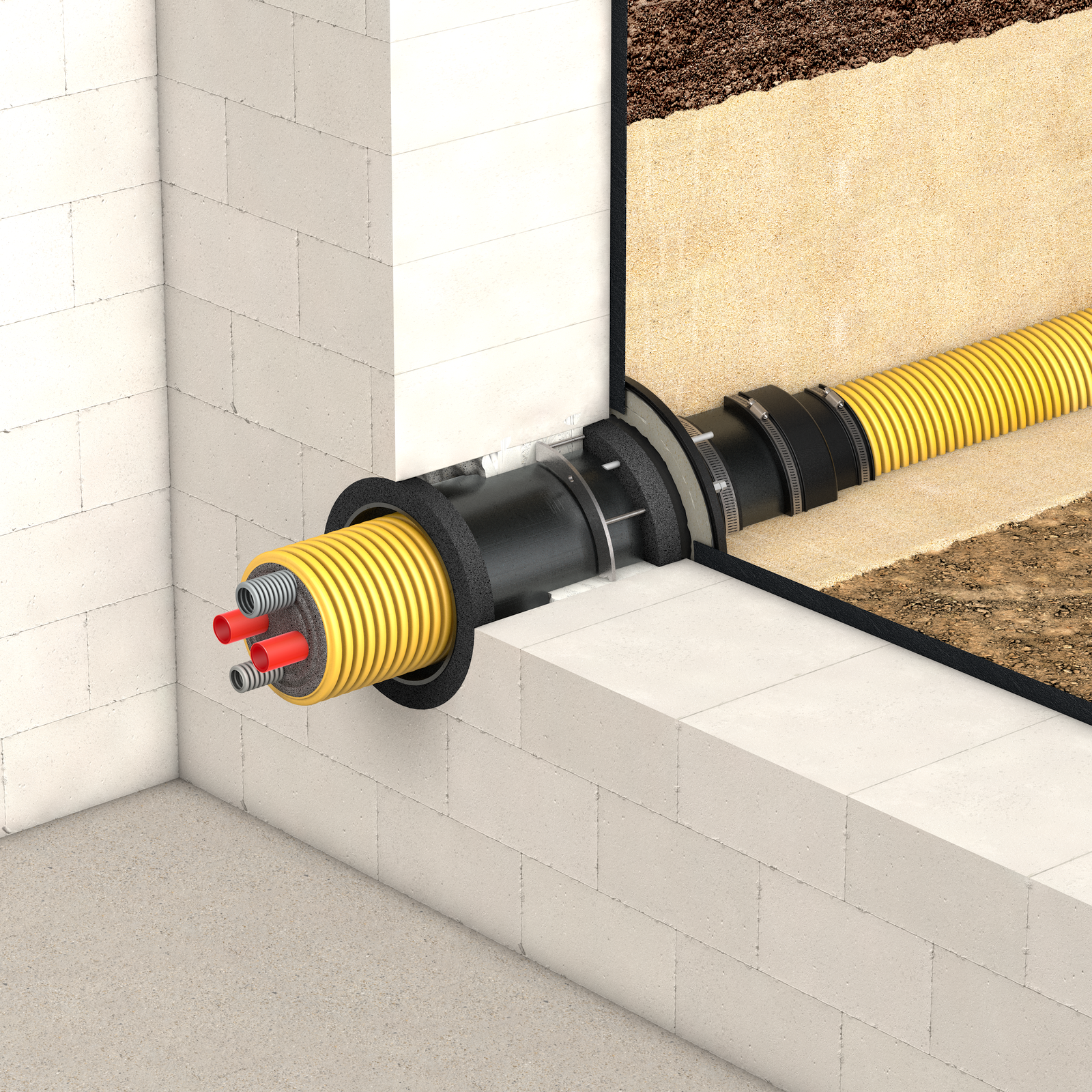

  • Installation situation
