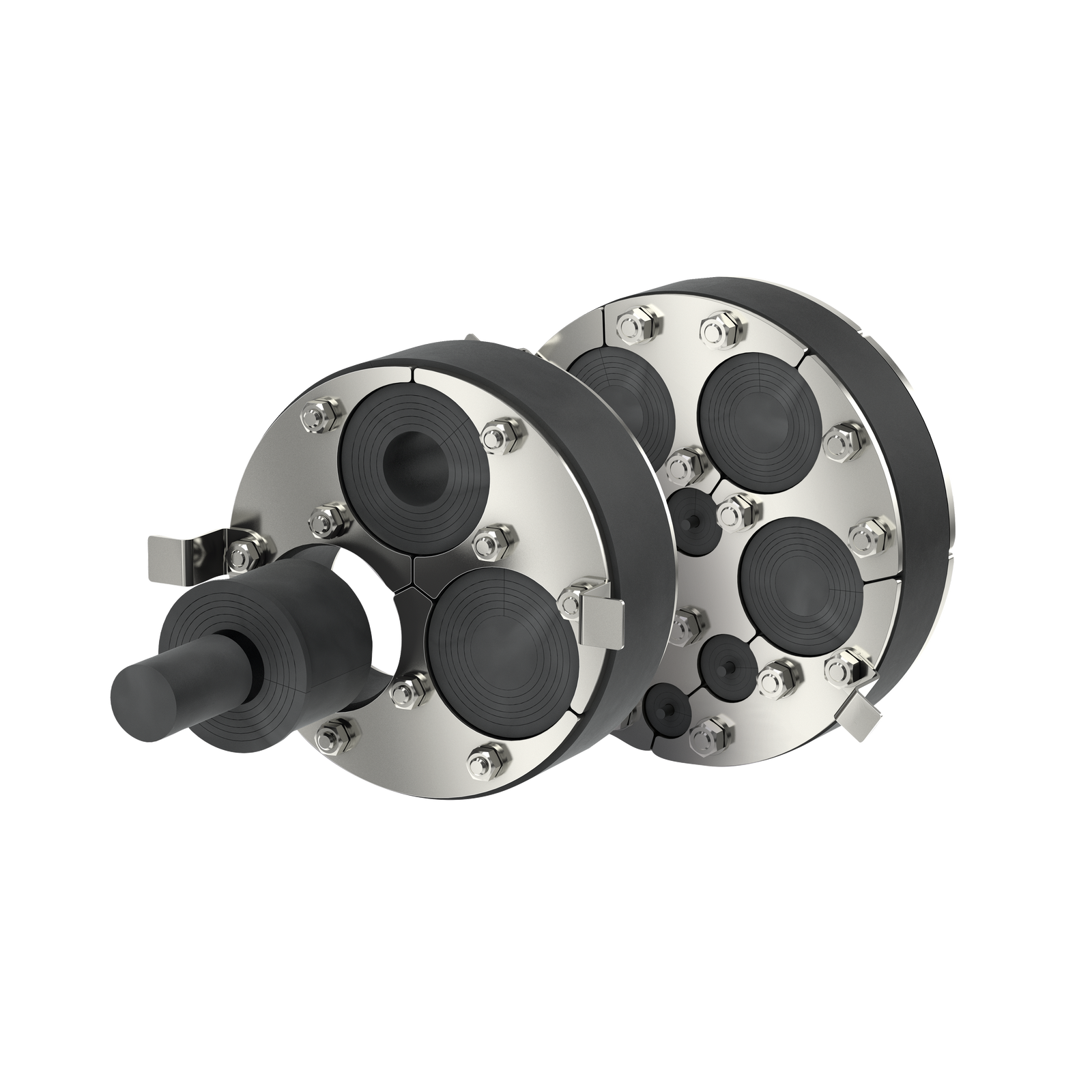

UGA GPD with onion cutting insert
- Use in on-site casing pipe or waterproof concrete core drilling (white tank)
- Variable sealing of cables or pipes with different diameters
- Hinged, for cables already laid
- With replaceable onion cut inserts
UGA GPD with onion cutting insert
added to
.
UGA GPD with onion cutting insert
removed from
.
Technical details
- All metal parts made of stainless steel 1.4301 (V2A), optionally also in stainless steel 1.4571/1.4404 (V4A)
- Gas and watertight
- Split design
- Feed-through of up to 10 cables of different diameters possible
Areas of use
- Use in on-site casing pipe or waterproof concrete core drilling (white tank)
- Variable sealing of cables or pipes with different diameters
- Hinged, for cables already laid
- With replaceable onion cut inserts
Product benefits
- Simple installation due to separation of GPD base body and onion cut inserts
- Onion cut inserts can be adapted to the pipe on site
- Slip-through protection in the form of two stepped lugs
- Onion cut inserts in certain sizes can be replaced by interchangeable inserts on request
- Closure of reserve openings with blanking plugs supplied
- Rubber press seal 40 mm (sealing insert) made of EPDM
- Onion cut insert 40 mm with collar made of EPDM
Media
skip
-
Installation situation
