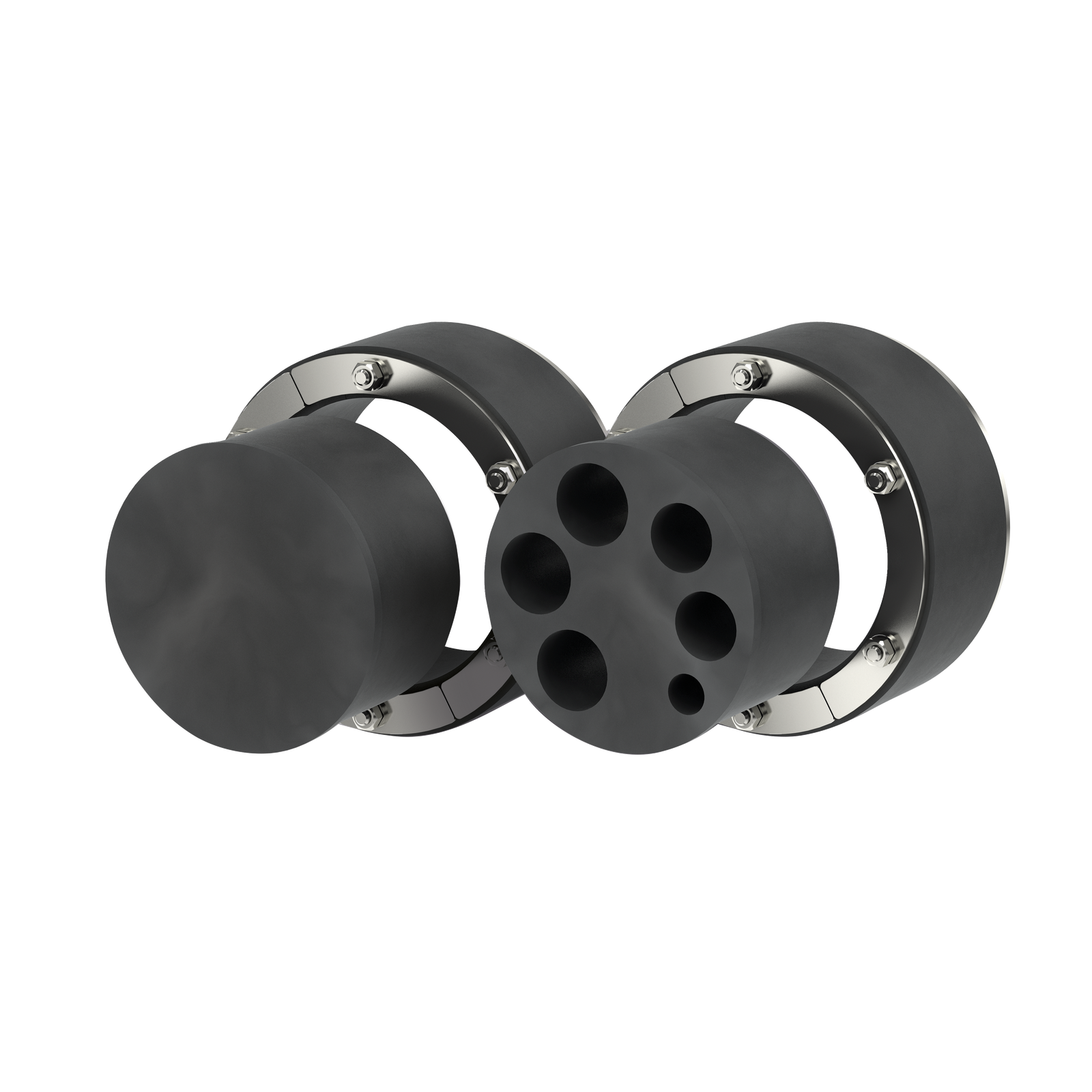

UGA GPD with interchangeable insert

  • For use in on-site casing pipe or waterproof concrete core drill hole (white tank)
  • Hinged, for already installed pipes
  • with replaceable insert
Dealer search
Pressing water

Technical details

  • tested in accordance with FHRK test basis GE 101 (no. G 30 322-7-2) - FHRK 60 D10
  • All metal parts made of stainless steel 1.4301 (V2A), optionally also in stainless steel 1.4571/1.4404 (V4A)
  • Split design
  • Gas and pressurized water-tight
  • Absorbs small axial movements

Areas of use

  • For use in on-site casing pipe or waterproof concrete core drill hole (white tank)
  • Hinged, for already installed pipes
  • with replaceable insert

Product benefits

  • customized for your application
  • retrofitted around the existing cables
  • short installation time
  • interchangeable insert with collar, for a secure hold in the rubber press seal
  • the internal, split replacement insert can be replaced with a new one without complete disassembly

  • Rubber press seal 60 mm (sealing insert) made of EPDM
  • Interchangeable insert 60 mm with collar (except WE 125) made of EPDM

Downloads

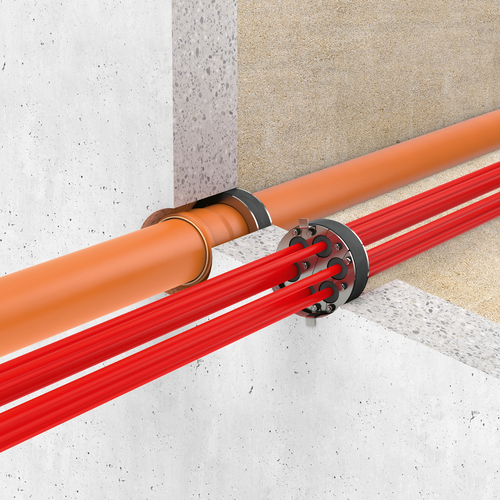

  • Installation situation
