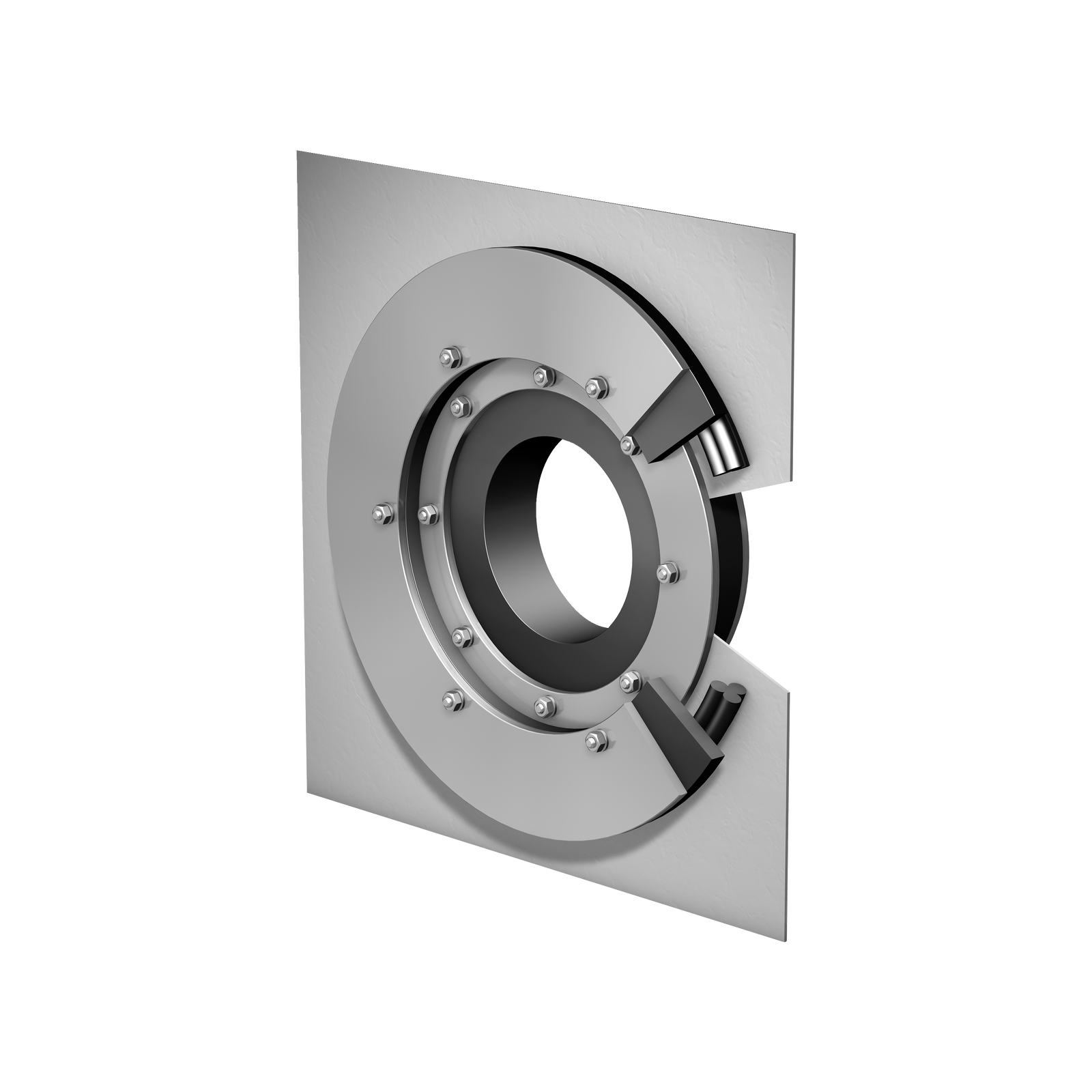

Curaflex® SD
- Sealing of penetrations
- Use in on-site casing pipe or concrete core drill hole
- For use with existing fresh concrete composite seal
- with additional sealing flange and butyl sealing tape
Curaflex® SD
added to
.
Curaflex® SD
removed from
.
Technical details
- with sealing flange to DIN18533
- Gas and water-tight
- Radon-tight - in accordance with FHRK leaflet MB 101. Meets the requirements for radon precaution areas
- Installation from the side facing the pressure
- Tested with SikaProof A® fresh concrete bonding system
- Tested with Preprufe® fresh concrete bonding system
Areas of use
- Sealing of penetrations
- Use in on-site casing pipe or concrete core drill hole
- For use with existing fresh concrete composite seal
- with additional sealing flange and butyl sealing tape
Product benefits
- Large sealing areas
- Permanently tight without retensioning (maintenance-free)
- Higher sealing performance of the gasket insert thanks to DOYMA-Grip
- System component, without cuts or divisions, with watertight welded bolts
- integrated sealing flange with butyl sealing tape for sealing on the existing fresh concrete composite seal

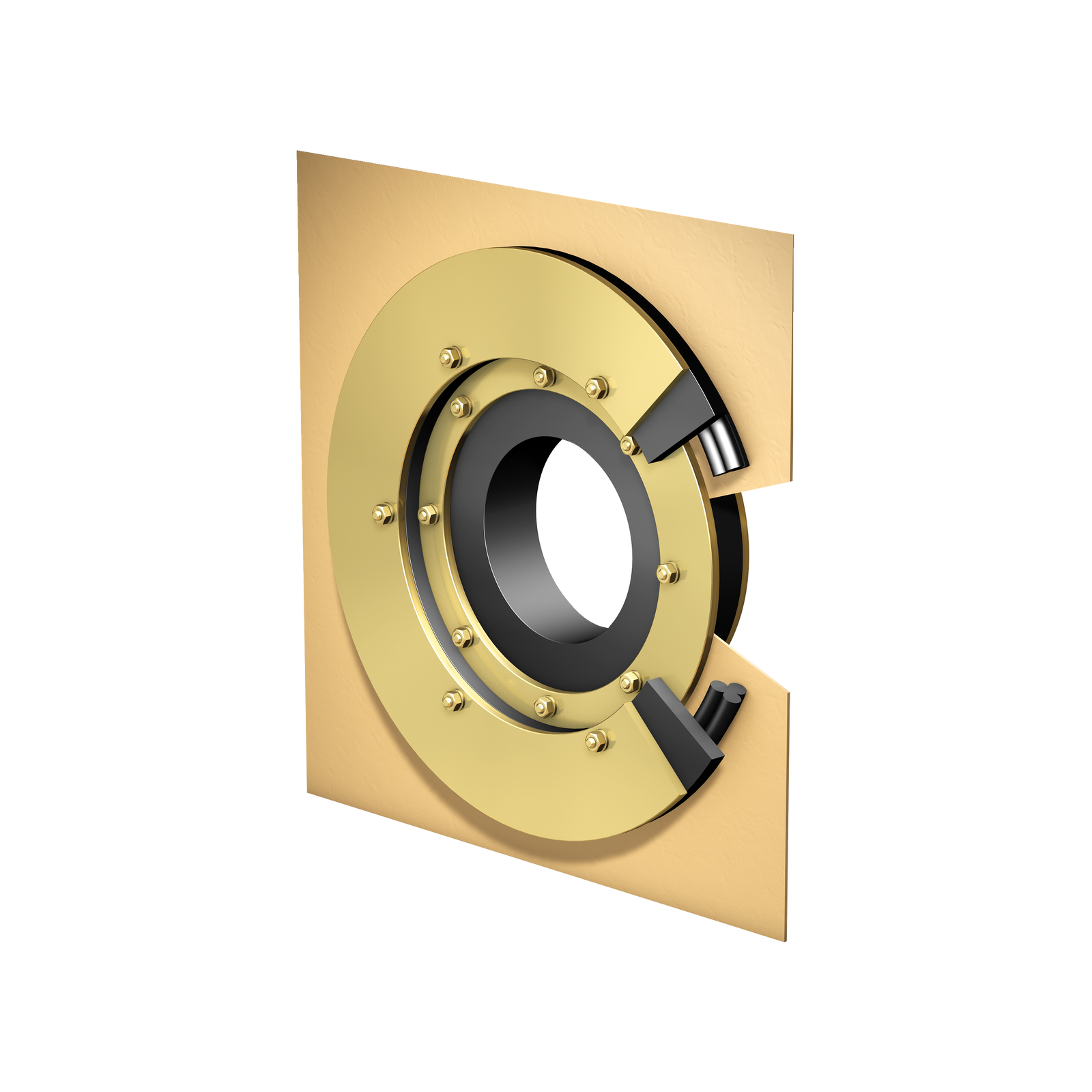

- Frame ringssteel rings ggv corrosion protection coating; optionally made of stainless steel 1.4301 (V2A) or 1.4571 / 1.4404 (V4A)
- with integrated sealing flange incl. butyl sealing tape (type 1753)
- Rubber seal: Elastomer, DN80 to DN300 1 x 40 mm thick EPDM gaskets (DOYMA-Grip) and DN 350 to DN 600 optionally 2 x 40 mm thick EPDM gaskets, optionally NBR (fuel/oil resistant)
Media
skip
-

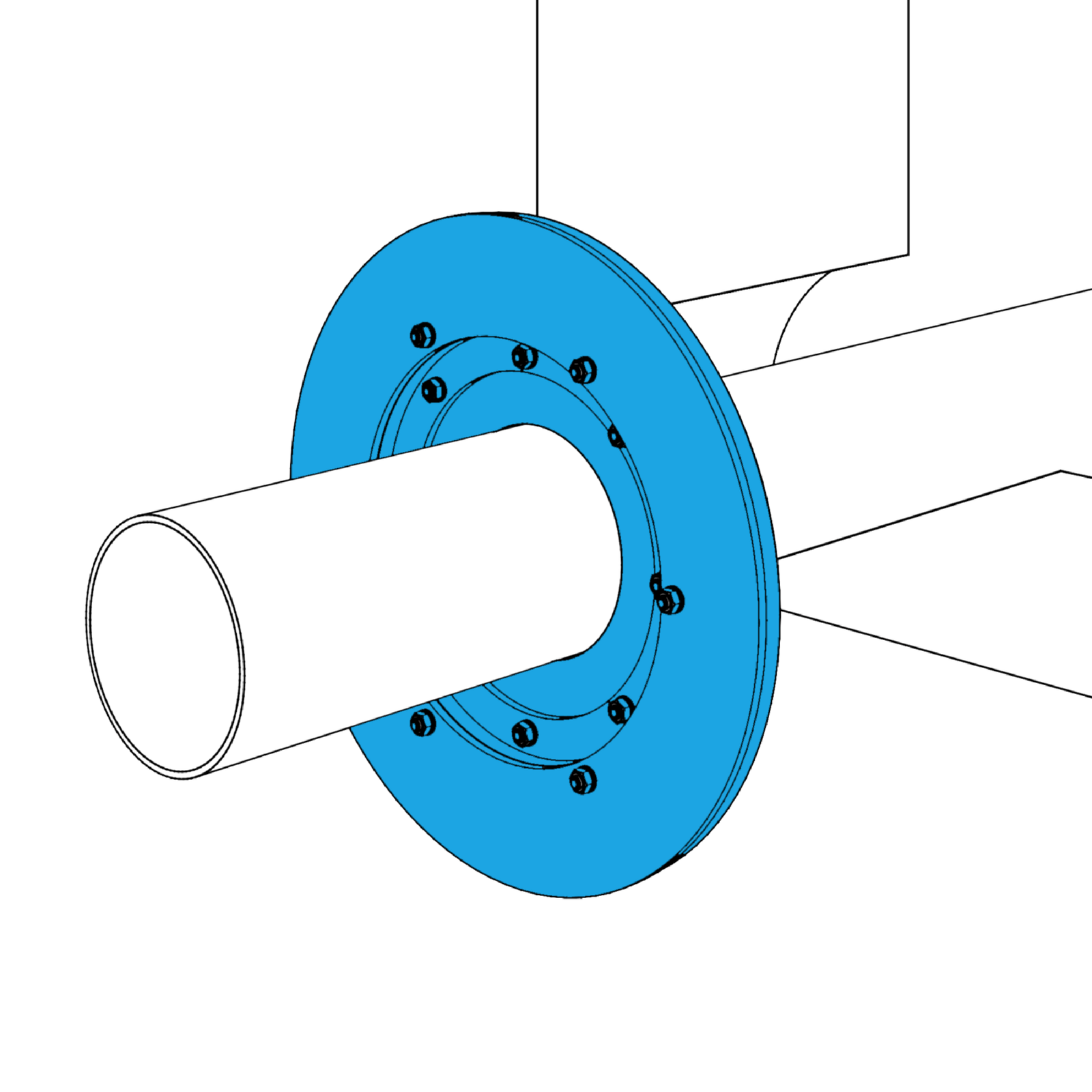

Installation situation
Example Installation of Curaflex® SD
