Curaflex® D
- Sealing of penetrations
- Use in lining pipe provided by the customer or WU concrete core drilling (white tank)
- with additional large ring for axial fixation
- for high hydrostatic pressure
Curaflex® D
added to
.
Curaflex® D
removed from
.
Technical details
- Tested in accordance with FHRK test basis GE 101 (No. G 30 322-2-2) - FHRK 57 LD10
- Gas and water-tight
- Radon-tight - in accordance with FHRK data sheet MB 101, meets the requirements for radon precaution areas
- Angles of the service pipes up to 8º possible
- Absorption of axial movements
- Double-sealing, with large ring
Areas of use
- Sealing of penetrations
- Use in lining pipe provided by the customer or WU concrete core drilling (white tank)
- with additional large ring for axial fixation
- for high hydrostatic pressure
Product benefits
- Large sealing areas
- Permanently tight without retensioning (maintenance-free)
- Higher sealing performance of the gasket insert thanks to DPS and DOYMA-Grip
- System component, without cuts or divisions, with watertight welded bolts
- The large ring ensures a secure fit - e.g. for high pressure
- Installation from the side facing the pressure
- www.doyma.de

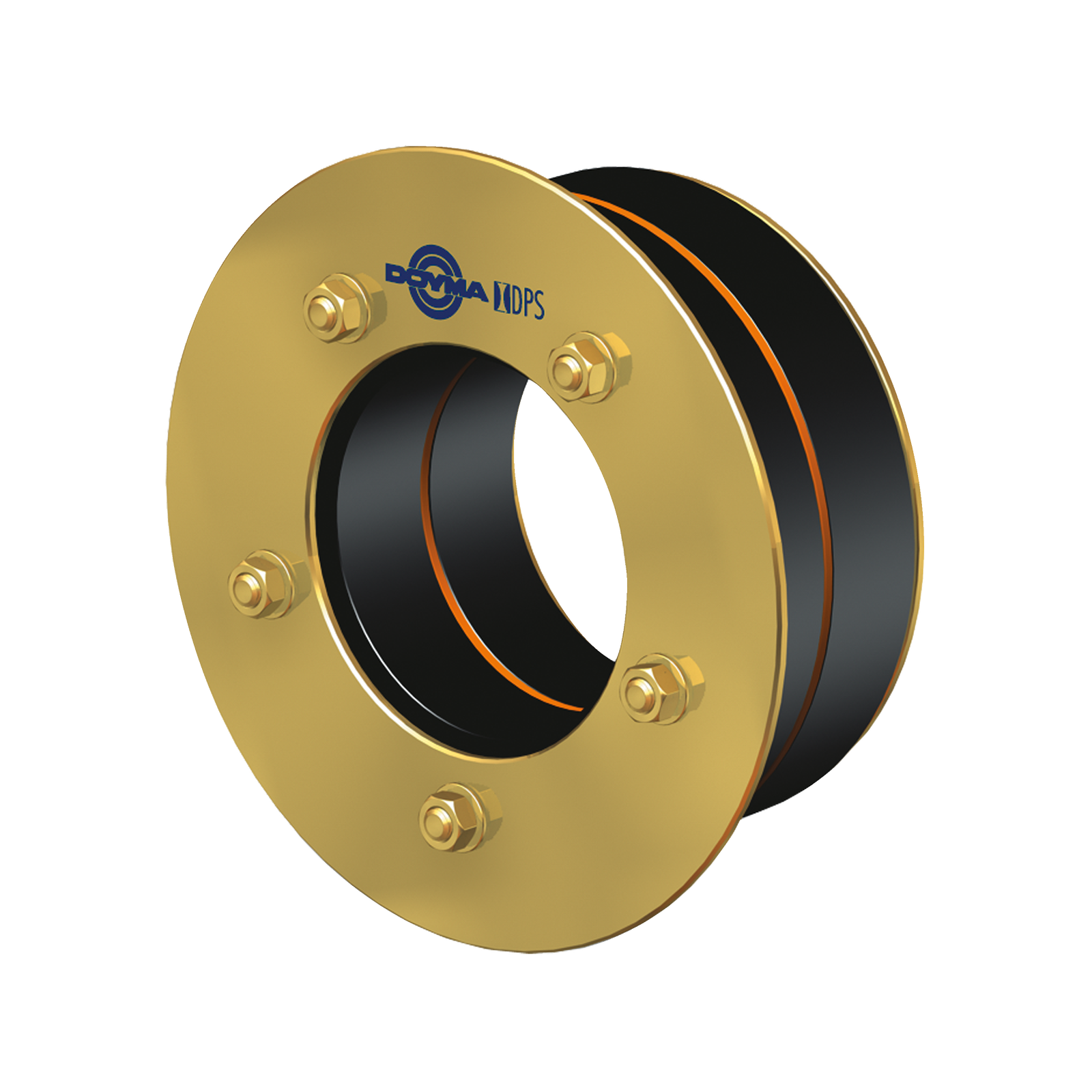

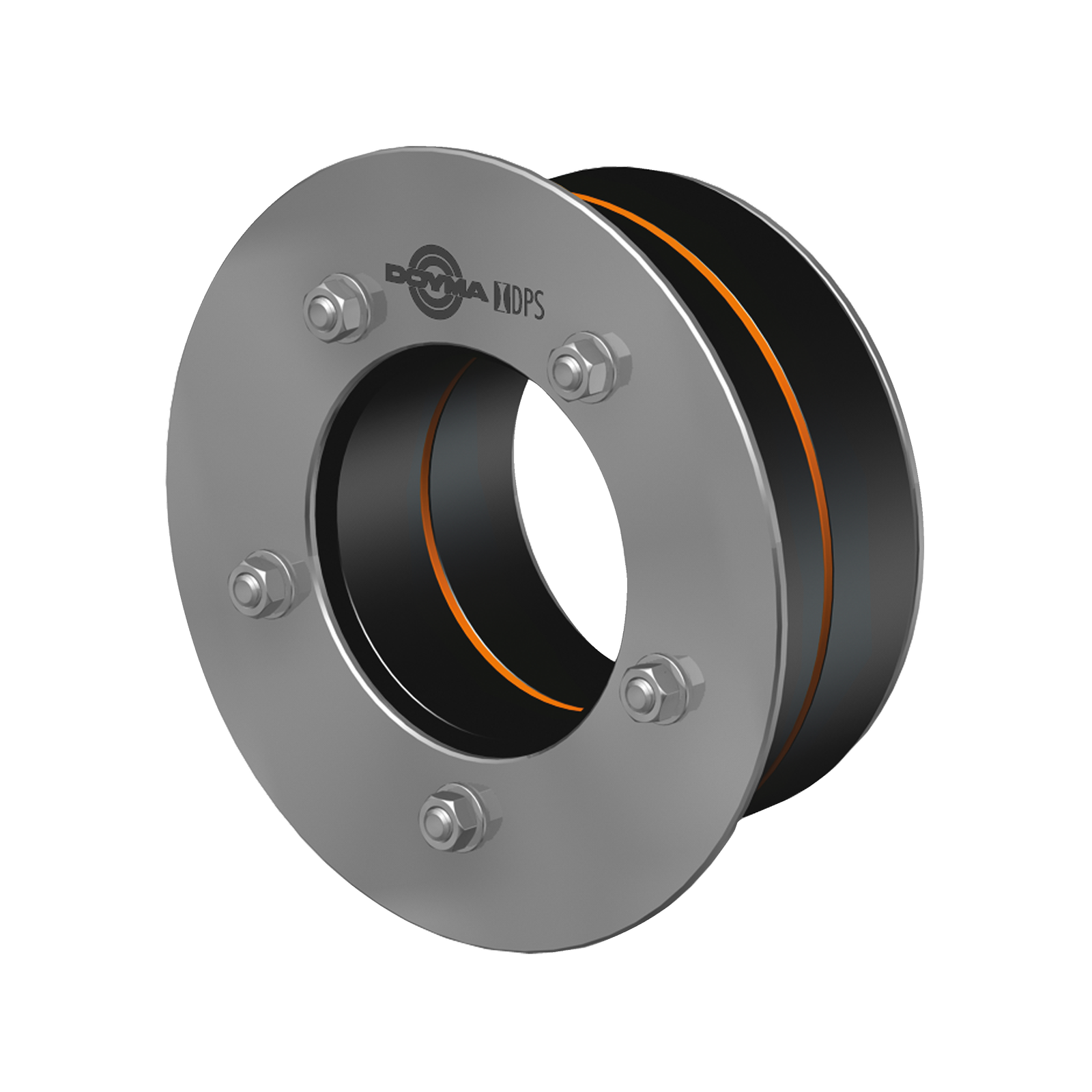

- #Frame rings: asymmetrically profiled steel rings (DPS up to KB/DN 350), ggv corrosion protection coating; optionally made of stainless steel 1.4301 (V2A) or 1.4571/1.4404 (V4A)
- Rubber seal: Elastomer, 2 x 27 mm thick EPDM seal (DOYMA-Grip), optionally EPDM-TW, NBR (fuel/oil resistant) or silicone (high temperature resistant) or FPM (chemical resistant)
- Orange center ring (up to KB/DN 350)
