Curaflex® 9000
- Recess for penetrations
- Use in structures structures to be built
- for WU concrete constructions (white tank)
- for high static load
Curaflex® 9000
added to
.
Curaflex® 9000
removed from
.
Technical details
- gas- and watertight
- Radon-safe - in accordance with FHRK data sheet MB 101

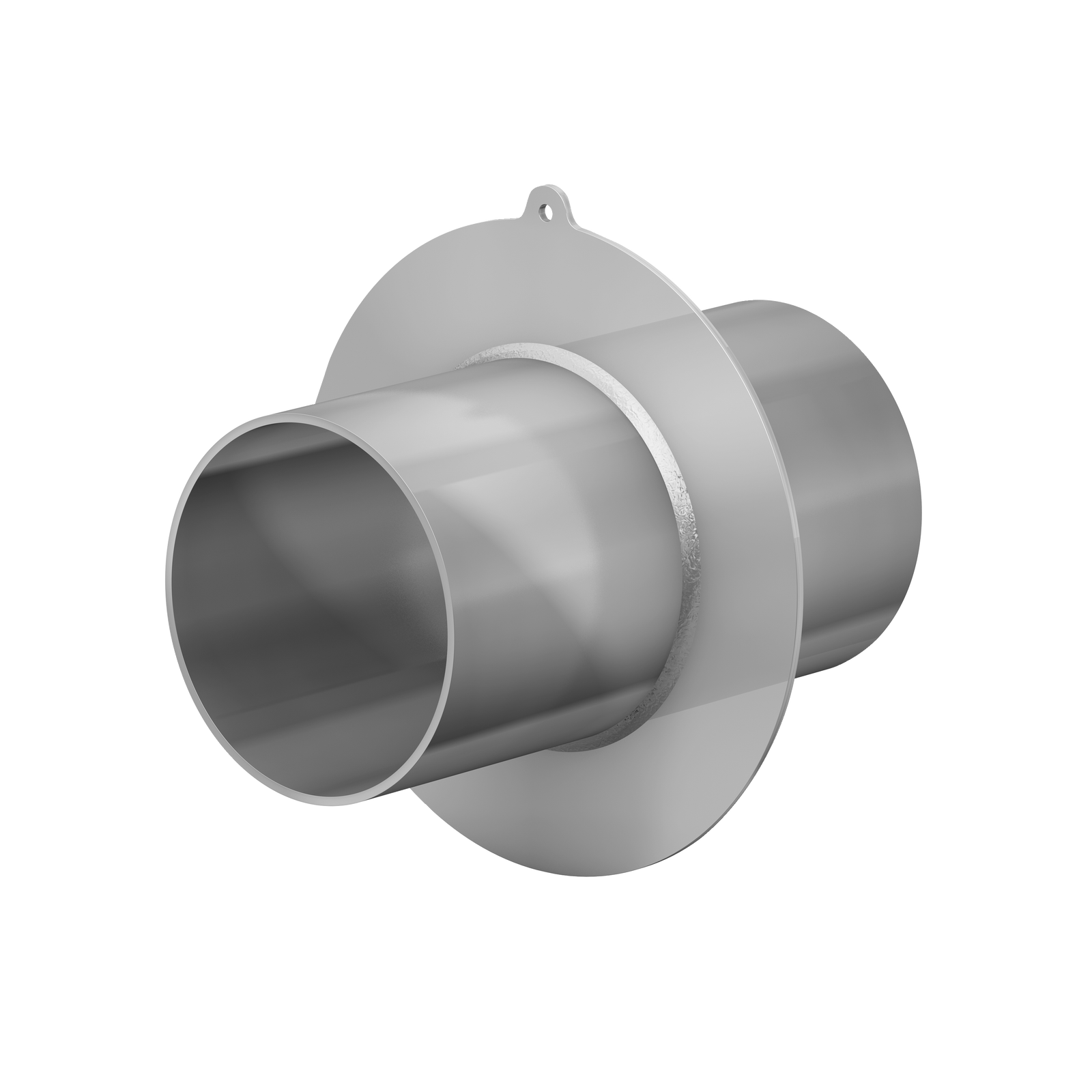

- 75 mm circumferential center flange made of steel (can be optionally welded at any point)
- Center flange can be used as an adhesive or wall flange if required
- Tested in accordance with FHRK test basis GE 102 (No. G 30 322-2-10)
Areas of use
- Recess for penetrations
- Use in structures structures to be built
- for WU concrete constructions (white tank)
- for high static load
Product benefits
- Steel design, for high static loads
- Optimally designed inner wall to accommodate DOYMA sealing systems and house entries
- for a white tank (waterproof concrete constructions without waterproofing membranes/thick coatings)
- Steel ggv corrosion protection coating; optionally made of stainless steel 1.4301 (V2A) or 1.4571/1.4404 (V4A)
