Curaflex® 6.6000
- Recess for penetrations
- Use in structures structures to be built
- for use with waterproofing membrane or thick coating (black tank)
- with fixed and loose flange
- for high static load
Curaflex® 6.6000
added to
.
Curaflex® 6.6000
removed from
.
Technical details
- with fixed and loose flanges to DIN18533
- Gas and watertight
- Radon-proof - in accordance with FHRK data sheet MB 101
- Depending on the waterproofing membrane, with Curaflex® additions (1775) on both sides for thin and hard membranes or accessories for thick coatings (1776): Sanding of the contact surfaces of the fixed/loose flange
Areas of use
- Recess for penetrations
- Use in structures structures to be built
- for use with waterproofing membrane or thick coating (black tank)
- with fixed and loose flange
- for high static load
Product benefits
- Optimally designed inner wall to accommodate DOYMA sealing systems and house entries

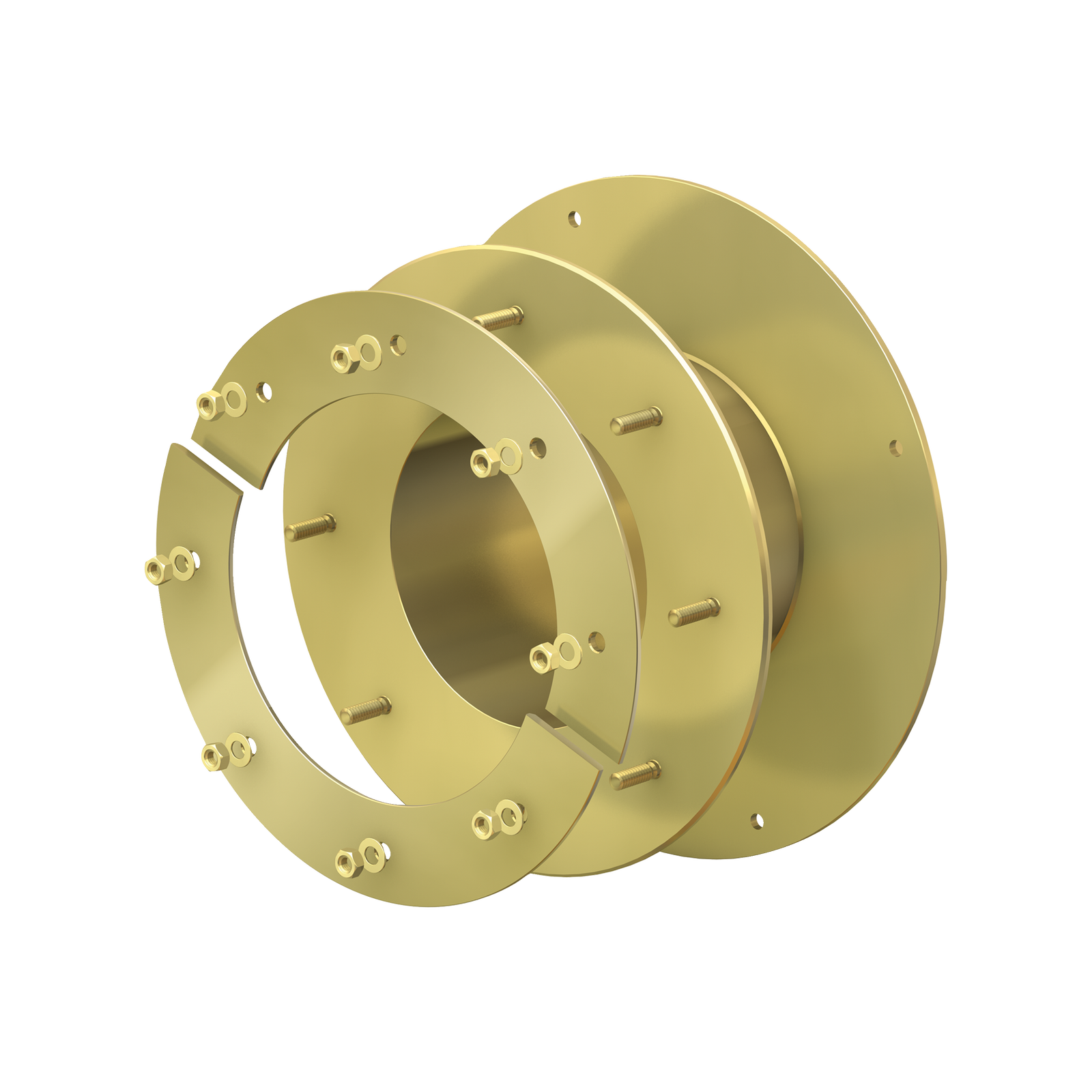

- Steel casing pipe for high static loads with integrated fixed and loose flange (loose flange split)
- With threaded bolts (no flush installation)
- ggv corrosion protection coating; optionally made of stainless steel 1.4301 (V2A) or 1.4571/1.4404 (V4A)
- With thick coating with sanded contact surfaces still to be applied
