UGA KSS
- Cable protection conduit for gas-tight and watertight cable routing
- Simple connection to sealing pack, mounting flange, system cover
UGA KSS
added to
.
UGA KSS
removed from
.
Technical details

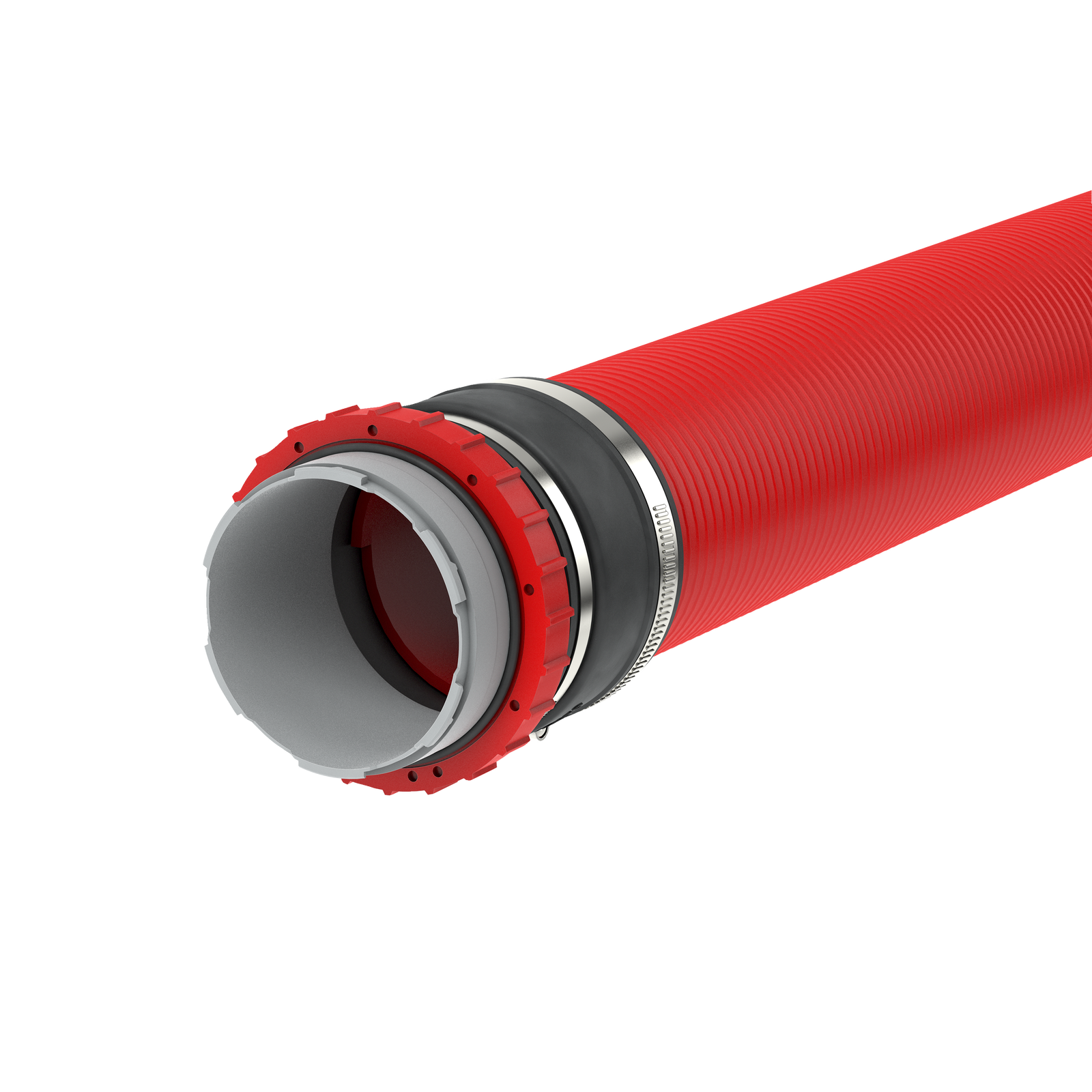

The KSS cable protection systems from UGA reliably protect cables against moisture and mechanical influences. Their versatile connection components allow them to be connected to sealing packs, conduits, core drill holes and other cable protection conduits and pipes. A gas and pressurized water-tight connection between two buildings is also possible at any time.
No costly excavation work is required if the cable layout is changed. KSS systems are available in diameters of 80, 110, 125 and 150 mm. They are made of mechanically strong, flexible plastic and can easily be set in concrete. The minimum bending radius is between half a meter and one meter, depending on the hose diameter.
Areas of use
- Cable protection conduit for gas-tight and watertight cable routing
- Simple connection to sealing pack, mounting flange, system cover
Product benefits
- Gas and pressurized water-tight connection
- Cable protection during building and earth movements thanks to elastic connection joint
- Smooth inner surface for gentle cable pulling
- Wide range of connection components
- Compatible with other commercially available systems and cable conduits
- Suitable for setting in concrete
- Can be laid as empty conduit for subsequent use
- flexible, mechanically highly resilient plastic spiral conduit
Plastic spiral hose, in rolls of 25 m/roll.
Media
skip
-

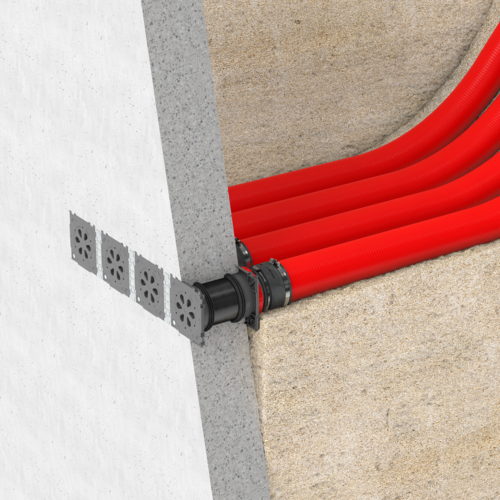

Installation situation
