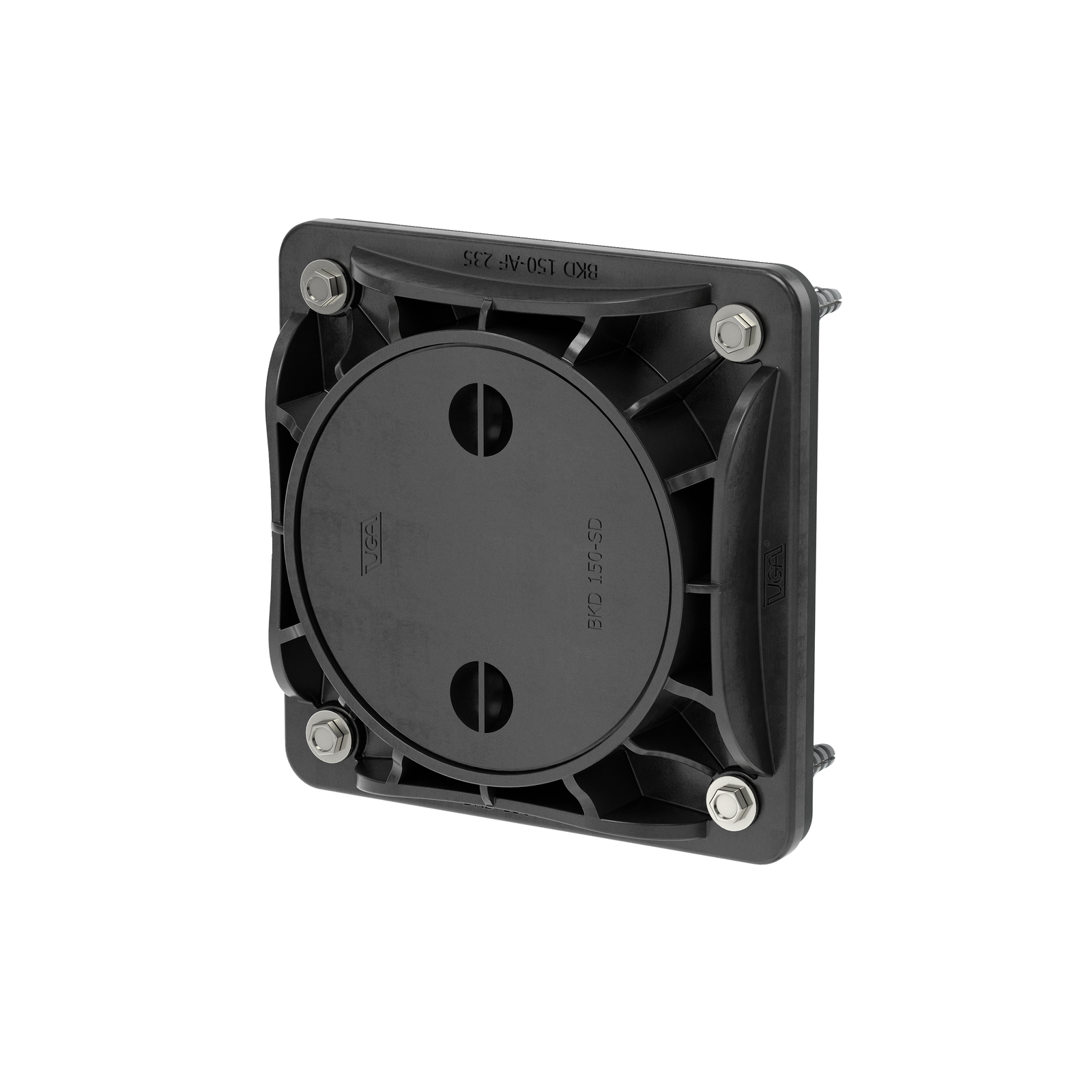

BKD 150 mounting flange

  • Use in front of the wall
  • for waterproof concrete constructions (white tank)
  • Ideal for renovations or existing buildings
  • with bayonet lock
Dealer search
Pressing water

Technical details

  • Core bore diameter max. 150 mm
  • Flange size: 235 x 235 mm

Areas of use

  • Use in front of the wall
  • for waterproof concrete constructions (white tank)
  • Ideal for renovations or existing buildings
  • with bayonet lock

Product benefits

  • for sealing in front of a waterproof concrete core drilling in a wall or ceiling
  • Quick and easy installation
  • Fastening elements optionally available in galvanized steel or A4 stainless steel.
  • for one-sided connection of a system cover or KSS system

  • Surface-mounted flange for holding the system cover, flange seal, protective cover and fastening elements

Downloads

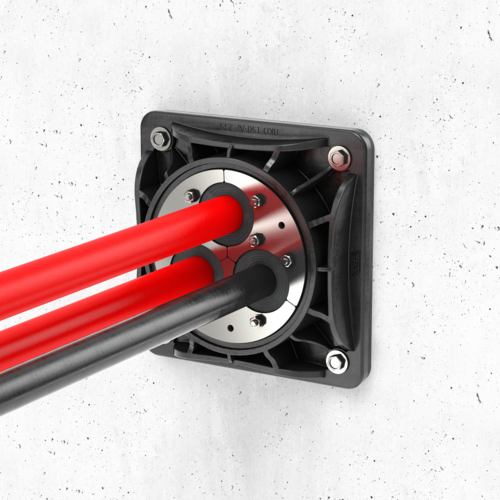

  • Installation situation
