ZZ® M22-DE
- ECO stone penetration seal
- Partitioning of cables, pipes and combinations
- Up to 90 minutes fire resistance
- In lightweight partition walls, solid walls and solid ceilings
- In angular component openings
- Can be used as a temporary or permanent fire barrier
ZZ® M22-DE
added to
.
ZZ® M22-DE
removed from
.
Technical details
- Lightweight partition walls, d ≥ 10 cm / 7.5 cm (30 min.)
- Solid walls, d ≥ 10 cm / 7 cm (60 min.) / 5 cm (30 min.)
- Solid ceilings, d ≥ 15 cm
- Bulkhead thickness, d ≥ 17 cm / 16 cm / 12 cm (90 / 60 / 30 min.)
- Cables of all types (without internal cavities), ø ≤ 80 mm
- Cable bundles, ø ≤ 60 mm, individual cables ø ≤ 21 mm
- Steel, stainless steel, cast steel and copper pipes
- Cable support structures made of steel, aluminum or plastic
- plastic may be routed through the penetration seal
- EIectro installation pipes, flexible or rigid, made of plastic ø ≤ 20 mm, up to 2 pieces directly next to each other
- Mineral wool mats or shells, d ≥ 20 mm,
- incl. PVC sheathing or sheet steel if required
Areas of use
- ECO stone penetration seal
- Partitioning of cables, pipes and combinations
- Up to 90 minutes fire resistance
- In lightweight partition walls, solid walls and solid ceilings
- In angular component openings
- Can be used as a temporary or permanent fire barrier
Product benefits
- Simple and efficient installation, even with larger penetration seals
- Reduced material usage due to narrow penetration seal thicknesses, especially with lower fire resistance durations
- Dust and fiber-free processing

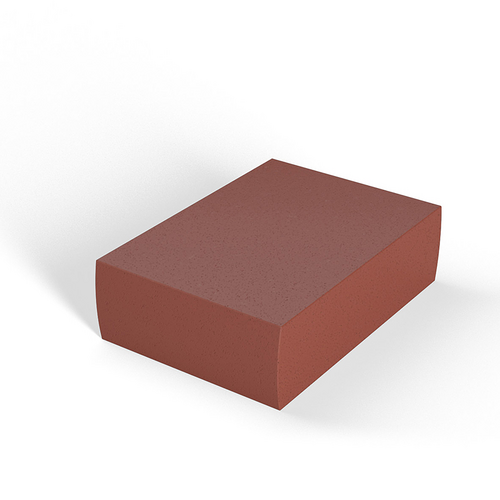

- ZZ 217-120 Fire protection brick, 170 x 120 x 60 mm

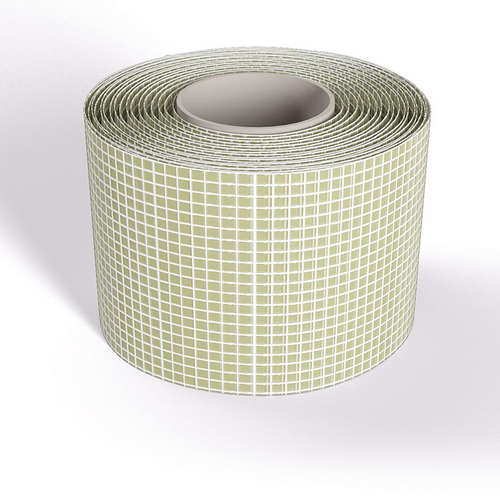

- Glass fabric strip 170 width 170 mm, 5 m on roll
- ZZ 300 Fire protection compound 310 ml cartridge
- ZZ 333 Fire protection compound 310 ml cartridge
- ZZ Label DE Combination label for systems according to abZ/abG
Please refer to the general type approval for detailed information on the areas of application and design regulations.
Downloads
Media
skip
-

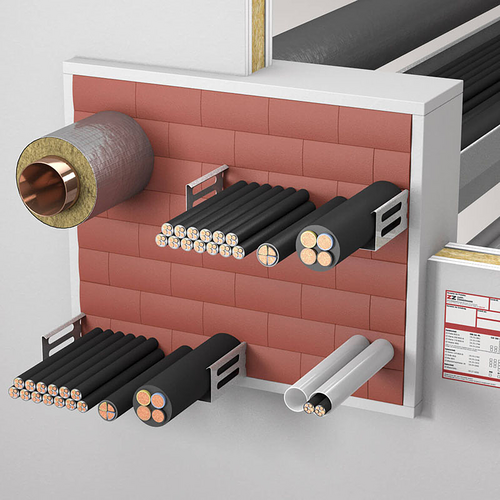

Installation situation
-
