ZZ^® M10-DE

Name: ZZ® M10-DE
Brand: Doyma
SKU: ZZ_M10_DE

ZZ® M10-DE added to .

ZZ® M10-DE removed from .

Dealer search

Technical details

Lightweight partition walls, d ≥ 10 cm / 7.5 cm (30 min.)
Solid walls, d ≥ 10 cm / 7 cm (60 min.) / 5 cm (30 min.)
PRIOWALL type walls, d ≥ 4.2 cm
Solid ceilings, d ≥ 15 cm
Bulkhead thickness, d ≥ 15 cm
Max. Opening size ø ≤ 25 cm
Cables of all types (without internal cavities), ø ≤ 80 mm
Cable bundles, ø ≤ 100 mm, individual cables ø ≤ 21 mm
Cable support structures made of steel, aluminum or
plastic may be routed through the penetration seal
EIectro installation pipes, flexible or rigid, made of plastic ø ≤ 20 mm, up to 2 pieces next to each other
Mineral wool mats or shells, d ≥ 20 mm, including PVC sheathing if necessary

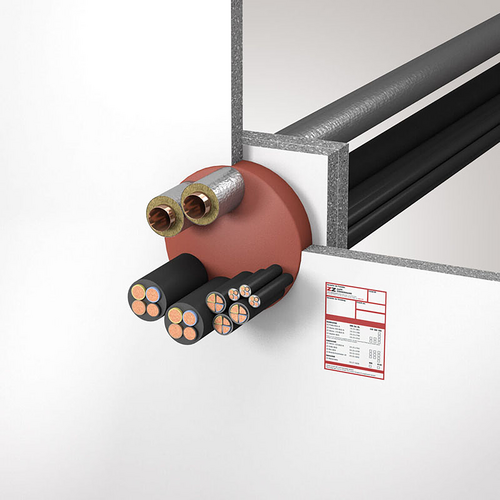

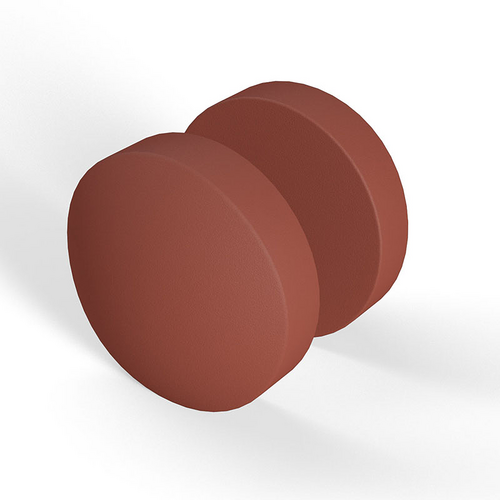

Plug penetration seal
Partitioning of cables, pipes and combinations
Up to 90 minutes fire resistance
In lightweight partition walls, solid walls, PRIOWALL type walls and solid ceilings
In round component openings
Can be used as temporary or permanent fire insulation

Efficient and simple creation of penetration seals thanks to suitable product sizes

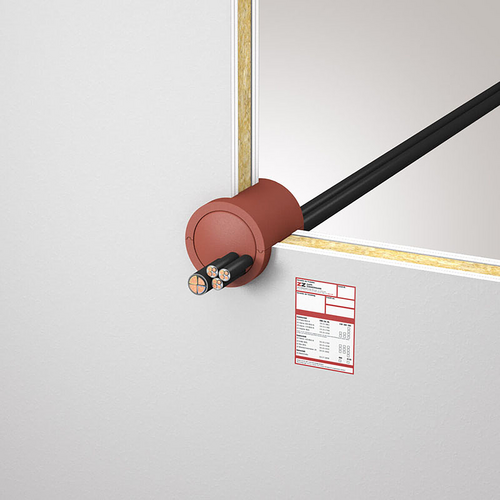

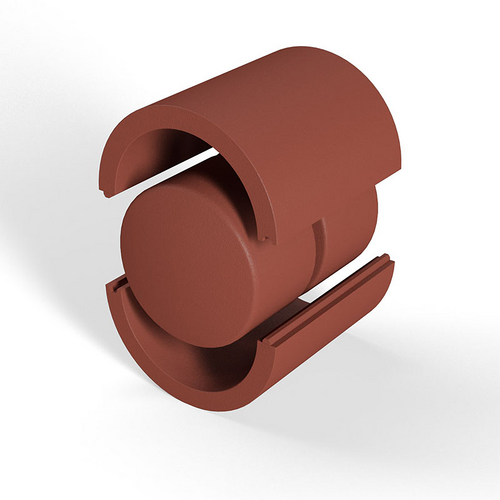

Elimination of reveal formation in lightweight partition walls thanks to ^ZZ® fire protection round box
Simple subsequent installation of cables by simply piercing the soft material
Dust and fiber-free processing

Please refer to the general type approval for detailed information on the areas of application and design regulations.
