HKD DOMO-V
- Use in lining pipe provided by the customer or WU concrete core drilling (white tank)
HKD DOMO-V
added to
.
HKD DOMO-V
removed from
.
Technical details
- Tested in accordance with FHRK test basis GE 101 (No. G 30 322-2-6) - FHRK 40 LD10
- Tight against pressing water
- Radon-tight - in accordance with FHRK data sheet MB 101, meets the requirements for radon precaution areas

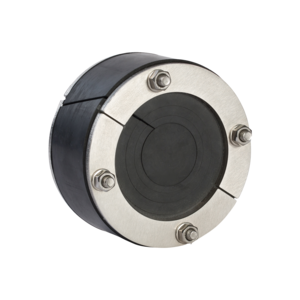

- HKD DOMO-VT: Hinged, for pipes already laid for DN 100 casing pipe/core drill hole
- All metal parts made of stainless steel 1.4301 (V2A/Inox 304), optionally 1.4571 (V4A/Inox 316)
- Seal material: EPDM 40 mm wide
- gas-tight
Areas of use
- Use in lining pipe provided by the customer or WU concrete core drilling (white tank)
Product benefits
The HKD DOMO-V types can be variably adjusted to the existing pipe or cable diameters. One HKD DOMO-V type can therefore replace up to 10 standard sizes. The HKD DOMO-VT type is hinged for use with existing pipes. Adjustment to the respective diameter is made by simply removing the rubber elements that are not required.
- All metal parts made of stainless steel 1.4301 (V2A/Inox 304), optionally 1.4571 (V4A/Inox 316)
- Sealing material: EPDM 40mm wide
V4A on request
