Curaflex® A40
- Sealing of penetrations
- Use in on-site lining pipeor WU concrete core drilling (white tank)
- Extra wide, soft EPDM rubber, ideal for plastic plastic casing pipes
Curaflex® A40
added to
.
Curaflex® A40
removed from
.
Technical details
- Tested in accordance with FHRK test basis GE 101 (No. G 30 322-2-1) - FHRK 40 D01
- Gas and water-tight
- Radon-tight - in accordance with FHRK data sheet MB 101, meets the requirements for radon precaution areas
- Angles of the service pipes up to 8º possible
- Absorption of axial movements
- single sealing
Areas of use
- Sealing of penetrations
- Use in on-site lining pipeor WU concrete core drilling (white tank)
- Extra wide, soft EPDM rubber, ideal for plastic plastic casing pipes
Product benefits
- Extra wide and soft EPDM rubber seal provides a particularly gentle seal on the service pipe
- Ideal for most plastic casing pipes (district heating)
- Permanently tight without re-tensioning (maintenance-free)
- higher sealing performance of the sealing insert thanks to DPS
- Can be used for double/element walls
- System component, without cuts or divisions, with watertight welded bolts
- #Frame rings: asymmetrically profiled steel rings (DPS up to KB/DN 350), ggv corrosion protection coating; optionally made of stainless steel 1.4301 (V2A) or 1.4571/1.4404 (V4A)
- Rubber seal: Elastomer, 40 mm thick EPDM seal
Media
skip
-
Installation situation

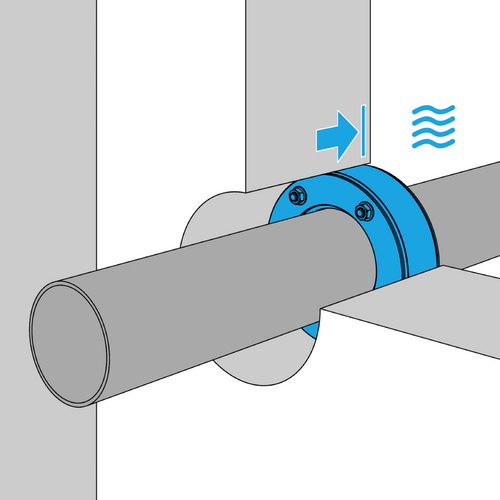

Example Installation of Curaflex® A40
