Curaflex® 7006

  • Flange plate with sleeve for penetrations
  • For use in front of the wall
  • for use with waterproofing membrane or thick coating (black tank)
  • with fixed and loose flange
  • Ideal for refurbishment
Dealer search
Pressing water

Technical details

  • with fixed and loose flange (loose flange split) made of steel to DIN18533
  • for buildings with waterproofing membranes/thick coating (black tank)
  • Gas and watertight
  • Radon-proof - in accordance with FHRK data sheet MB 101
  • Depending on the waterproofing membrane, with Curaflex® additions (1775) on both sides for thin and hard membranes or accessories for thick coatings (1776): Sanding of the contact surfaces of the fixed/loose flange

Areas of use

  • Flange plate with sleeve for penetrations
  • For use in front of the wall
  • for use with waterproofing membrane or thick coating (black tank)
  • with fixed and loose flange
  • Ideal for refurbishment

Product benefits

  • Sealing in front of the wall (condition of the drill hole/wall opening not relevant)
  • Suitable for penetrations without a suitable core drill hole or casing pipe
  • Optimally designed inner wall to accommodate DOYMA sealing systems

  • ggv corrosion protection coating; optionally made of stainless steel 1.4301 (V2A) or 1.4571/1.4404 (V4A)
  • with sanded contact surfaces if thick coating is still to be applied
  • Delivery incl. fastening material for solid walls

Downloads

[Translate to English:] Entwurf der Atriumfassade des neuen Axel-Springer Neubaus in Berlin. Skizziert bei Nacht. Fassade ist innen hell erleuchtet und das Licht scheint durch die große Fensterfront.

New Axel Springer building

The new Axel Springer building brings the Springer family together in Berlin. The building offers 3,500 workplaces. DOYMA has made a valuable contribution to the building with its special constructions.

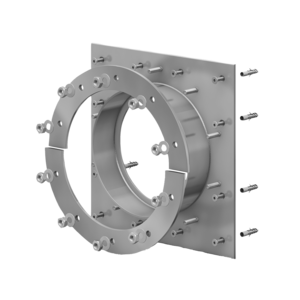

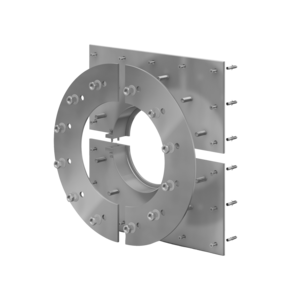

Related Products
