Curaflex Nova® Uno
- Sealing of penetrations
- Use in lining pipe provided by the customer or WU concrete core drilling (white tank)
Curaflex Nova® Uno
added to
.
Curaflex Nova® Uno
removed from
.
Technical details
- Tested in accordance with FHRK test specification GE 101 (No. G 30 322-2-5) - FHRK 40 LD10
- Gas and water-tight
- Radon-tight - in accordance with FHRK data sheet MB 101, meets the requirements for radon precaution areas
- Angles of the service pipes up to 8° possible
- Absorption of axial movements
- 40 mm sealing width
Areas of use
- Sealing of penetrations
- Use in lining pipe provided by the customer or WU concrete core drilling (white tank)
Product benefits
- with ITL system for optimum contact pressure - can also be fitted with a cordless screwdriver
- Permanently tight without retensioning (maintenance-free)
- Higher sealing performance of the sealing insert thanks to DOYMA-Grip
- Blue frame rings made of high-performance plastic
- Elastomer sealing ring, 40 mm wide, made of EPDM (DOYMA-Grip), optionally NBR (fuel/oil resistant)
- ITL nuts
- A4 stainless steel screws
Media
skip
-

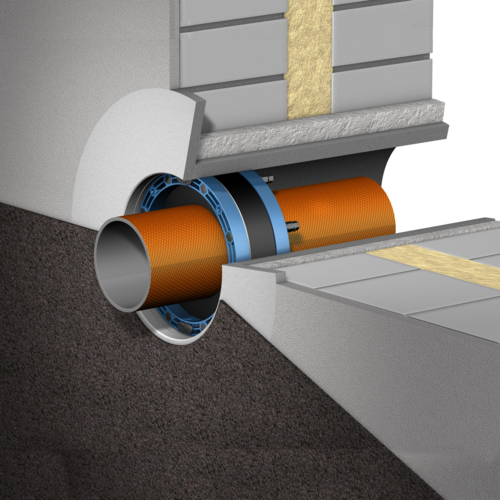

Installation situation
-

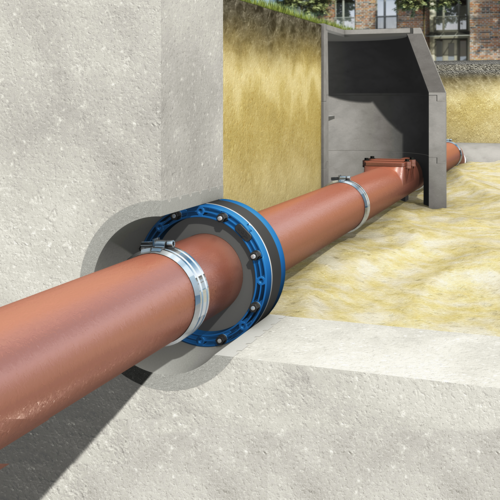

Installation situation
