Curaflam^® Rollit ISO Pro

Technical details

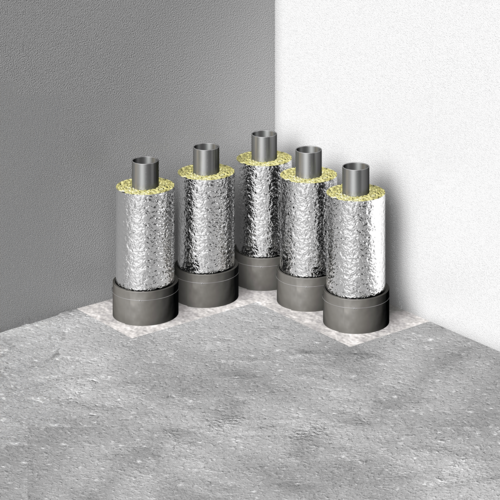

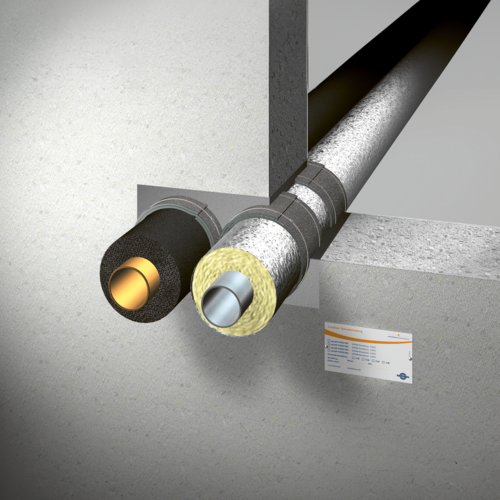

INSTALLATION CONDITIONS:

• Approved zero clearance in the system and to other systems such as Curaflam® XSPro, Curaflam® ECOPro and Curaflam® KonfixPro *
• in walls made of aerated concrete, reinforced concrete, concrete, masonry with a thickness ≥ 150 mm
• in lightweight partition walls with a thickness ≥ 100 mm
• in ceilings made of aerated concrete, reinforced concrete, concrete with a thickness ≥ 150 mm
• 2-layer wrapping with Curaflam® Rollit ISOPro on both sides
• Exception: 1-layer for mineral fiber insulation materials*
• Overlap of the fire protection wrapping tape on both sides:

75 mm for lightweight partition walls (thickness < 150 mm)

for lightweight partition walls, solid walls/ceilings 50 mm
