Curaflam® Inject BS+ K10
- for combustible and non-combustible pipes and individual cables
- Trades: waste water, drinking water, gas, heating, cooling, compressed air, sprinklers, electricity
Curaflam® Inject BS+ K10
added to
.
Curaflam® Inject BS+ K10
removed from
.
Technical details
INSTALLATION CONDITIONS
- in ceilings with a thickness
(M)LAR or P-3138/0325-MPA BS ≥ 80 mm / 150 mm
- in walls with a thickness
(M)LAR or P-3138/0325-MPA BS ≥ 80 mm / 150 mm
The requirements of the applicable MLAR, in particular the spacing regulations, must be taken into account.
Areas of use
- for combustible and non-combustible pipes and individual cables
- Trades: waste water, drinking water, gas, heating, cooling, compressed air, sprinklers, electricity
Product benefits
FOR SEALING OFF PIPES AND CABLES IN ACCORDANCE WITH (M)LAR:
- Steel, stainless steel, copper, cast iron Ø ≤ 160 mm
- Aluminum Ø ≤ 32 mm
- Plastic, plastic composite Ø ≤ 32 mm
- Individual cables and fiber optic cables
FOR SEALING IN ACCORDANCE WITH P-3138/0325-MPA BS FOR PIPES MADE OF:
- Steel, stainless steel (wall / ceiling) Ø ≤ 88.9 mm / ≤ 60.3 mm
- Copper, cast iron (wall / ceiling) Ø ≤ 54.0 mm / ≤ 42.0 mm
- Incl. synthetic rubber insulation (see abP for exact type), insulation thickness ≤ 56.0 mm
Please refer to the locally applicable LAR for detailed information regarding the areas of application and regulations for the design.
Media
skip
-

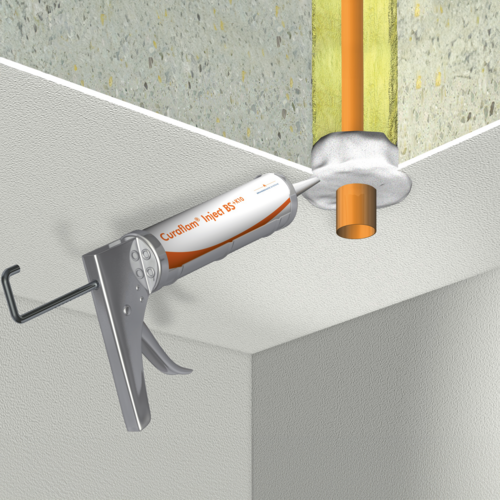

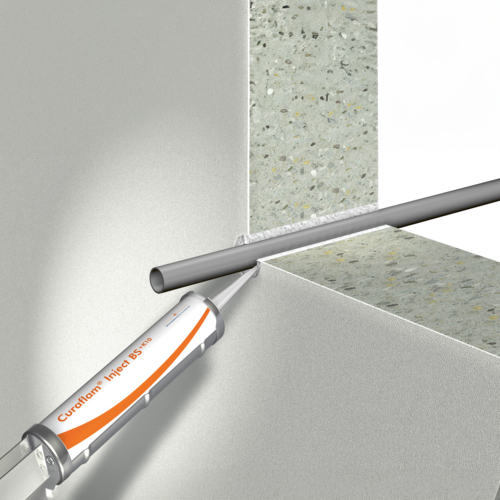

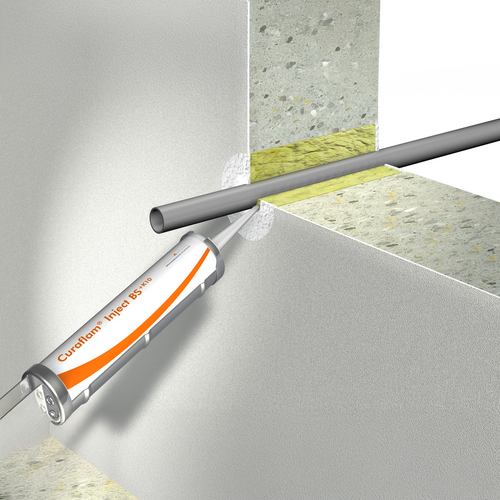

Installation situation
-
Installation situation
-
Installation situation
