DOYMAfix^® Connect HP Pro

Name: DOYMAfix® Connect HP Pro
Brand: Doyma
SKU: Connect_HP_Pro

DOYMAfix® Connect HP Pro added to .

DOYMAfix® Connect HP Pro removed from .

Technical details

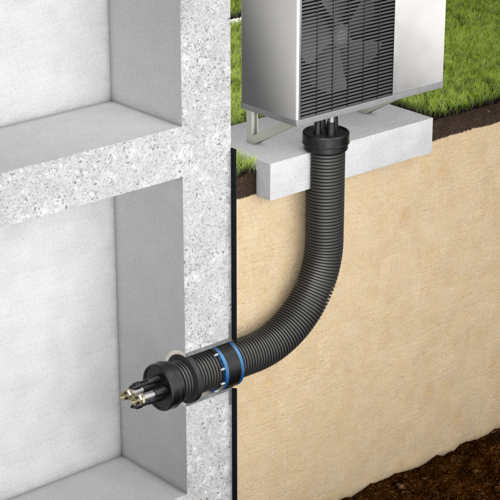

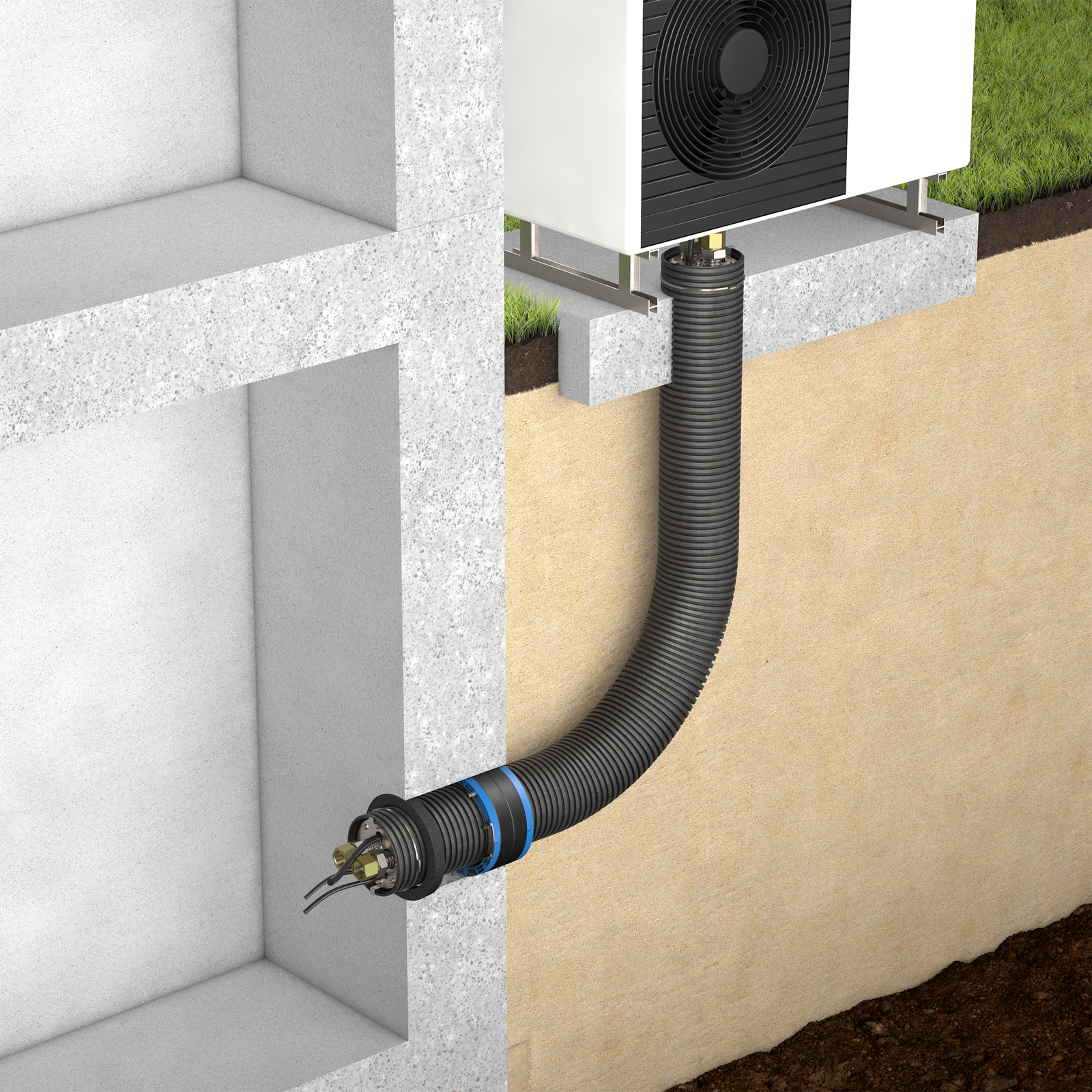

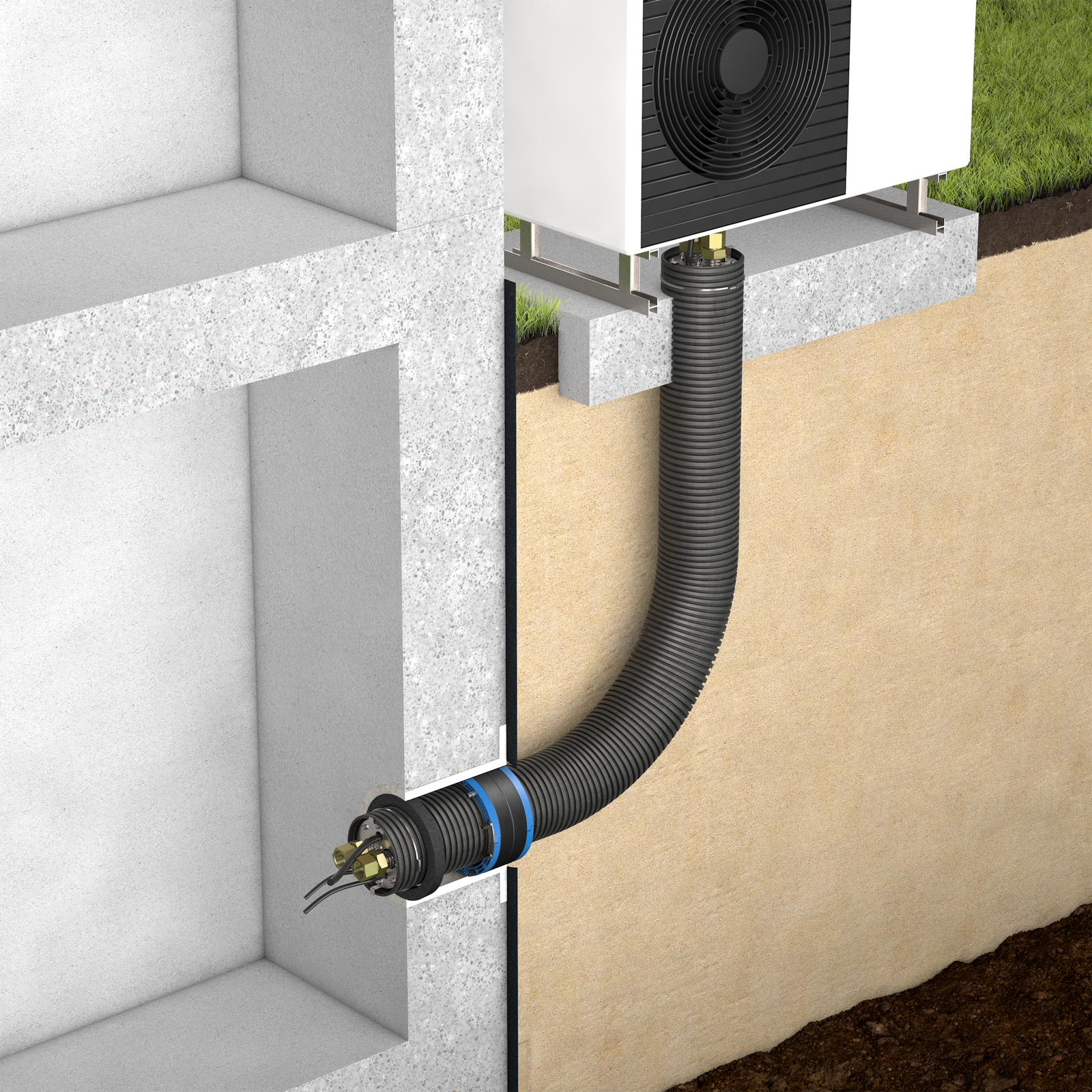

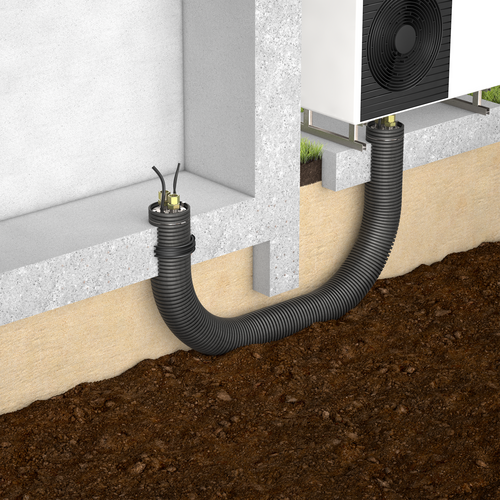

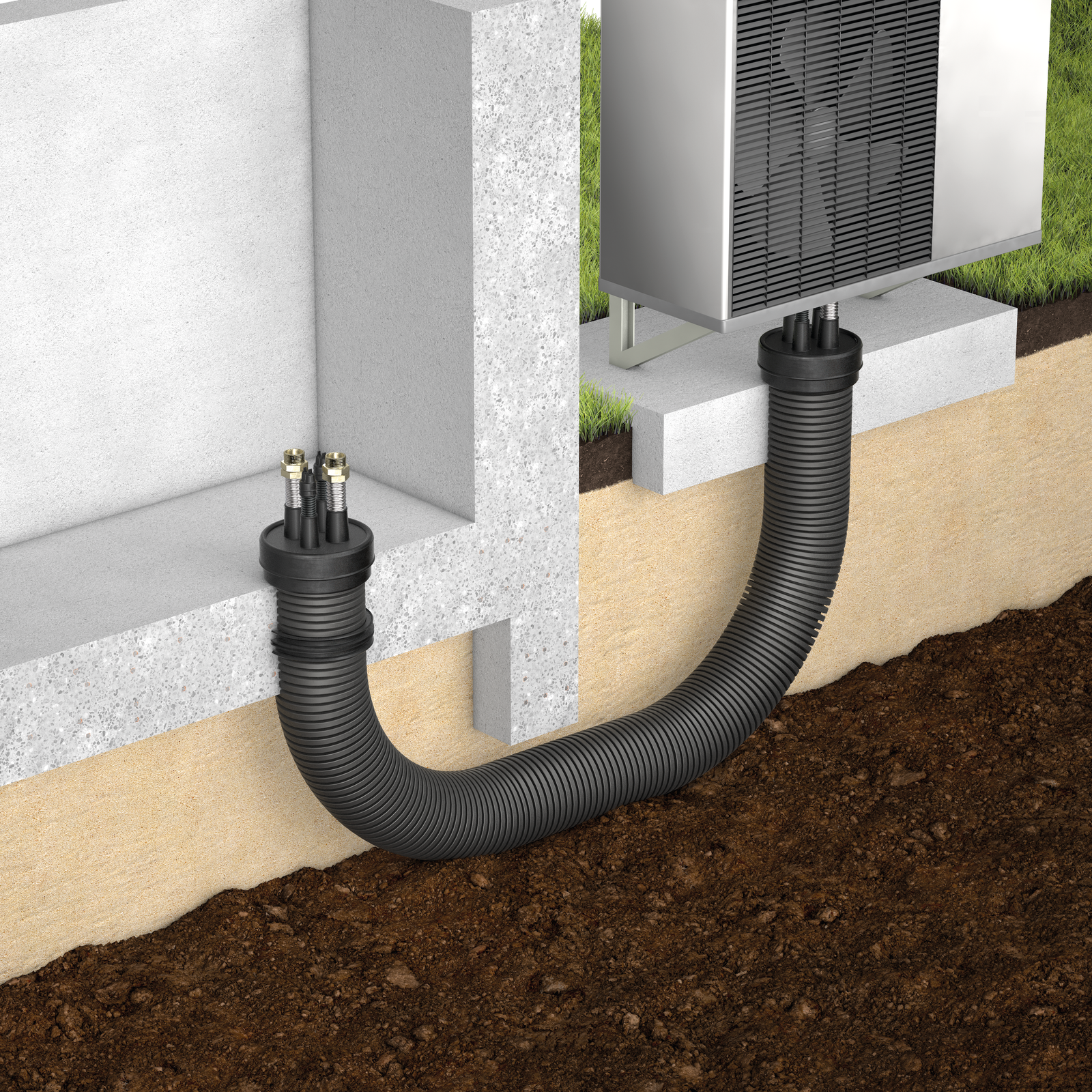

Flexible connection system for external building walls and floor slabs in contact with the ground
for air-to-water heat pumps (monobloc)

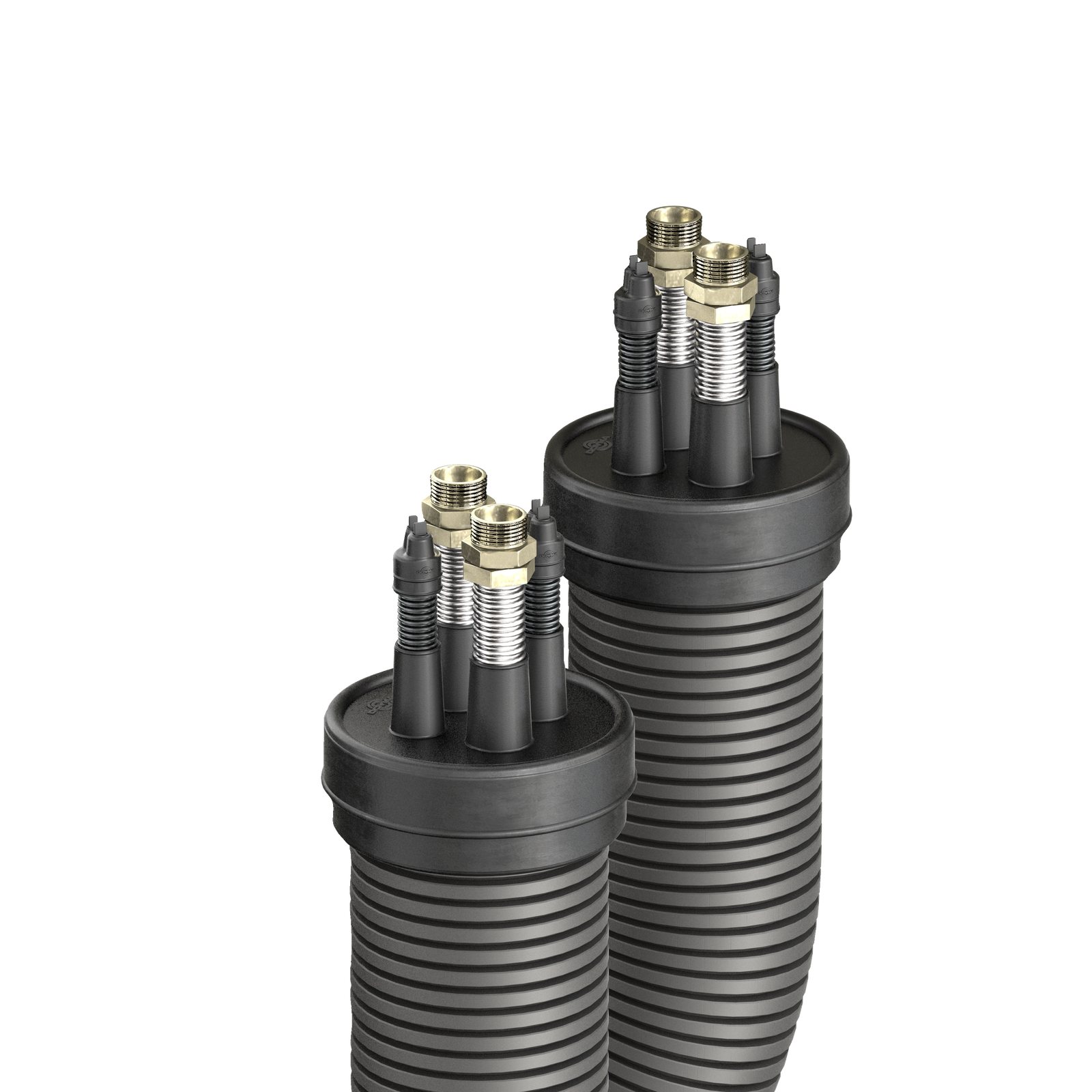

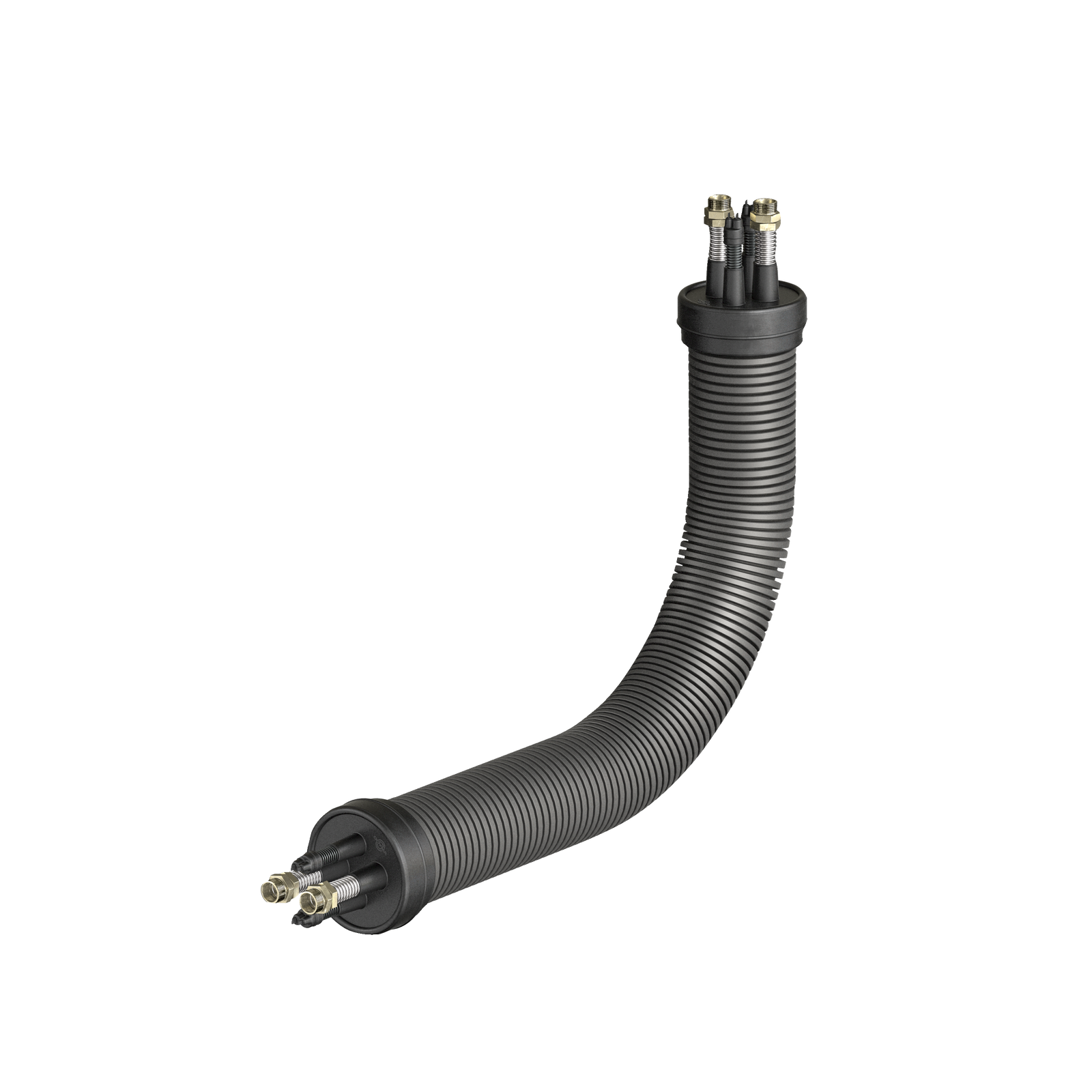

Stainless steel corrugated pipe for high flexibility during installation
Can be used individually thanks to suitable sealing systems

Can be used in both new and existing buildings
Ready for immediate connection, adapter nipple included
Corrugated stainless steel pipe offers high flexibility during connection (deformation without restoring forces)
Flexible production of bends without fittings
Quick and easy installation without special tools
One-person installation
All media lines protected by flexible DN200 casing pipe
Separate routing of pipes and cables
Separate routing of power and control cables
Quick and easy installation of the required cables (power/control cables)
Small bending radius of 0.5 m
100% oxygen-tight corrugated stainless steel conduits
Self-cleaning effect due to corrugated geometry
Cross-trade installation (shell construction, electrical, HVAC) creates flexibility in the construction process

SEALING SYSTEM - REQUIRED

Curaflex Nova^® Uno/wide HP/B for use in on-site casing pipe or waterproof concrete core drill hole (white tank)
Quadro-Secura^® Quick/O for use in the most common wall types with sealing in accordance with DIN 18533 W2.1-E or for waterproof concrete core drilling (white tank)
HKD wall collar for use in structures/building components still to be constructed from watertight concrete (white tank)
