DOYMAfix^® Connect HP Flex

Name: DOYMAfix® Connect HP Flex
Brand: Doyma
SKU: Connect_HP_Flex

DOYMAfix® Connect HP Flex added to .

DOYMAfix® Connect HP Flex removed from .

Technical details

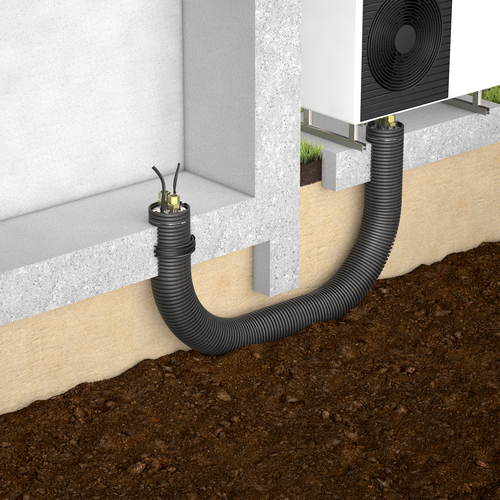

Flexible connection system for building exterior walls and floor slabs in contact with the ground
for air-to-water heat pumps (monoblock)

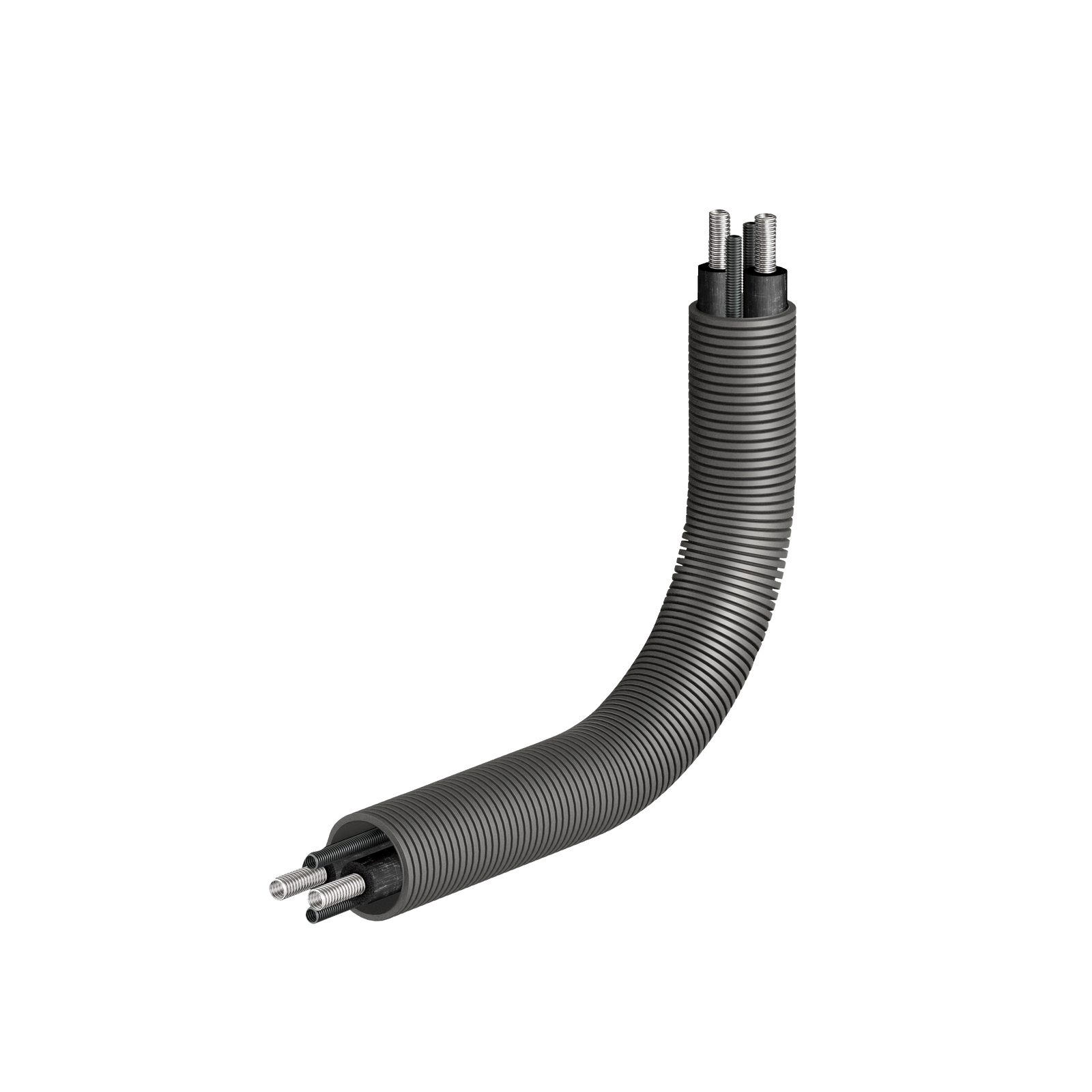

Stainless steel corrugated pipes for high flexibility during installation
Custom fabrication of the connection length

Suitable for both new construction and existing buildings
Customized connection lengths to meet specific needs
Ready for immediate connection thanks to a matching installation kit
One-person installation
Quick and easy installation without special tools
Separate routing of pipes and cables
Separate routing of power and control cables
Pulling the required cables (power/control lines) is quick and easy
Small bending radius of 0.5 m
Flexible creation of bends without fittings
100% oxygen-tight stainless steel corrugated tubes
Self-cleaning effect due to the corrugated geometry
Low pressure losses
Cross-trade installation (structural work, electrical, HVAC) provides flexibility in the construction process

Piping for custom assembly (20 m)

Installation kit for creating a connection system

WATERPROOFING SYSTEM - REQUIRED

Curaflex Nova^® Uno/wide HP/B for use in on-site liner pipes or waterproof concrete core drilling (white tank)
Quadro-Secura^® Quick/O for use in the most common wall types with waterproofing in accordance with DIN 18533 W2.1-E or for waterproof concrete core drilling (white tank)
HKD wall collars for use in structures or structural components to be constructed from waterproof concrete (white tank)
