ZZ^® M60-S90

Technical details

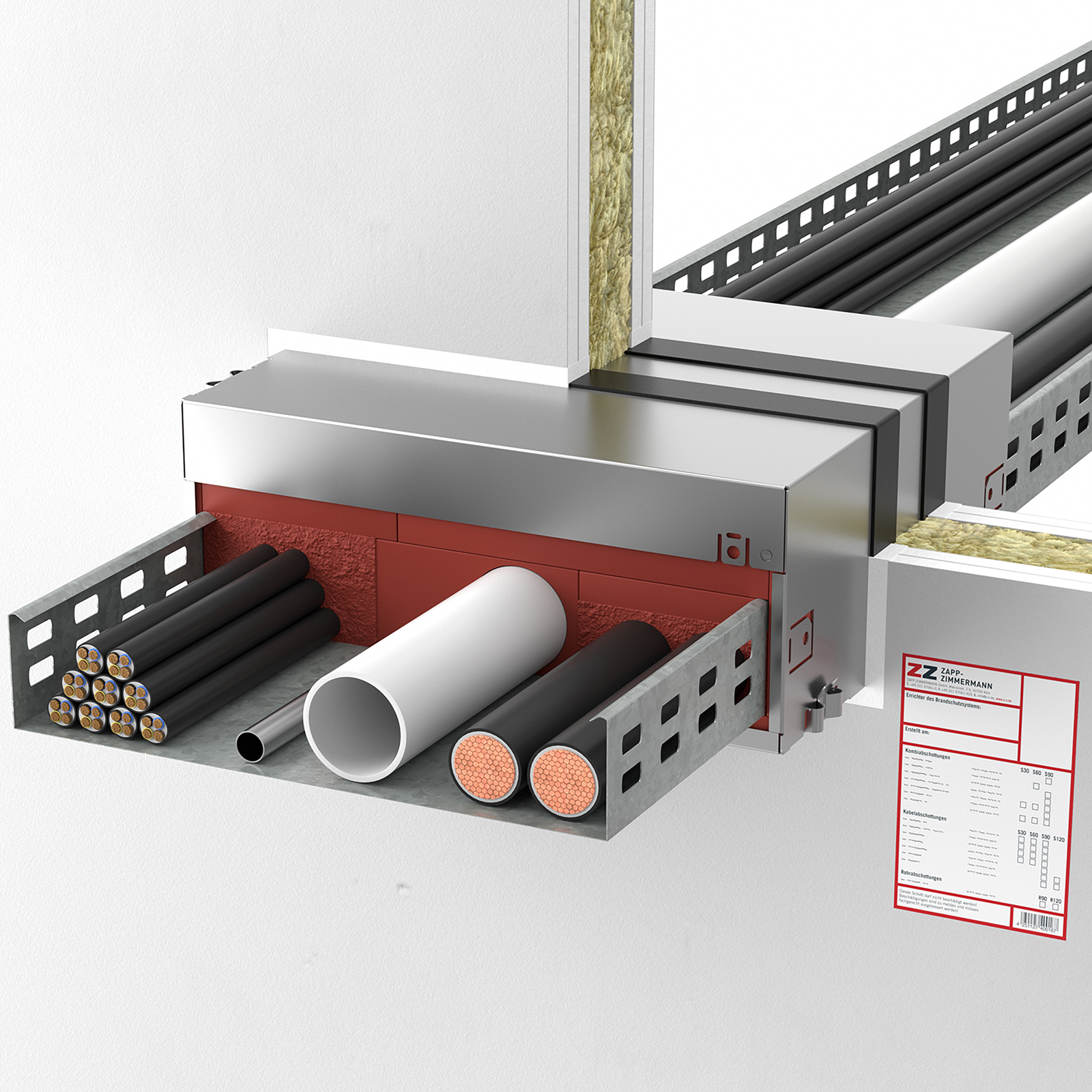

• Lightweight partition walls, d ≥ 10 cm

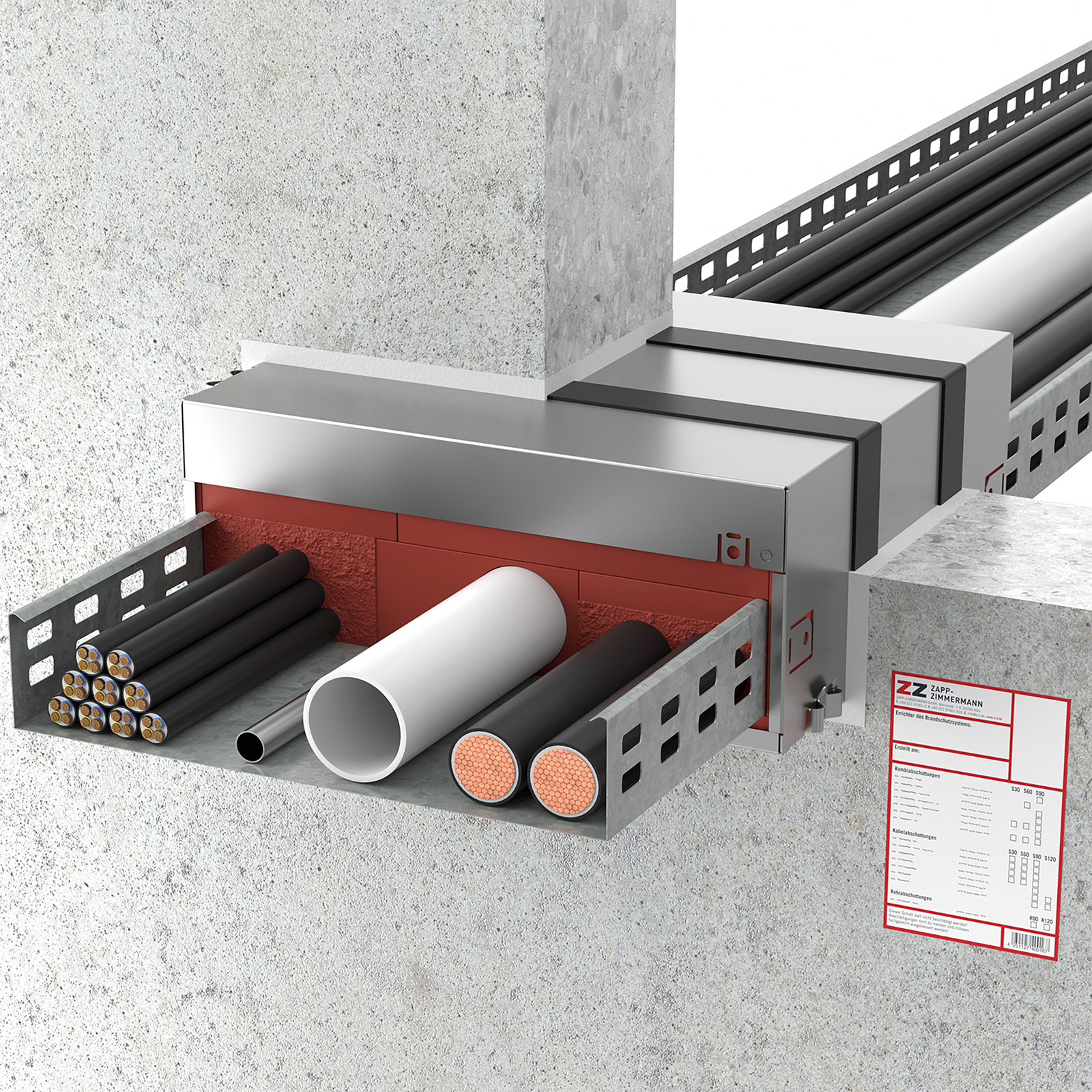

• Solid walls, d ≥ 10 cm
• Solid ceilings, d ≥ 15 cm
• Bulkhead thickness, d = 300 mm
• Max. Opening size walls: all-round ≤ 10 mm
• Max. Opening size of ceilings: all-round ≤ 30 mm
• Cables of all types (without internal cavities), ø ≤ 80 mm
• Waveguide cable
• Cable bundles, ø ≤ 100 mm, individual cables ø ≤ 21 mm
• Hydraulic pressure lines "AEROQUIP," ø ≤ 64.3 mm
• "WICU eco", ø ≤ 35 mm + 18 mm insulation
• Air conditioning ducts
• Cable support structures made of steel, aluminum or plastic may be routed through the penetration seal
• EIectro installation pipes, flexible or rigid, made of plastic ø ≤ 63 mm, also as a bundle ø ≤ 100 mm
