ZZ® M30-S90

  • Foam penetration seal
  • Insulation of cables, pipes and combinations
  • 90 minutes fire resistance
  • In lightweight partition walls, solid walls and solid ceilings
  • In angular, round or irregular component openings
Dealer search

Technical details

  • Lightweight partition walls, d ≥ 10 cm
  • Solid walls, d ≥ 10 cm
  • Solid ceilings, d ≥ 15 cm
  • Bulkhead thickness, d ≥ 20 cm
  • Max. Opening size walls: 45 x 50 cm
  • Max. Opening size ceilings: 45 x 45 cm
  • Cables of all types (without internal cavities), ø ≤ 80 mm
  • Cable bundles, ø ≤ 100 mm, individual cables ø ≤ 21 mm
  • Plastic pipes, for liquids
  • Steel, stainless steel, cast steel and copper conduits
  • Cable support structures made of steel, aluminum or plastic may be routed through the penetration seal
  • EIectro installation pipes, rigid, made of plastic, ø ≤ 40 mm, up to 3 pieces in a bundle
  • Mineral wool shells, d ≥ 30 mm,
  • incl. PVC sheathing if required
  • Flexible elastomer foam (FEF)

Areas of use

  • Foam penetration seal
  • Insulation of cables, pipes and combinations
  • 90 minutes fire resistance
  • In lightweight partition walls, solid walls and solid ceilings
  • In angular, round or irregular component openings

Product benefits

  • Flexible for all component opening geometries
  • Wide range of applications
  • No interruption times, thanks to fast setting of the material even with larger openings
  • Can be combined with ZZ® 220-120 fire protection blocks for even faster construction of larger penetration seals

  • ZZ 220-120 Fire protection brick, 200 x 120 x 60 mm
  • ZZ 330 Fire protection foam 380 ml cartridge, 2 x mixer attachment 2K

Please refer to the general type approval for detailed information on the areas of application and design regulations.

Downloads

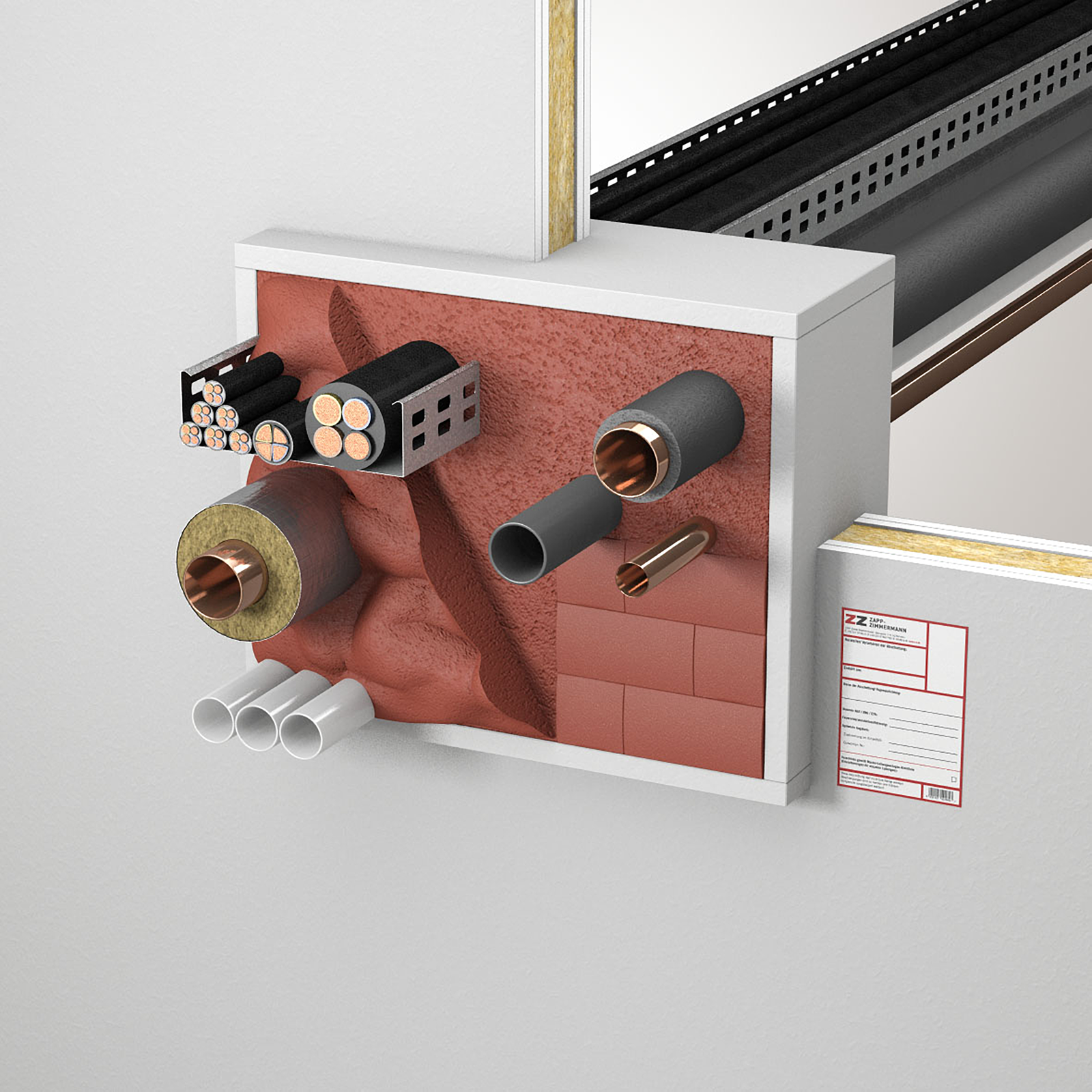

  • Installation situation

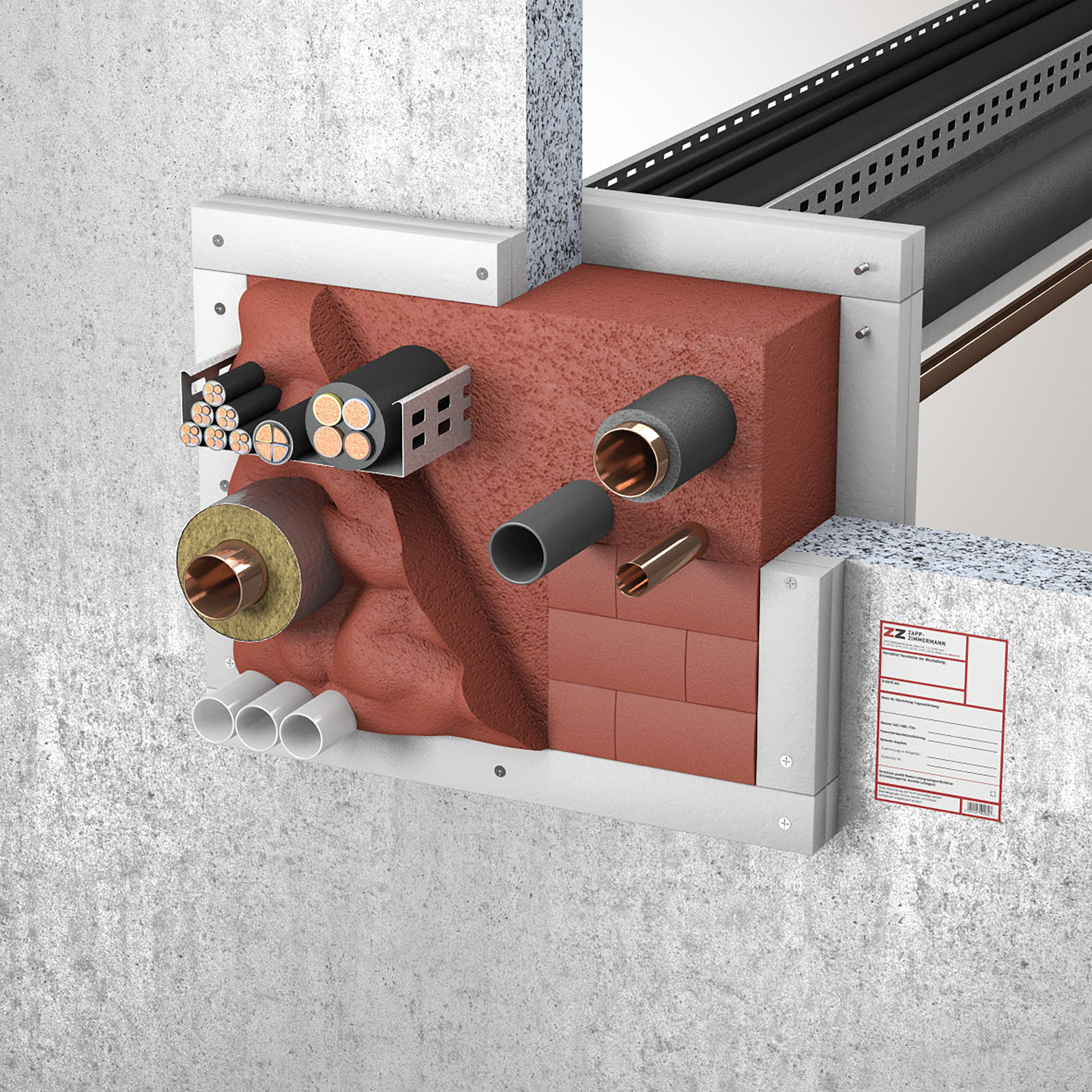

  • Installation situation
